A Compact Home EV Charger solution is becoming essential as the electric vehicle industry grows and expands. A common challenge facing both fleet operators and private owners is: How to achieve commercial-grade high-speed charging without sacrificing valuable space?
This case study showcases how we helped a forward-thinking homeowner overcome this dilemma by integrating powerful commercial-grade charging technology into a Compact Home EV Charger solution.
Our client is a private EV owner with two electric vehicles and a small attached garage. He faced the following key challenges when charging at his residential property:

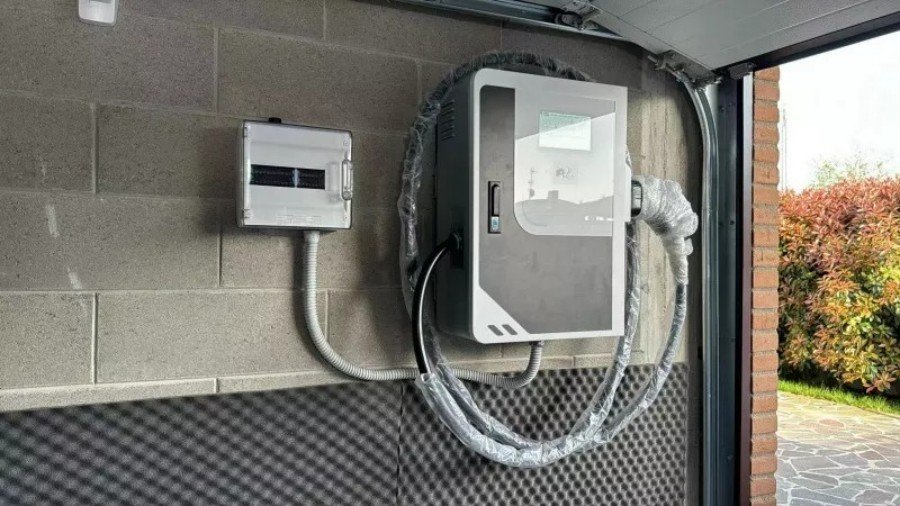

Speed vs. Size: He needed a home EV Charger capable of fast charging to accommodate the schedules of two vehicles. However, the space in his attached garage was extremely limited, making it impossible to fit a bulky, high-speed DC EV Charger.
Home Electrical Infrastructure: His existing home electrical service required an intelligent charger that could safely deliver high power without the risk of overloading or disrupting the use of other household appliances.
After evaluating multiple options, the client chose Penoda’s PDA-20/30/40kW DC Charger—attracted by its unique combination of commercial-grade performance, compact wallbox design, and intelligent load balancing technology that addresses both space and safety concerns
The Penoda PDA-20/30/40kW DC Charger was the perfect answer. It leverages proven, robust commercial-grade technology and packages it into a sleek, ultra-compact design perfectly scaled for residential environments.
| Core Product Features | Value for Your Home |
| Wallbox (Wall-Mounted) Design | Maximizes space efficiency in garages and compact areas. |
| 20-40kW DC Fast Charging | Delivers commercial-grade high-speed charging, significantly reducing charging time. |
| Dynamic Load Balancing (DLB) | Intelligently regulates power to prevent circuit overload, ensuring home electrical safety. |
| OCPP 1.6J + APP + Multi-Connectivity | Supports remote monitoring and management via OCPP protocol, with flexible network connectivity (4G/WIFI/LAN). Learn more about the OCPP standard here. |
| Multi-Standard Compatibility | Works with CCS1, CCS2, and GBT connectors for broad vehicle fit. |
The installation proved that high-performance residential charging is achievable without compromise:
Charging Time Revolutionized: Reduced full charging sessions from overnight AC charging to just 1-2 hours for most daily needs—perfect for families with two EVs, fitting seamlessly into busy family life.
Space Optimized: The slim wall-mounted unit eliminated floor clutter, freeing up space for storage cabinets and easy vehicle parking while keeping the garage organized and fully functional.
Reliable Energy Management: Dynamic Load Balancing technology maintained total home power draw within safe limits, achieving 100% circuit overload prevention.
Significant Cost Savings: Achieved an estimated ~65% reduction in charging cost per kWh compared to using public DC fast charging stations—thanks to lower residential electricity rates and no public charging service fees.
The Penoda PDA-20/30/40kW DC Charger proves that high performance does not have to come at the cost of space.
It points the way for future Home EV charging solutions: a focus on charging efficiency, enhanced safety, and reduced size. This Compact Home EV Charger successfully delivers commercial speed with residential convenience, setting a new benchmark for private EV owners.
