Stand out and power up. The PDA High-Visibility Yellow DC Fast Charger (Available in 20kW, 30kW, 40kW, and 60kW) is designed to catch the eye while delivering relentless commercial-grade power.
Beyond its striking aesthetics, this smart station is built upon extremely durable hardware and a ruggedized exterior. Featuring intelligent network management (WiFi/4G/App) and universal plug compatibility, it is the ultimate high-performance charging asset for demanding factory floors, bustling hotel parking lots, and 24/7 commercial fleets.
Commercial EV Charger
OCPP1.6J+APP+4G+WIFI+LAN Port
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
European Standard (CE)
Top DC AC EV Charger Factory
Striking Design Meets Industrial-Grade Performance
Maximize your property’s visibility and charging efficiency simultaneously. Our yellow commercial DC EV chargers are engineered for locations that demand both aesthetic appeal and hardcore reliability. The vibrant color serves as a clear visual marker in expansive public parking lots or serves as a safety-compliant fixture within industrial manufacturing zones.
Ranging from a highly efficient 20kW and 30kW setup to a rapid 40kW and 60kW configuration, these stations are meticulously crafted to handle continuous, heavy-duty usage. By integrating seamless smart technology with indestructible physical protection, we provide a charging solution that not only draws EV drivers to your business but guarantees years of faultless operation.
Ultra-Slim Form Factor: With a depth of only 150mm, the PDA series offers a powerful DC fast-charging solution that saves critical space in parking garages and narrow driveways.
Versatile Power Scaling: Available in 20kW, 30kW, and 40kW outputs, providing the flexibility to match your existing electrical capacity while delivering significantly faster charging than AC stations.
Dual-Mounting Flexibility: Engineered for versatility; choose between a space-saving Wall-mount or a professional standalone Pedestal installation.
Commercial-Grade Durability: Featuring IP55 and IK10 ratings, this station is built to withstand high-traffic use and harsh outdoor elements, ensuring long-term reliability for business owners.
Seamless Smart Operation: Integrated with OCPP 1.6J for remote management, featuring Plug & Charge and RFID authentication for a premium user experience.
| Parameter | Specification |
| DC Output Power | 20kW / 30kW / 40kW (High-efficiency output) |
| Charging Connector | IEC 62196 CCS 2 (Premium fast-charge cable) |
| Input Power Supply | 230VAC / 400VAC ± 20%, 50/60Hz |
| Grid Compatibility | TN / TT / IT Earthing Systems |
| Safety Intelligence | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature |
| Energy Metering | Standardized precision metering (±2% Accuracy) |
| Parameter | Specification |
| Dimensions (WHD) | 650 * 450 * 150 mm (Ultra-compact depth) |
| Net Weight | 65 kg (Robust industrial build) |
| Environmental Rating | IP55 (Waterproof) & IK10 (Vandal-resistant) |
| Operating Conditions | -30°C to 55°C (Smart derating) | Altitude up to 2500m |
| Mounting | Wall-mounted or standalone pedestal |
| Parameter | Specification |
| Communication | WiFi / 4G / Ethernet |
| User Authentication | RFID Card, Mobile App, and Plug & Charge |
| Smart Protocol | OCPP 1.6 JSON (CMS & Backend Ready) |
| Remote Maintenance | OTA (Over-the-Air) via App and OCPP |
| HMI Interface | Branded Logo LED & Multi-color Status LED indicators |
| Usage Locations | Public Charging Stations |
| Shopping Malls and Retail Areas | |
| Workplaces and Office Complexes | |
| Rest Stops and Highway Service Areas | |
| Residential Areas | |
| Commercial Fleets and Logistics Centers | |
| EV Charging Hubs | |
| Hotels and Tourist Destinations | |
| Public Parking Lots and Garages | |
| Car Dealerships and Showrooms | |
| Maximum Power | 20kw/42A 400VAC±15%；30kW/60A 400VAC±15%;40kW/80A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 650*450*150mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Balancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.

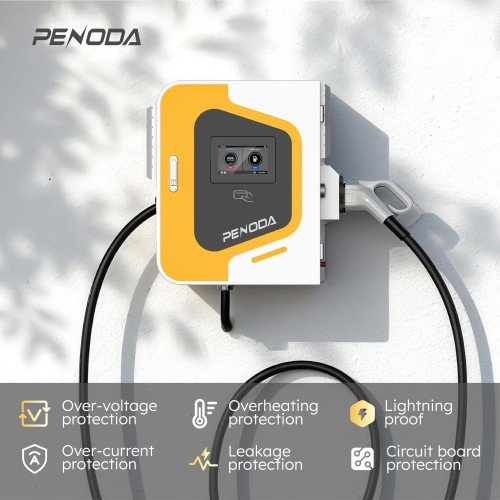

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Premium Capabilities & Hardcore Engineering
High-Impact Hard Shell & Heavy-Duty Hardware: Engineered to defy the elements. Encased in a hyper-durable, extremely hard outer shell (IP55/IK10 rated), the robust internal hardware is built to withstand severe weather, accidental impacts, and the harsh realities of factory and outdoor fleet environments.
Developed by Our In-House R&D Experts: Quality that originates from the source. Unlike generic assembled models, this unit is powered by proprietary technology developed entirely by our own R&D team. This guarantees lightning-fast OTA software updates, exceptional system stability, and highly responsive technical support.
Smart Remote Management (App, 4G, WiFi): Take command of your charging network. Embedded with cutting-edge WiFi, 4G, and Ethernet connectivity, operators can effortlessly monitor diagnostics and manage OCPP 1.6J billing via the cloud. Meanwhile, EV drivers enjoy a highly intuitive, self-service charging experience using a dedicated mobile App or RFID tag.

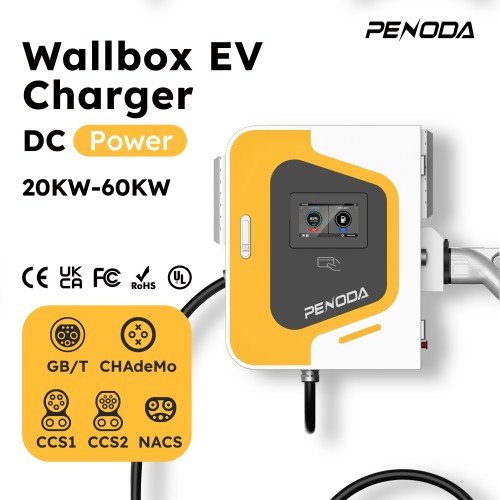

Comprehensive Plug Compatibility: Ready for any EV on the road. We equip this station with highly adaptable plug standards (including CCS1, CCS2, GB/T, and CHAdeMO), ensuring that every commercial vehicle or hotel guest can plug in securely without compatibility anxiety.
Enhanced Visual Safety & Thermal Efficiency: The high-contrast yellow design enhances spatial awareness in busy commercial hubs. Internally, advanced thermal regulation ensures the hardware remains cool and efficient, operating with minimal noise even at peak 60kW output.
Ideal Commercial & Industrial Deployments
Factories & Industrial Manufacturing: The vibrant yellow housing perfectly aligns with industrial safety visibility standards. Its incredibly hard shell and durable hardware make it the only logical choice for surviving the tough, demanding environment of factory logistics zones.
High-Traffic Retail & Public Parking: Turn your parking lot into a magnet for EV owners. The striking design acts as a visual beacon, drawing drivers to your property while they shop or dine.
Hotels & Luxury Resorts: Enhance your guest services with a premium, App-controlled charging amenity. The universal plug standards guarantee that international and local guests alike can charge their vehicles effortlessly overnight.
24/7 Commercial Fleets: Keep your operational vehicles moving. With scalable 30kW to 60kW options and smart 4G/WiFi tracking, fleet supervisors can precisely monitor charging statuses, while the heavy-duty build withstands non-stop, daily usage.
DC EV Charger (20kW / 30kW / 40kW)
Preparation & Current Capacity:
Verify the power supply supports 380VAC ± 15% (50/60Hz). Ensure the electrical infrastructure meets the following rated input current requirements:
20kW Model: Minimum 37A
30kW Model: Minimum 60A
40kW Model: Minimum 80A
Mounting:
Secure the charger to a load-bearing wall using the provided backplate or install it on a dedicated floor-mount pedestal.
Electrical Wiring:
With the main power OFF, connect the input cables (L1/L2/L3/N/PE). Ensure all terminals are tightened securely and the PE (Earth) wire is solidly grounded.
Network Configuration:
Connect the unit via WiFi, 4G, or Ethernet to enable OCPP 1.6J backend management and APP control features.
Commissioning:
Ensure the Emergency Stop button is released. Switch on the circuit breaker. Once the LED status indicates "Ready," initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified electrician in accordance with local electrical codes and safety regulations.
We provide highly scalable solutions tailored to your business needs, offering 20kW, 30kW, 40kW, and 60kW DC fast charging configurations. Whether you need steady overnight power for a hotel or rapid top-ups for a commercial fleet, we have the exact capacity required.
Absolutely. Beyond its striking, safety-compliant yellow aesthetic, the unit is protected by an ultra-rugged hard shell (IP55/IK10 ratings). The highly durable hardware underneath is specifically engineered to survive physical impacts, severe weather, and the demanding conditions of industrial manufacturing hubs.
Yes. We equip our stations with comprehensive and customizable plug standards (including CCS1, CCS2, GB/T, and CHAdeMO). This guarantees absolute compatibility for any EV brand operating within your 24/7 fleet or visiting your retail property.
The station delivers complete operational control through advanced smart connectivity (WiFi, 4G, and Ethernet). Facility operators can monitor real-time metrics remotely via the OCPP cloud backend, while EV drivers enjoy a seamless, self-service charging experience using a dedicated mobile App or RFID scanning.
Quality and reliability straight from the source. This charger is entirely developed and backed by our own dedicated in-house R&D team. This ensures you receive proprietary technology, superior software stability, continuous OTA (over-the-air) upgrades, and direct technical support tailored to your commercial needs.
