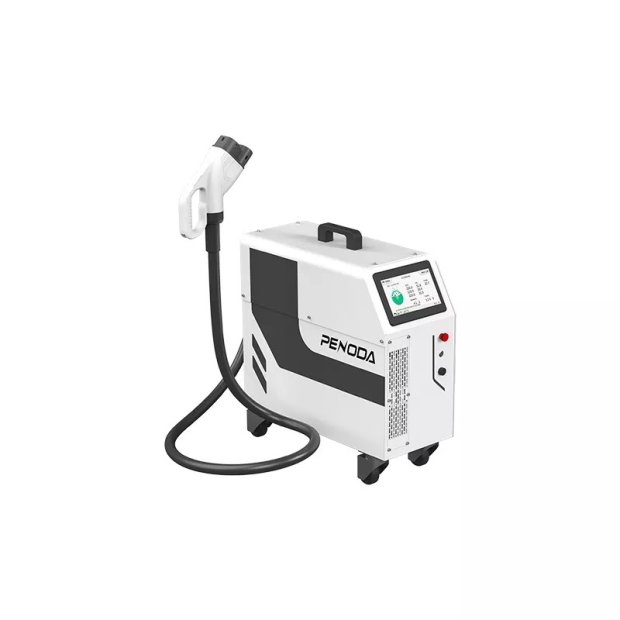

The 20kW Energy Storage EV Charging Station combines cutting-edge bi-directional V2G technology with user-friendly features to provide a versatile and secure charging experience. Ideal for both homeowners and commercial users, this charger not only charges your electric vehicle but also allows energy to flow back to the grid or your home, offering significant savings and energy optimization.
v2g ev charger
Mobile charging vehicle
OCPP1.6J+APP
CCS1/CCS2/GBT/ChadeMO
RFID
4G/WIFI
fast charge
IP54 IK10
E-stop button
PDV2G-20: Advanced Bi-Directional V2G Charging Solution.

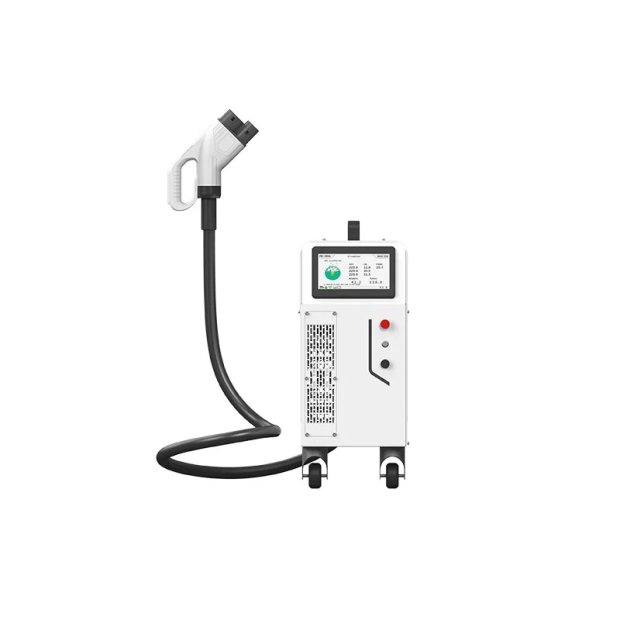

The PDV2G-20 represents the next generation of energy management, featuring an intuitive 4.3-inch touchscreen for seamless real-time monitoring.
| Parameter | Specification |
| Rated Power Output | 20kW (Bi-directional support) |
| Input Voltage Range | AC 260V – 530V |
| Output Voltage Range | DC 200V – 750V |
| Output Current | 0 – 50A |

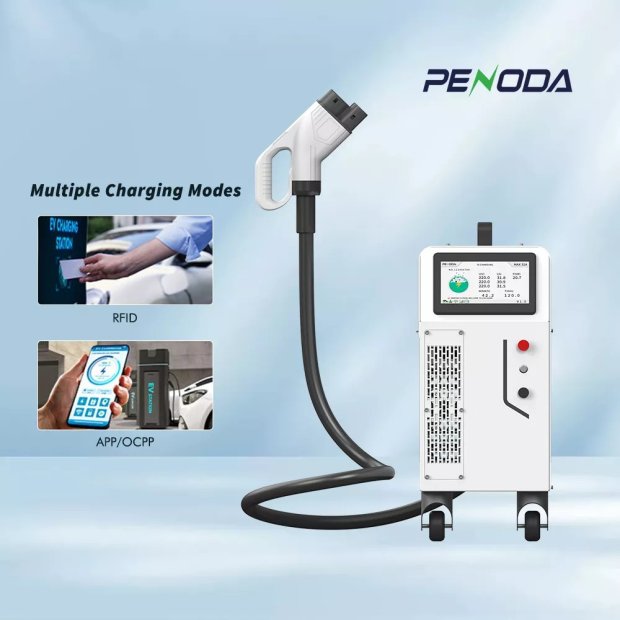

| Charging Cable | 5M Standard (Customizable lengths available) |
| Energy Metering | High-precision billing grade (±2% Accuracy) |
| Electrical Protection | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature Protection |
| Parameter | Specification |

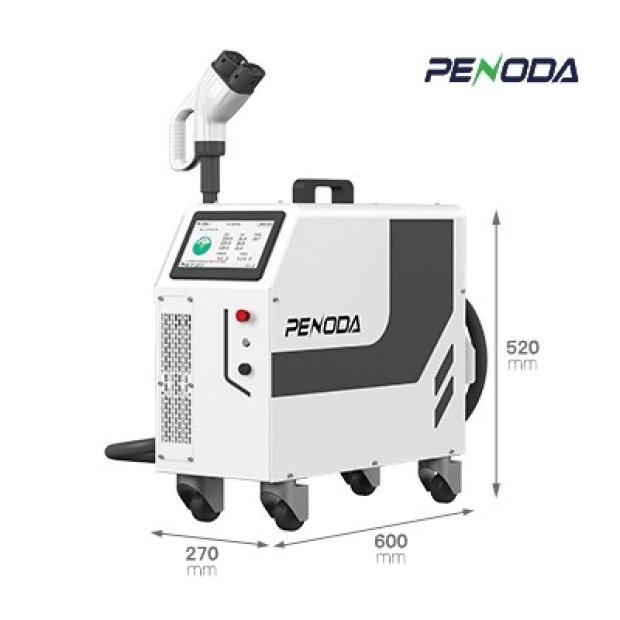

| Dimensions (WDH) | 540 * 210 * 520 mm |
| Net Weight | 35 kg (Industry-leading compact design) |
| Operating Temperature | -10°C to 60°C (with intelligent derating mechanism) |
| Protection Rating | IP54 (Environmental) & IK10 (Impact) |
| Installation | Suitable for Indoor and Outdoor environments |
| Parameter | Specification |
| Network Interface | WiFi / 4G / Ethernet |
| HMI & Display | 4.3-inch Touchscreen with Logo & Status LEDs |
| Communication Protocol | OCPP 1.6 JSON (CMS Ready) |
| User Authentication | RFID Card, Mobile App, Plug & Charge, and Password Access |
| Firmware Management | OTA (Over-the-Air) upgrades via App or OCPP |
| Product model | PDV2G-20 |
| Input voltage | AC260V-530V |
| Rated power | 20kW |
| Output voltage | DC200V-750V |
| Output current | 0-50A |
| Charging gun line | 5M(customizable) |
| LCD | 4.3-inch touch screen |
| Charging mode | Touch startup (password) |
| DC Charging gun | GBT(CCS1/CCS2/ChadeMO) |
| Size | 540*210*520mm |
| Weight | 35KG |
| Working temperature | -10℃~60℃ |
| Protection grade | IP54 |

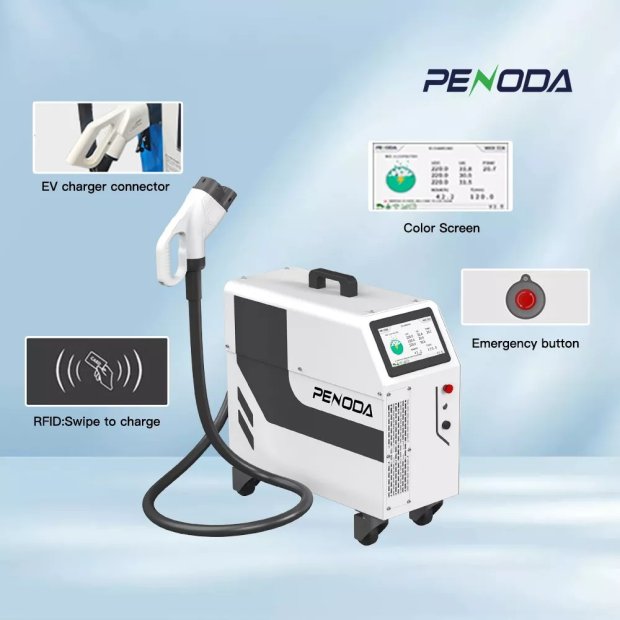

V2G Bi-Directional Technology: Not only charges your EV but also enables energy feedback from the vehicle back to the grid or home, optimizing energy costs.
Global Compatibility: Multi-standard support (GBT, CCS1, CCS2, CHAdeMO) for seamless operation with diverse EV models.
Intuitive Interaction: Features a high-definition 4.3-inch color touchscreen with password-protected touch startup for secure and easy operation.
Ultra-Lightweight Design: Weighing only 35kg, it offers a high power-to-weight ratio, making it easier to install and maintain than traditional DC stations.
Rugged & Reliable: IP54 and IK10 rated for versatile indoor and outdoor deployments, capable of withstanding extreme temperatures up to 60°C.
An Energy Storage EV Charger is a charging system that combines energy storage capabilities with electric vehicle (EV) charging. It stores excess energy in high-capacity batteries and uses this stored energy to charge EVs efficiently.
The charger stores energy during off-peak hours or from renewable sources like solar and wind. When an EV is connected, the stored energy is used to charge the vehicle, reducing strain on the power grid and potentially lowering energy costs.
Yes, Energy Storage EV Chargers are designed to work with renewable energy sources like solar and wind power, allowing you to store green energy and use it to charge your EV.
Installation can vary based on the specific model and location. It is recommended to have a professional install the system to ensure it meets all safety and operational standards.
Charging times depend on the battery capacity of the EV and the power output of the charger. However, Energy Storage EV Chargers are typically faster due to their ability to store and deliver energy efficiently.
