Intelligent Power for Modern Commercial Destinations
Redefine your parking infrastructure with the Smart 20kW/30kW/40kW Commercial DC Charger. Engineered for intelligent energy management, this advanced Level 2/Level 3 hybrid station is the perfect fit for corporate workplaces, retail centers, and eco-conscious commercial properties.
Manufactured in our TUV and ISO certified factory, it features cutting-edge Solar-Ready technology and Dynamic Load Balancing (DLB). Housed in a rugged IP55 metal enclosure, it provides secure OCPP 1.6J (TLS 1.2) connectivity, a vivid interactive touch screen, and frictionless smart access, making it the ultimate scalable solution for global OEM/ODM partners.
Commercial EV Charger
OCPP1.6J+APP+4G+WIFI+LAN Port
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
European Standard (CE)
Top DC AC EV Charger Factory
Bridging Sustainability and Rapid Charging
In today's commercial landscape, facility managers face the dual challenge of providing rapid EV charging while managing strict grid capacities. The Smart 20-40kW DC Series was developed by our proprietary R&D team to solve exactly this. By offering flexible power outputs of 20kW, 30kW, or 40kW, operators can perfectly match the charging speed to the typical 1-to-3-hour dwell times of their customers or employees.
Next-Generation Energy ManagementWhat truly sets this station apart is its "Smart" ecosystem. Equipped with advanced Dynamic Load Balancing (DLB), it actively monitors your building's power consumption, automatically adjusting the EV charger's output to prevent grid overload and costly peak demand charges. Furthermore, its Solar-Ready architecture allows forward-thinking businesses to integrate renewable energy sources, significantly lowering long-term OPEX while maximizing sustainability.
Charging mode:PDA
Charging connector:lEC 62196 CCS 2 cable
DC power output:20KW/30KW/40KW
Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Via App
Power supply:230/400VAC ± 20%, 50/60Hz
TN/TT/IT
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Energy metering :±2% Accuracy
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：650*450*150mm
Weight:65kg
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON upgrade:OTA via App, OCPP
| Usage Locations | Public Charging Stations |
| Shopping Malls and Retail Areas | |
| Workplaces and Office Complexes | |
| Rest Stops and Highway Service Areas | |
| Residential Areas | |
| Commercial Fleets and Logistics Centers | |
| EV Charging Hubs | |
| Hotels and Tourist Destinations | |
| Public Parking Lots and Garages | |
| Car Dealerships and Showrooms | |
| Maximum Power | 20kw/42A 400VAC±15%；30kW/60A 400VAC±15%;40kW/80A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 650*450*150mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Balancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.

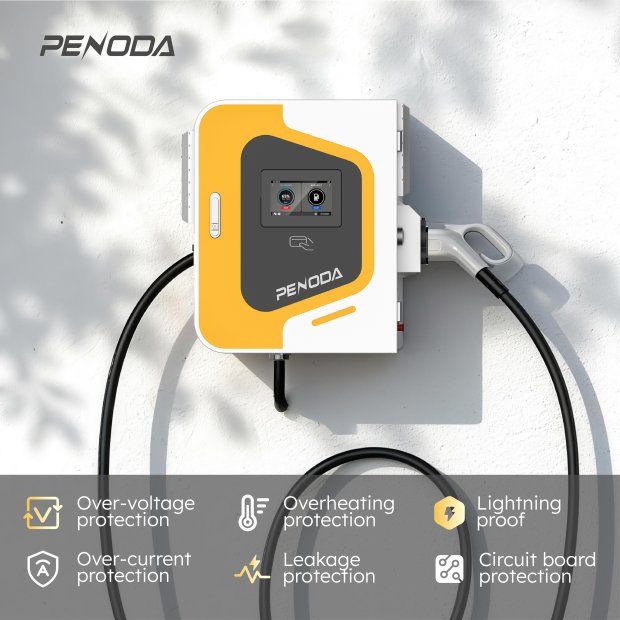

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
1. Scalable Smart Power (20kW/30kW/40kW): Tailor your investment. Choose the exact power output that aligns with your facility's electrical capacity and your customers' average parking duration.
2. Dynamic Load Balancing (DLB): Protect your electrical infrastructure. The smart charger automatically distributes available power intelligently, ensuring multiple vehicles can charge safely without triggering facility-wide power outages.
3. Eco-Friendly Solar-Ready Integration: Designed for the future. Seamlessly integrate with commercial solar panel arrays and battery storage systems to deliver clean, green energy directly to electric vehicles.
4. Rugged IP55/IK10 Metal Enclosure: Unlike standard plastic models, this heavy-duty metal shell guarantees extreme durability against severe weather and physical impacts, ensuring a pristine appearance for years.
5. 100% In-House R&D & Custom OEM: Produced entirely in our TUV/ISO certified factory. We empower B2B brands with comprehensive OEM and ODM customization, from exterior branding to UI design.
6. Frictionless Access & Enterprise Security: Users can initiate charging via RFID, NFC, QR Code scanning, APP, or ISO 15118 Plug & Charge. Operators maintain complete control via OCPP 1.6J with bank-grade TLS 1.2 encryption for secure remote diagnosis and OTA updates.
Corporate Workplaces: Provide a high-value perk for employees. The 20kW-40kW range is the mathematical sweet spot for delivering a full charge during a standard 8-hour workday without stressing the office building's grid.
Retail & Supermarkets: Transform your parking lot into a profit center. Keep customers shopping longer while their vehicles receive a rapid, reliable charge over a 1-to-2-hour visit.
Eco-Friendly Business Parks: Leverage the Solar-Ready capabilities to build a zero-emission charging hub that aligns perfectly with corporate ESG (Environmental, Social, and Governance) goals.
DC EV Charger (20kW / 30kW / 40kW)
Preparation & Current Capacity:
Verify the power supply supports 380VAC ± 15% (50/60Hz). Ensure the electrical infrastructure meets the following rated input current requirements:
20kW Model: Minimum 37A
30kW Model: Minimum 60A
40kW Model: Minimum 80A
Mounting:
Secure the charger to a load-bearing wall using the provided backplate or install it on a dedicated floor-mount pedestal.
Electrical Wiring:
With the main power OFF, connect the input cables (L1/L2/L3/N/PE). Ensure all terminals are tightened securely and the PE (Earth) wire is solidly grounded.
Network Configuration:
Connect the unit via WiFi, 4G, or Ethernet to enable OCPP 1.6J backend management and APP control features.
Commissioning:
Ensure the Emergency Stop button is released. Switch on the circuit breaker. Once the LED status indicates "Ready," initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified electrician in accordance with local electrical codes and safety regulations.
DLB is a critical smart feature. It constantly monitors your building's total energy usage. If the building's power demand spikes (e.g., HVAC systems turn on), the charger automatically reduces its output to prevent overloading your electrical panel. This avoids expensive grid upgrades and peak demand penalties.
Our proprietary software and hardware architecture is designed to seamlessly handshake with commercial solar energy management systems. This allows facility operators to route self-generated, renewable solar power directly into the EV charger, maximizing green energy usage and lowering electricity costs.
It depends on your grid capacity and user dwell time. 20kW is excellent for workplaces where cars park for 4+ hours. 30kW and 40kW provide faster turnarounds, making them ideal for retail centers or restaurants where customers typically stay for 1 to 2 hours.
Absolutely. As a direct source manufacturer with a TUV and ISO certified factory, we offer extensive OEM and ODM services. You can customize the heavy-duty IP55 metal enclosure's color and branding to match your corporate identity perfectly.
The station features a vibrant interactive touch screen and supports a full matrix of frictionless start options: RFID cards, NFC, smart APPs, QR Code scanning, and futuristic Plug & Charge. All backend communications are strictly secured by OCPP 1.6J and TLS 1.2 encryption.
