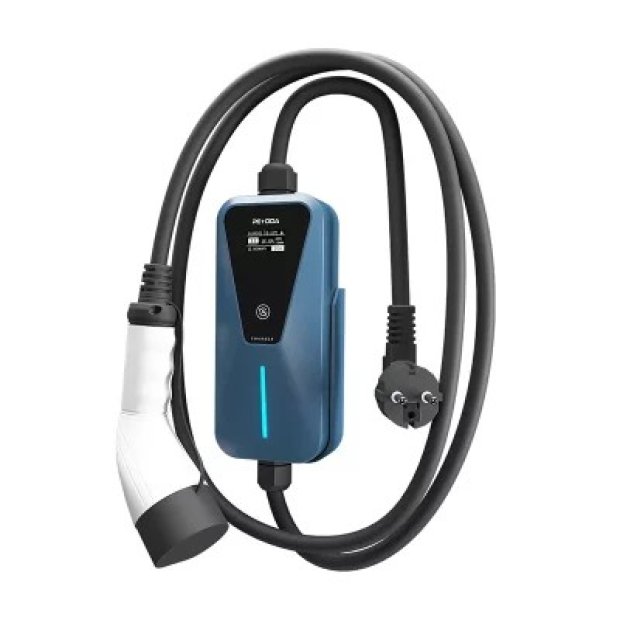

The 3.5kW Portable Electric Vehicle Charger is designed as an entry-level charging solution for everyday EV users who need simple, reliable, and portable AC charging. With a compact form factor and automated operation, it is ideal for home use, emergency charging, and travel scenarios.
Portable Electric Vehicle Charger
Type 2/Type1/GBT
Current Adjustable
Touch Button
IP67 IK10
The PAD-3.5kW Portable EV Charger is a refined, compact solution engineered for the modern EV lifestyle. Delivering a steady 3.5kW AC output, it provides the ultimate convenience for daily top-ups whether at home, the office, or on the road. Designed with universal compatibility in mind, the PAD series seamlessly pairs with a wide array of EV models. Its lightweight form factor is matched by a robust suite of integrated safety protocols, offering owners a secure and worry-free charging experience without compromising on portability.
Charging Mode: PAD (Portable / Entry Series)
Charging Connector: IEC 62196 Type 2 or Type 1 (Tethered cable)
AC Power Output: 230V AC ± 20%, 50/60 Hz (Max. 3.5 kW)

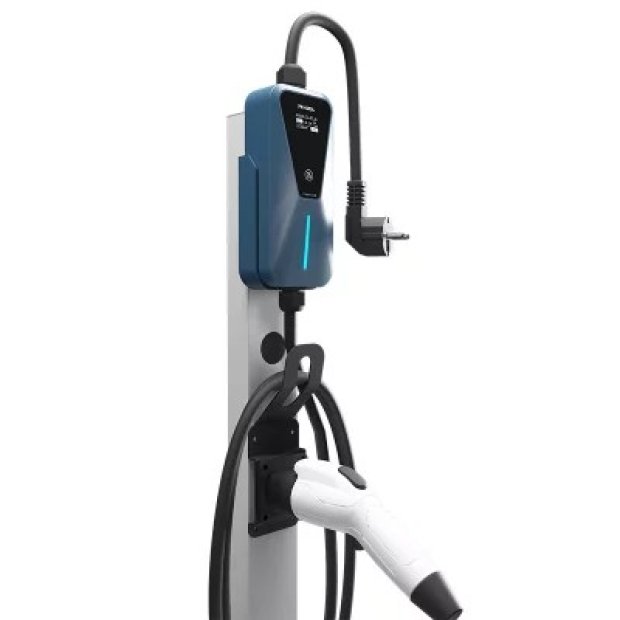

Mounting Options: Portable (Optional wall-mount bracket or pedestal)
HMI (Interface): Brand Logo LED & Multi-color Status LED
Charging Control: Plug & Play (Automated operation)
Input Voltage: 230V AC ± 20% (Single-phase)
Grid Frequency: 50/60 Hz
Earthing Systems: TN / TT / IT
Comprehensive Safety: Under Voltage (UVP), Over Voltage (OVP), Overcurrent (OCP), Relay Stuck Protection, Over-temperature Protection
Energy Metering: Integrated metering with ±2.0% accuracy
Operating Temperature: -30°C to 55°C (with intelligent thermal derating)
Operating Altitude: Up to 2,500 m
Ingress & Impact Protection: IP65 (Dust/Waterproof), IK10 (Impact Resistance)
Installation Environment: Suitable for Indoor and Outdoor use

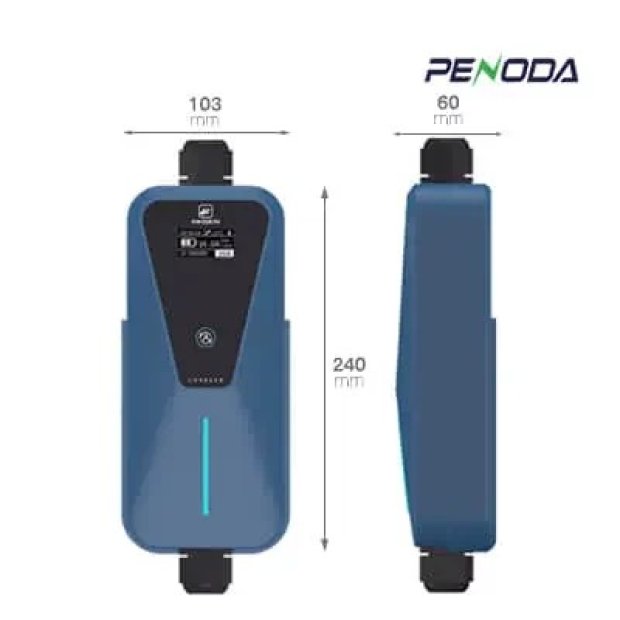

Dimensions (H×W×D): 240 × 103 × 60 mm (Ultra-compact design)
Weight: 3.8 kg (Including cable)
Safety & Charging: IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2
EMC Standards: * Immunity/Emission: EN 61000-6-1/2/3/4
Limits/Harmonics: EN 61000-3-2/3/11/12
Wireless Standards (RED): EN 300 328 V2.1.1, EN 300 330 V2.1.1
| Maximum Power | 240kw/480A 400VAC±15% |
| Connector | Type2/Type1/GBT |
| Dimension (H*W*D) | 240*103*60 mm |
| Display | LED 1.54″ touch |
| Installation | Portable/Wall-mount |
| Certification | CE |
| Ingress Protection | IP67,IK10 |
| Dynamic Load Blancing | Solar Charging |
Scheduled Charging: Within the Main Menu, the timed charging function allows you to pre-set your start time using the physical buttons. This feature enables you to take advantage of off-peak electricity rates, reducing your energy costs and supporting a more sustainable, eco-friendly lifestyle.

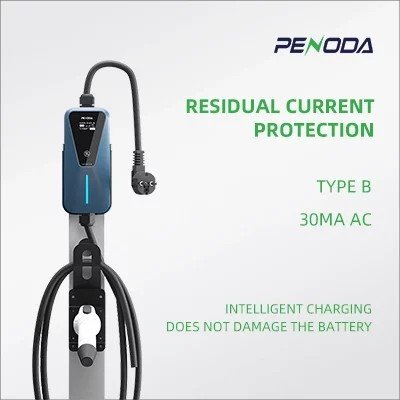

Integrated RCD (AC 30mA): The high-sensitivity Residual Current Device (RCD) provides instantaneous detection of abnormal leakage currents, swiftly isolating the power supply to prevent electric shock incidents. Engineered in strict accordance with international safety standards, the system ensures reliable protection and consistent user peace of mind.
Industrial-Grade Protection (IP67 & IK10)
Features an IP67 waterproof/dustproof rating and IK10 impact resistance. This ensures stable operation in harsh outdoor environments and extreme weather, offering durability that exceeds industry standards.
Smart Touch Interface & Display
Equipped with a 1.54-inch LED touch screen, allowing users to monitor charging data in real-time. It supports a scheduled charging function, enabling users to charge during off-peak hours to save on electricity costs.

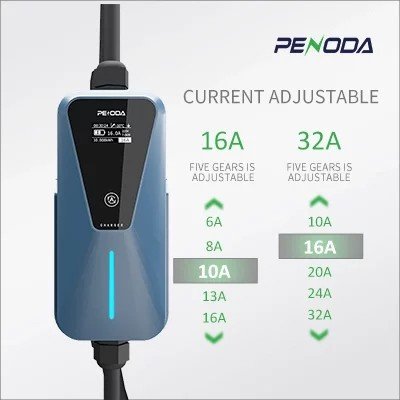

Adjustable Current for Flexibility
The charging current can be adjusted via touch buttons to match different household power limits, preventing circuit overloads while traveling.
Comprehensive Safety System
Built-in AC30mA RCD (Residual Current Device) for leakage protection. It also includes over-voltage, under-voltage, over-current, and over-temperature protections to ensure a secure charging experience.

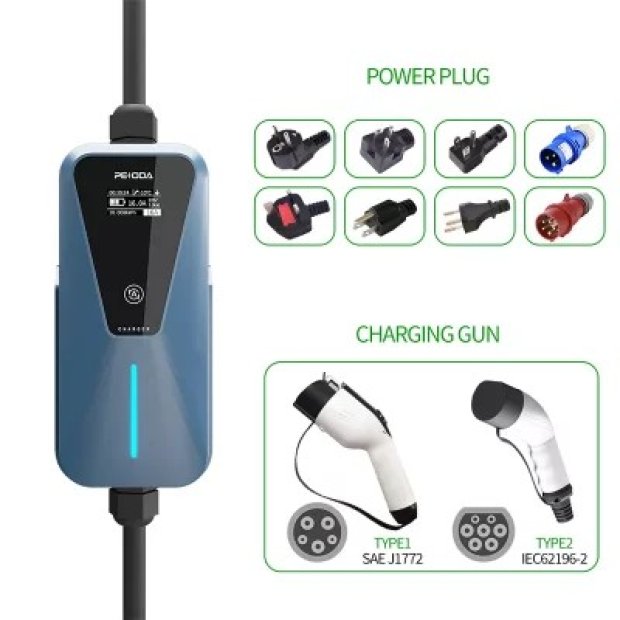

Compact & Universal
Available with Type 2, Type 1, or GBT connectors. Its lightweight design (approx. 3.8kg) makes it the perfect travel companion for EV owners.
1. Electrical Verification
Voltage: 230VAC ± 20%.
Current: Requires a 16A dedicated circuit. Ensure the wall outlet and wiring (min. 2.5mm²) can handle a continuous 16A load.
2. Mounting (Optional)
Portable: Use directly as a mobile charging cable.
Fixed: Use the complimentary expansion bolts to secure the unit to a wall in a ventilated area.
3. Connection
Step 1: Plug the power connector into a standard, grounded 16A household outlet.
Step 2: Adjust the charging current or set a timer via the touch screen if needed.
Step 3: Plug the Type 2 / Type 1 / GBT connector into the vehicle charging port.
4. Operation
Charging starts automatically once the screen shows "Ready" and the car is connected.
To stop, disconnect the vehicle connector first, then unplug from the wall.
Note: Ensure the outlet is properly earthed (PE). Do not use with extension cords or damaged sockets.
Yes, there are portable chargers available for electric cars. These portable chargers are designed to be lightweight, compact, and easy to transport, allowing electric vehicle (EV) owners to charge their vehicles in various locations, such as at home, work, or on the go.
Yes, there are portable electric car chargers available on the market. These chargers are typically smaller and more lightweight compared to standard home or public chargers. They are designed to be easily transported and used in various locations, providing convenience for electric vehicle (EV) owners who may need to charge their cars away from home.
while it is technically feasible to charge an EV with a portable power station, it may not be as fast or convenient as using dedicated EV charging infrastructure. Portable power stations are more suitable for emergency situations, off-grid charging needs, or as a backup option rather than regular EV charging. Always check the specifications of both your EV and the portable power station to ensure compatibility and safety.
It’s important to note that these times can vary significantly based on the specific portable charger, the EV model, and the conditions of use. Always refer to the manufacturer’s specifications for your EV and charger to get more accurate estimates.
