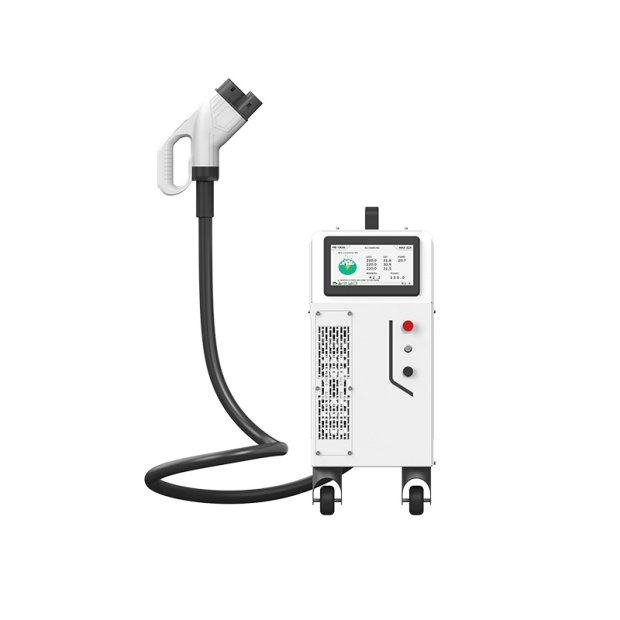

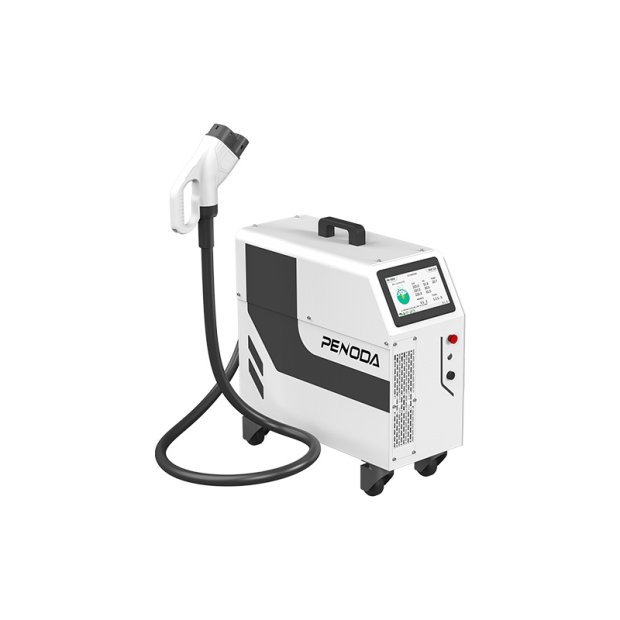

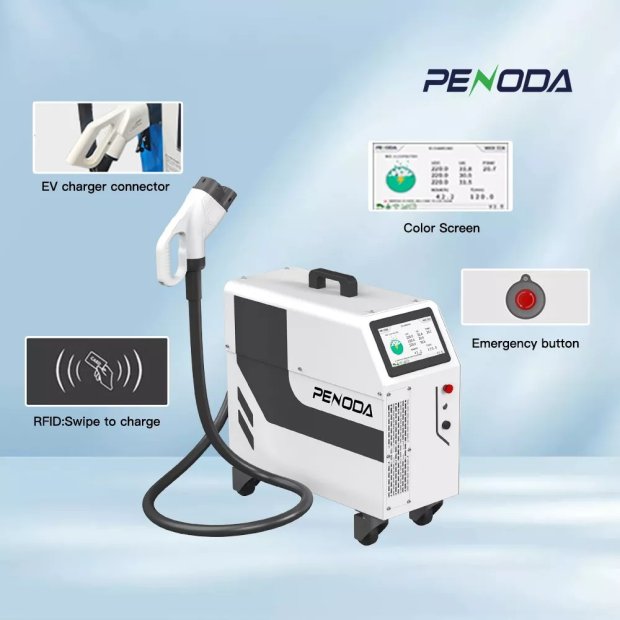

The PENODA Portable EV Charging Station (PPDA Series) is a versatile, high-performance DC charging solution designed for mobile, temporary, and emergency applications. Available in 20kW, 30kW and 40kW power options, this station delivers reliable, fast DC charging wherever it’s needed — from event sites and fleet depots to roadside assistance and remote job sites.
Built with mobility and durability in mind, the PENODA portable charger combines advanced connectivity, smart control, and robust safety protections to support a seamless EV charging experience on the go.
Portable EV Charging Station
Mobile DC charging vehicle
OCPP1.6J+APP+DLB
CCS1/CCS2/GBT
4G/WIFI/RFID
7 inch touch screen
fast charge
IP55 IK10
E-stop button
European Standard (CE)
The PPDA series offers a high-performance yet compact charging solution, delivering up to 40kW of power in a highly mobile form factor. Engineered for maximum versatility, it is the ideal choice for roadside assistance, event organizers, and temporary site testing. With its plug-and-play setup, intuitive interface, and rigorous safety monitoring (including OCP and thermal management), the PPDA series ensures rapid and secure energy delivery whenever and wherever it’s needed most.
| Parameter | Specification |
| DC Power Output | 20kW / 30kW / 40kW (Scalable options) |
| Charging Connector | IEC 62196 Type 2 (CCS2 compatible) |
| Input Power Supply | 230V / 400V AC ±20% |
| Grid Frequency | 50 / 60 Hz |
| Earthing Systems | TN / TT / IT Supported |
| Safety Protection | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature Monitoring |
| Metering Accuracy | ±2% High-precision energy metering |
| Parameter | Specification |
| Dimensions (WDH) | 600 * 270 * 520 mm (Optimized for mobility) |
| Operating Temperature | -30°C to 55°C (with smart derating mechanism) |
| Operational Altitude | Up to 2500m |
| Environmental Rating | IP55 (Dust/Waterproof) & IK10 (Impact Resistant) |
| Parameter | Specification |
| Communication Interface | WiFi / 4G / Ethernet |
| Backend Protocol | OCPP 1.6 JSON (Ready for CMS integration) |
| User Authentication | RFID Card, App, and Plug & Charge |
| System Maintenance | OTA (Over-the-Air) upgrades via App or OCPP |
| Maximum Power | 20kw/42A 400VAC ; 30kw/60A 400VAC；40kW/80A 400VAC |

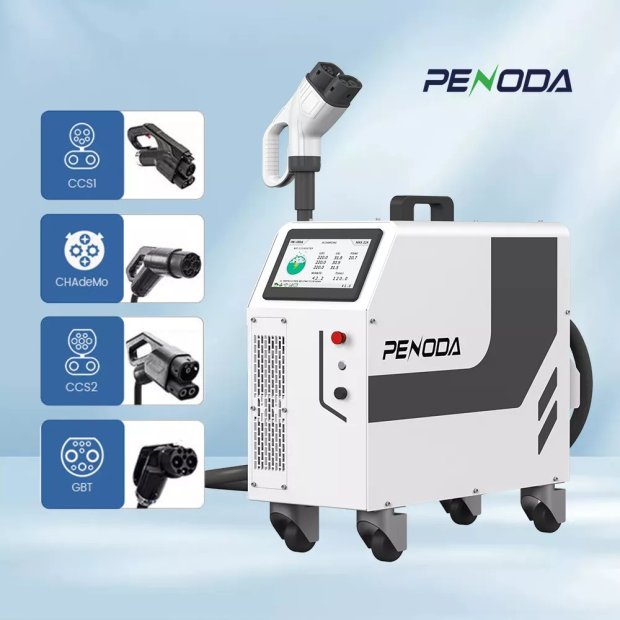

| Connector | CCS1/CCS2/GBT/ChadeMO |
| Dimension (H*W*D) | 540*210*520mm |
| Display | LCD:4.3-inch touch screen |
| Installation | Portable |
| Certification | CE |
| Ingress Protection | IP54,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and 20/30/40kw outputs, our charging station offers a seamless EV charging experience
Safety Instructions for Charging Stations
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Mobile Rapid Charging: Delivers high-power DC charging (up to 40kW) in a portable, space-saving form factor.

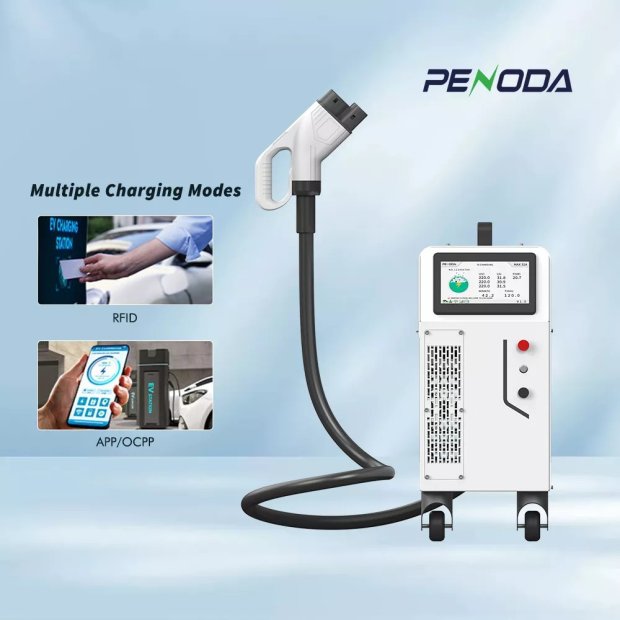

Plug & Charge Ready: Simplified user experience with multiple authentication methods including RFID, App, and Plug & Charge.
Intelligent Power Management: Real-time load monitoring and control via a dedicated mobile application.
All-Weather Reliability: IP55 and IK10 rated for extreme durability in both indoor and outdoor environments.

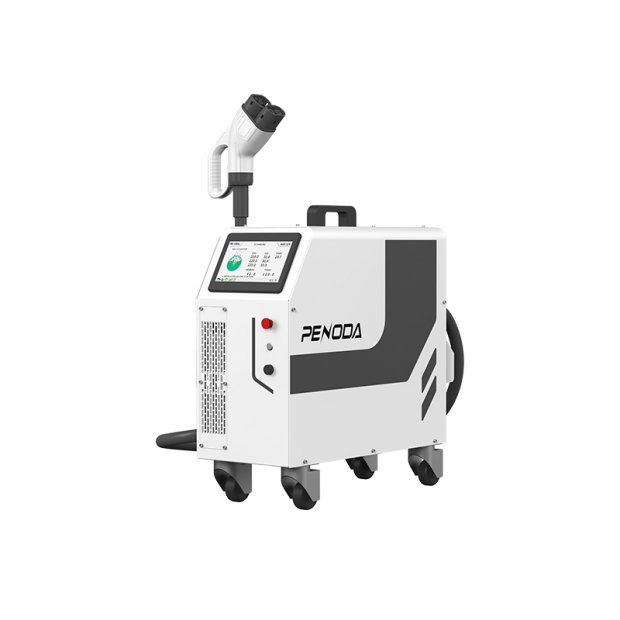

Visual Status Tracking: Integrated Logo LED and multi-color Status LED for instant operational feedback.
Yes, there are portable chargers available for electric vehicles (EVs). These chargers are designed to be compact and easy to transport, allowing EV owners to charge their vehicles on the go.
Yes, you can charge your electric vehicle (EV) with a portable power station, but there are some important considerations to keep in mind.
Portable EV chargers plug into a power source, such as a standard household outlet or a portable power station, and connect to your EV using the appropriate charging connector. They convert the power from the outlet to a suitable form for charging the vehicle’s battery.
Yes, a portable generator can charge an electric vehicle (EV), but there are important considerations to ensure safety and compatibility.
A generator with a stable output and sufficient power rating (typically at least 3 kW for Level 1 and 7 kW or higher for Level 2 charging) is required. Inverter generators are preferred because they provide a more stable electrical output, which is safer for your EV’s electronics.
