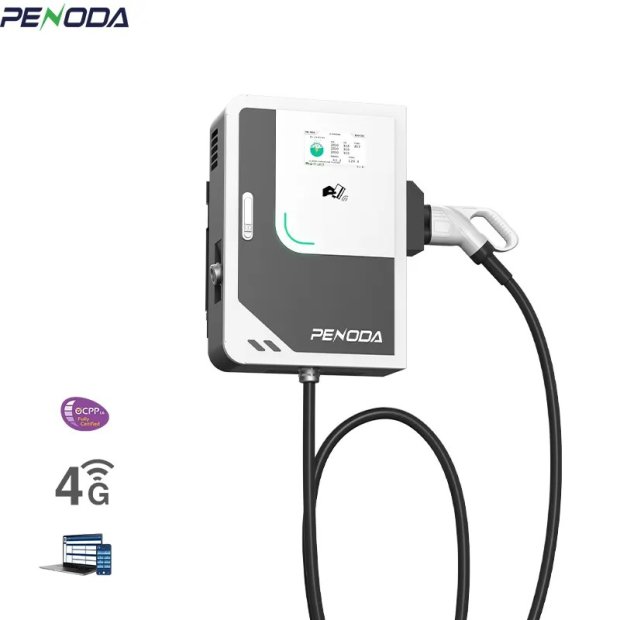

With a compact design and stable power output, the 21kW DC Level 2 EV Charging Station is suitable for commercial facilities, workplaces, parking areas, and managed residential environments. The 21kW output offers a practical balance between charging speed and grid compatibility, helping operators improve charging efficiency without complex infrastructure upgrades.
level 2 ev charging station
21kW Single Phase DC EV Charger
Home Charging in the North American Market
OCPP1.6J+APP+DLB
CCS1/CCS2/GBT
4G/WIFI/RFID
Home use or business ev charger
Fast Charge
IP55 IK10
E-stop Button

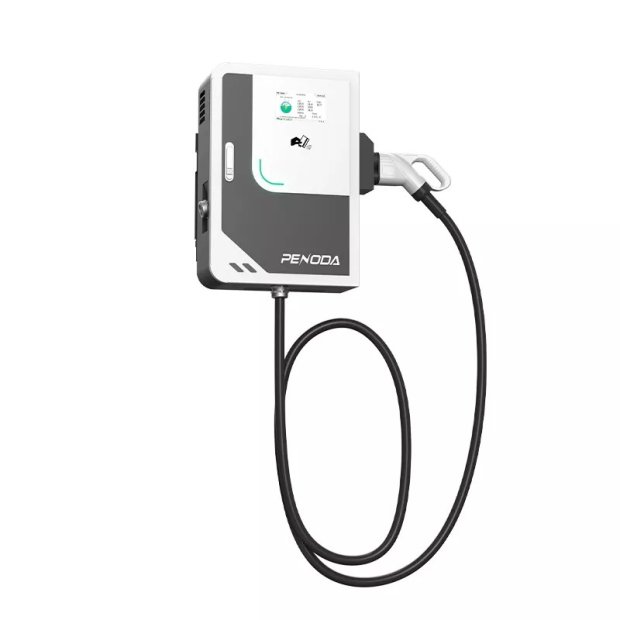

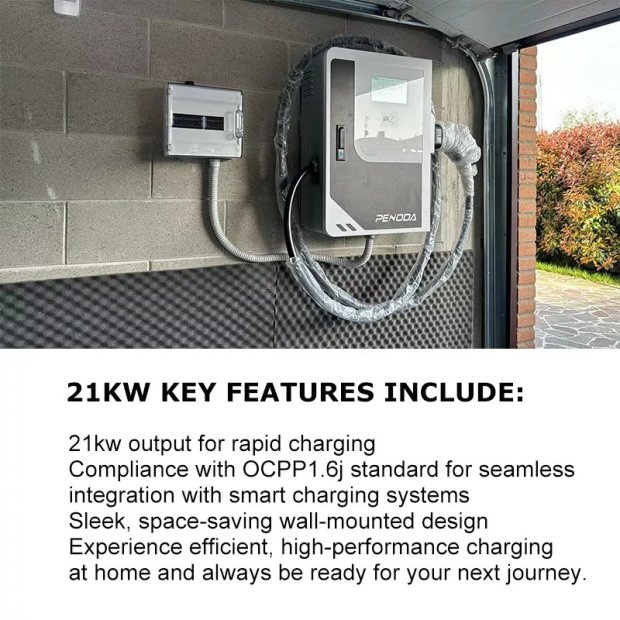

The PDA-21kW DC charger is a robust and efficient electric vehicle (EV) charging station designed to provide fast and reliable charging solutions. It operates on direct current (DC) and is categorized under Level 2 charging infrastructure, making it suitable for both residential and commercial applications. This charger offers a significant upgrade over Level 1 chargers in terms of charging speed and is particularly beneficial for EV owners looking to minimize charging times while maximizing convenience.
Key features of the PDA-21kW DC charger include its high power output of 21 kW, which allows for quicker replenishment of EV batteries compared to lower-powered chargers. It supports single-phase operation, which is typical for Level 2 chargers, and is compatible with various EV models equipped with DC fast charging capabilities. This compatibility ensures that a wide range of electric vehicles can utilize the charger efficiently.
In order to be the best level 2 ev charger for home, we use 3*7kW DC modules in parallel for a 21kW DC charging station, and 4* 7kW DC modules in parallel for a 28kW DC charging station.
Here, we will take the popular electric vehicle model in the North American Market, the Mach-E ER AWD, as an example.
The car has a battery capacity of 98.7 kWh and a range of about 260 miles. Using a 21 kW charging station with an input of 96A, the station can maintain an output of 21 kW. Assuming the electric car is fully depleted, it can be charged to 100% in about 4-5 hours. On average, it can charge 21% per hour, or 54 miles of range per hour. If the current is switched to 32A, it can charge 7% per hour, or 18 miles of range per hour. If the current is switched to 64A, it can charge 14% per hour, or 36 miles of range per hour.
This fastest single phase ev charger will solve the problem of not having a Level 3 power source but wanting to install a DC fast charging station for most homes. In homes with a total capacity of 100A, we recommend a 21 kW DC charging station. In addition, we can introduce 14 kW DC charging stations to the North American Market. For households with a total capacity of 200A, we recommend a 28 kW DC charging station.In addition, the 21 kW charging station has a 60A gun line and the 28 kW charging station has an 80A gun line. Compared to the 100A cables on the market, it is thinner and lighter, more convenient for women, and the cost can be better controlled. In many ways it is the best home ev charger.
Charging mode:PDA-21kw
Charging connector:lEC 62196 Type 2 cable
DC power output:21kw
Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED

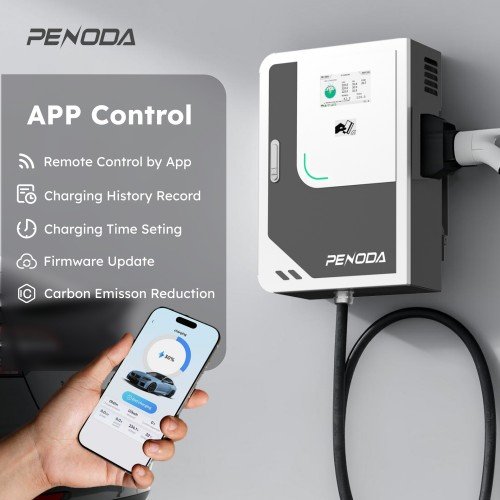

Load management:Via App
Power supply:230/400VAC ± 20%, 50/60Hz TN/TT/IT
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Energy metering :±2% Accuracy
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：450*150*650 mm
Weight:62kg
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON upgrade:OTA via App, OCPP
| Application | Public/Commercial Parking |
| Apartment, Hotel, and Workplace | |
| Heavy-duty Truck and Bus Charging | |
| Fast Charging Stations near highways | |
| Maximum Power | 21kw/42A 400VAC±15% |

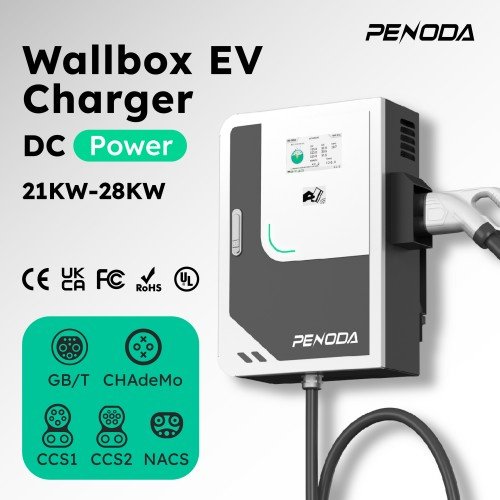

| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 450*150*650 mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and 21kw outputs, our charging station offers a seamless EV charging experience.

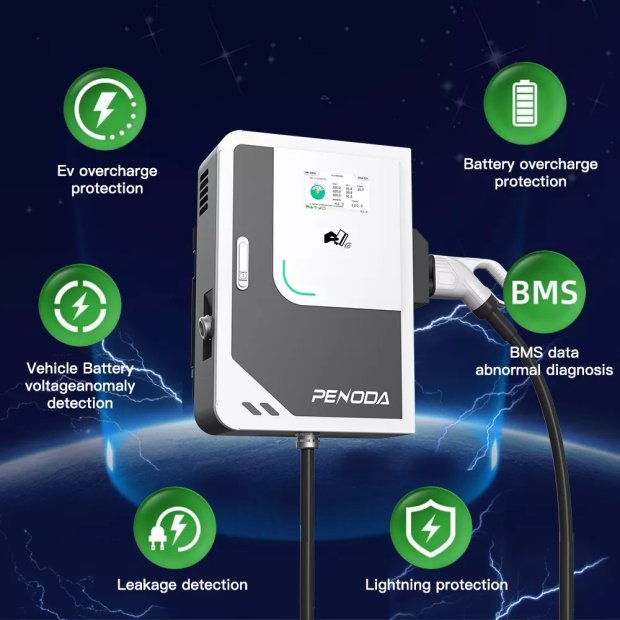

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
DC Fast Charger Manufacturers and Suppliers：
A high-speed DC charging system is crucial to the growth and success of Electric vehicles. If you want to purchase the best DC charger, contact PENODA. PENODA is a leading DC fast charger manufacturer and supplier based in China. International bodies accredit PENODA for producing standardized products that meet the needs of all customers. We offer affordable prices for our products and excellent customer service. PENODA ensures that all orders are delivered timely to all our clients worldwide. Contact PENODA today to make your order.
The PENODA Advantage as a DC Charger Manufacturer:
As a prominent DC charger manufacturer, PENODA is dedicated to delivering top-quality solutions that redefine fast and reliable charging experiences.With a reputation as a trusted DC charger manufacturer, PENODA exemplifies excellence in the industry. Our commitment to crafting high-performance and durable DC EV Chargers is reflected in every product we manufacture. When you choose PENODA, you’re choosing a partner that prioritizes quality and efficiency in every charge.PENODA isn’t just a DC charger manufacturer; we’re also a dedicated DC EV Charger exporter. Our commitment to providing top-tier charging solutions extends beyond borders, ensuring that electric vehicle owners around the world can benefit from our advanced charging technology.As a China EV charger manufacturer, PENODA stands at the forefront of sustainable transportation solutions. With a keen focus on innovation and customer satisfaction, our DC EV Chargers are designed to enhance your electric mobility journey.
Key Features of DC EV Charger：
1.High-Speed Charging
DC charging delivers much higher power than AC, reducing charging times. With DC fast charging, batteries reach 80% in just 30 minutes, allowing quick top-ups and more road time.
2.Efficiency
DC chargers directly supply high-voltage DC power to the battery, avoiding conversion losses, making the process more efficient and lowering overall costs.
3.Ideal for Long Journeys
DC charging is perfect for long trips, enabling quick recharges and reducing long waiting times at charging stations.
4.Public Charging Stations
DC charging is widely available at stations along highways and in commercial areas, providing fast options to meet growing demand.
5.OCPP-Compatible Charging Networks
DC chargers support OCPP, allowing easy integration with various charging management systems for remote monitoring, payment management, and fault detection.
6.Supports Larger Batteries and Commercial Vehicles
DC chargers are designed for high-capacity batteries used in electric trucks, buses, and other commercial vehicles, ensuring broad compatibility.
7.Smart Charging Technology
Modern DC chargers feature smart capabilities like remote monitoring, dynamic load balancing, and real-time updates, optimizing the charging experience.
8.Safety and Reliability
DC chargers include advanced safety features like overcurrent protection and temperature monitoring to ensure safe operation and prevent safety risks.
9.Future-Proof Design
With modular and scalable designs, DC chargers can be upgraded to support faster speeds and newer vehicles as EV technology evolves.
Level 1 EV Chargers: Power Output: 120 volts, approximately 1.4 kW.Charging Speed: Slowest, adds 3-5 miles of range per hour.Suitable For: Home use, plugs into standard outlets.Advantages: Low cost, easy installation.
Disadvantages: Slow charging, not for long trips.
Level 2 EV Chargers:
Power Output: 240 volts, 3.3 kW to 19.2 kW.Charging Speed: Faster, adds 10-60 miles of range per hour.Suitable For: Homes, workplaces, public stations.Advantages: Quicker charging, versatile use.Disadvantages: Higher cost, needs dedicated setup.
Level 3 EV Chargers (DC Fast Chargers):
Power Output: 400 volts or more, 50 kW to 350 kW.Charging Speed: Fastest, adds 60-100 miles in 20 minutes.Suitable For: Commercial locations, highways.Advantages: Rapid charging for long journeys.Disadvantages: Expensive, requires special infrastructure.
Level 2 EV charging stations typically provide charging speeds ranging from 3.3 kW to 19.2 kW, depending on the specific charger and the vehicle’s compatibility.Range Added Per Hour: Level 2 chargers can add anywhere from 10 to 60 miles of range per hour of charging, depending on the charger’s power rating and the vehicle’s battery capacity.
Level 2 chargers are commonly found in residential settings, workplaces, parking garages, and public charging stations. They are versatile and provide a balance between charging speed and installation cost.
Level 2 chargers commonly use connectors such as the J1772 plug in North America or Type 2 plug in Europe, which are compatible with most electric vehicles available today.
The charger adheres to stringent industry standards and certifications, including CE, IEC, and EN certifications such as IEC 61851-1, DIN 70121, ISO 15118, SAE J1772, and IEC 61851-23, ensuring reliable and safe operation.
