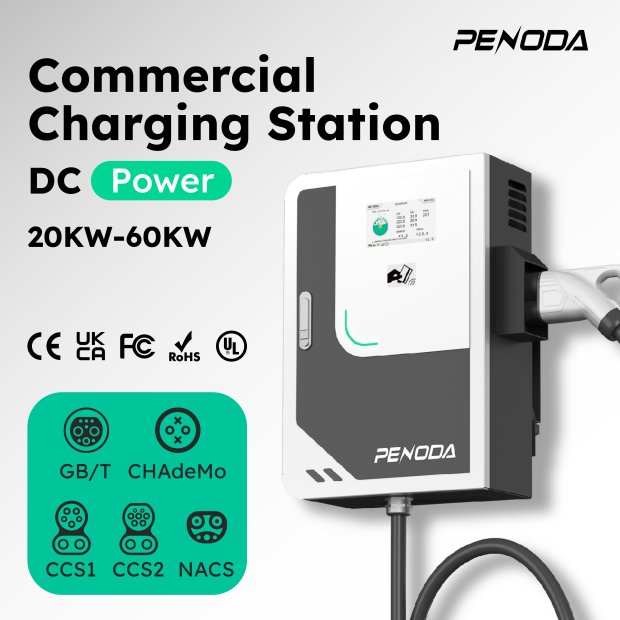

The 20-60kW commercial DC fast EV charger portfolio is engineered for reliable mid-power charging where balance between cost, footprint, and uptime matters most. Ideal for urban hubs, retail parking, and fleet depots, this DC charging station delivers efficient charging performance with minimal installation complexity.
Built by a direct DC fast charger OEM factory, it supports open protocols like OCPP 1.6, RFID/NFC authentication, dynamic load balancing, and multi-network connectivity (4G/WiFi/LAN). Rugged design with IP55/IK10 protection ensures dependable operation in high-usage environments.
Commercial EV Charger
OCPP1.6J+APP+4G+WIFI+LAN Port
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
European Standard (CE)
Top DC AC EV Charger Factory
This commercial DC charger series is designed around a modular power architecture that places emphasis on operational reliability and charge session consistency — key priorities for commercial operators.
Instead of generic “one-size-fits-all” designs, each unit supports optimized output ranges of 20kW, 30kW, 40kW, and 60kW. The charger integrates high-efficiency power electronics, robust protection mechanisms, and versatile communication interfaces to support modern EV charge management systems.
With open standard support (OCPP 1.6), operators can integrate this station into existing backend platforms or networked charging management systems. Built-in dynamic load balancing intelligently manages local power draw, optimizing energy allocation when multiple chargers are deployed together — increasing utilization and reducing peak demand stress.
This series also supports RFID/NFC and backend-driven authentication, providing flexible start control and compatibility with most commercial billing or access control systems.
Charging Model: PDA Series Commercial DC Fast Charger
Connector Type: High-quality IEC 62196 CCS 2 charging cable
Power Versatility: Available in 20kW, 30kW, and 40kW to suit different site requirements.
Installation Flexiblity: Supports both Wall-mounted and Pedestal installation.
Smart Interface: Integrated Logo LED and Status LED for intuitive user feedback.

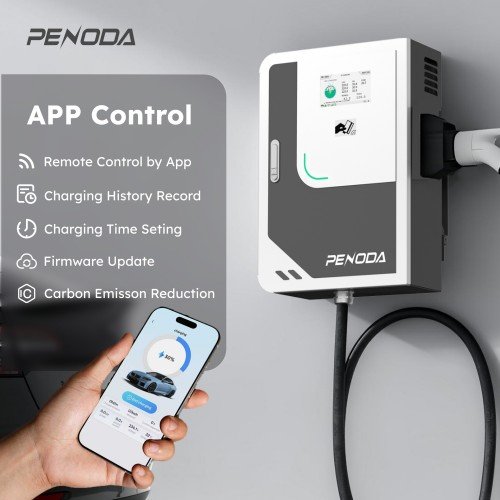

Intelligent Control: Dynamic Load Management accessible via a dedicated App.
Input Power: 230/400VAC ± 20%, 50/60Hz (Compatible with TN/TT/IT grid systems).
Comprehensive Protection: Built-in safeguards including Under Voltage (UVP), Over Voltage (OVP), Over Current (OCP), Relay Stuck detection, and Over Temperature protection.
Precision Metering: High-accuracy energy monitoring with a ±2% tolerance.
Operating Range: Reliable performance from -30°C to 55°C (equipped with an intelligent derating mechanism for extreme heat).
Extreme Conditions: Certified for altitudes up to 2500m.
Rugged Enclosure: IP55 weatherproofing and IK10 impact resistance for indoor and outdoor commercial use.
Physical Profile: Compact footprint at 650 * 450 * 150mm; Weight: 65kg.
Multiple Interfaces: Stay connected via WiFi, 4G, or Ethernet.
Seamless Access: Supports RFID, App-based starting, and Plug & Charge for ultimate user convenience.
Industry Standard: Fully compliant with OCPP 1.6 JSON for backend integration.
Easy Maintenance: Supports OTA (Over-the-Air) updates via App or the OCPP protocol.
| Usage Locations | Public Charging Stations |
| Shopping Malls and Retail Areas | |
| Workplaces and Office Complexes | |
| Rest Stops and Highway Service Areas | |
| Residential Areas | |
| Commercial Fleets and Logistics Centers | |
| EV Charging Hubs | |
| Hotels and Tourist Destinations | |
| Public Parking Lots and Garages | |
| Car Dealerships and Showrooms | |
| Maximum Power | 20kw/42A 400VAC±15%；30kW/60A 400VAC±15%;40kW/80A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 650*450*150mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Balancing | Solar Charging |
Our charging station delivers a premium, seamless EV experience, featuring integrated card payments, intuitive App control, and dual 22kW outputs for high-efficiency charging. Fully compliant with OCPP 1.6 and equipped with WiFi, 4G, and Ethernet connectivity, it ensures your business stays connected and future-ready.

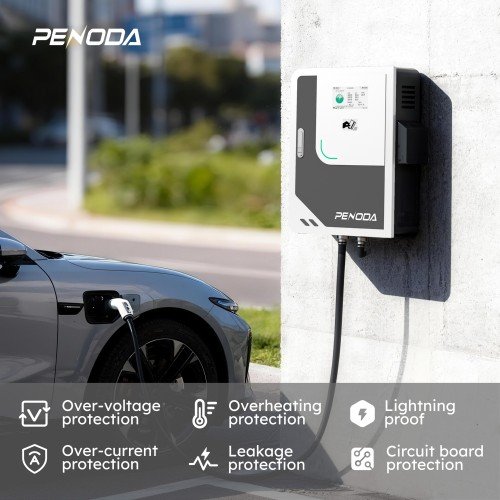

Engineered with a comprehensive safety suite—including leakage, overvoltage, overtemperature, lightning, and IP-rated waterproof protection—our charging stations deliver maximum reliability. Built to withstand the elements, they ensure a secure and worry-free charging experience for every EV driver.
In-House OEM Development:
Direct manufacturing and engineering control ensure consistent quality, faster turnarounds, and tailored customization options for commercial deployment.
Multi-Power Range Options:
Select from 20kW, 30kW, 40kW, or 60kW DC fast EV charger configurations to match site requirements and budget.
OCPP 1.6 Protocol Support:
Seamlessly integrates with third-party charge point management systems for unified control and billing functions.
Dynamic Load Balancing:
Efficient power distribution between chargers reduces local grid strain and enhances payment ROI.
Flexible Connectivity Options:
4G, WiFi, and LAN interfaces allow remote monitoring, OTA updates, and smart CMMS integration.
RFID/NFC & App Authentication:
Supports multiple user start methods including RFID/NFC and app-based authorizations — boosting operational flexibility.
Industrial Protection (IP55/IK10):
Designed for outdoor installation with weatherproof, vandal-resistant build quality that performs in varied environments.
Smart Safety Architecture:
Comprehensive protections including over/under voltage, over-current, emergency stop, and thermal management safeguard users and equipment.
Urban Public Charging Hubs:
Efficient mid-power sites for city centers, transit zones, and mixed-use developments.
Retail & Hospitality Locations:
Perfect for shopping mall parking lots, hotels, and customer-centric venues where drivers spend 30–90 minutes.
Corporate Fleet & Logistics Centers:
Ideal for companies electrifying light vehicle fleets with dependable charging infrastructure and smart energy control.
DC EV Charger (20kW / 30kW / 40kW)
Preparation & Current Capacity:
Verify the power supply supports 380VAC ± 15% (50/60Hz). Ensure the electrical infrastructure meets the following rated input current requirements:
20kW Model: Minimum 37A
30kW Model: Minimum 60A
40kW Model: Minimum 80A
Mounting:
Secure the charger to a load-bearing wall using the provided backplate or install it on a dedicated floor-mount pedestal.
Electrical Wiring:
With the main power OFF, connect the input cables (L1/L2/L3/N/PE). Ensure all terminals are tightened securely and the PE (Earth) wire is solidly grounded.
Network Configuration:
Connect the unit via WiFi, 4G, or Ethernet to enable OCPP 1.6J backend management and APP control features.
Commissioning:
Ensure the Emergency Stop button is released. Switch on the circuit breaker. Once the LED status indicates "Ready," initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified electrician in accordance with local electrical codes and safety regulations.
This 20-60kW DC fast EV charger excels in mid-power commercial contexts where fast turnaround and lower infrastructure cost are key. It bridges the gap between slow AC charging and high-power DC stations.
Yes — the platform supports OCPP 1.6, enabling seamless connectivity with most CPMS for remote control and billing.
RFID, NFC, and app-based start/authentication are supported to fit a wide range of user access models.
Dynamic load balancing intelligently allocates available power to multiple chargers, minimizing grid impact and maximizing uptime.
Yes — the robust IP55 and IK10 rated enclosure ensures durability for outdoor use in public and business environments.
