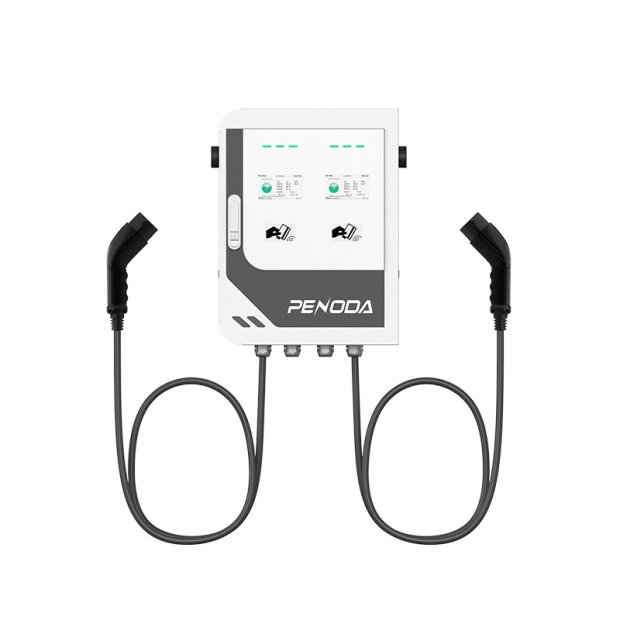

The 11+11 kW / 22+22 kW Level 2 EV Charger is equipped with dual IEC 62196 Type 2 tethered cables, enabling simultaneous charging of two electric vehicles while improving space efficiency in shared parking areas. Integrated Dynamic Load Balancing (DLB), managed via a dedicated mobile app, allows real-time monitoring and intelligent power distribution, preventing grid overload and optimizing available power for both charging points.
Dual gun charging station
Support customization
EV Charger Level 2
OCPP1.6J+APP
Type 2/GBT/Type 1
Directional current regulation
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button

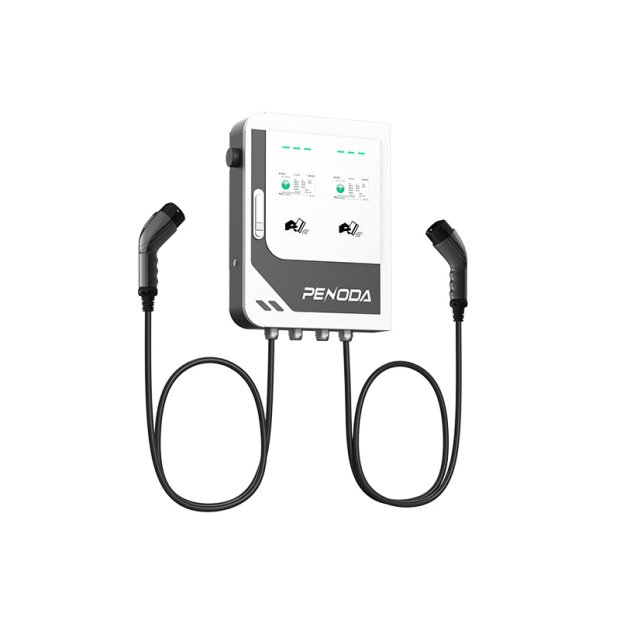

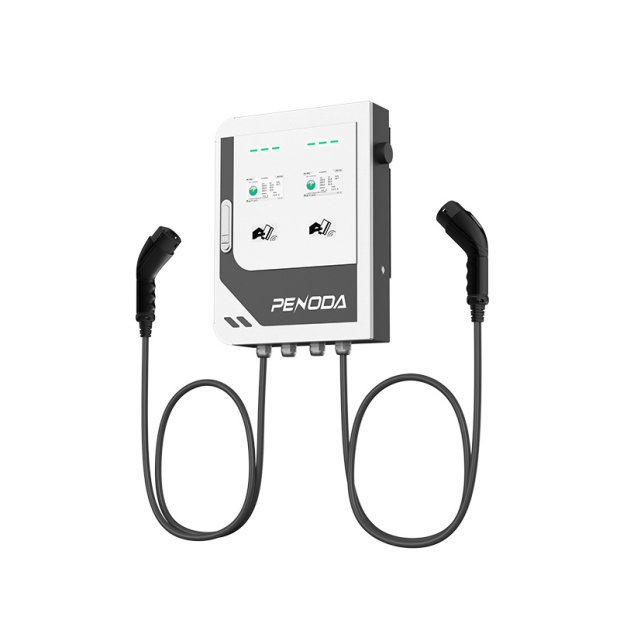

PAL-A Series: High-Efficiency Dual-Port Level 2 AC Charger (11kW+11kW / 22kW+22kW)
The PAL-A Series is a robust, high-performance charging solution engineered for high-utilization environments, including commercial hubs, multi-family residential complexes, and public parking facilities. Delivering dual outputs of 11kW or 22kW, this station allows for the simultaneous charging of two vehicles without compromising speed. Its flexible architecture supports both single-phase and three-phase AC inputs, ensuring seamless integration into diverse global power grids. Designed for durability and smart management, the PAL-A series is the premier choice for businesses looking to future-proof their EV infrastructure.
Model Series: PAL-A
Charging Connector: Dual IEC 62196 Type 2 tethered cables
AC Power Output: Three-phase up to 22kW (per port) with intelligent downgrade compatibility
Mounting Options: Versatile wall-mount or ergonomic pedestal installation
HMI (User Interface): Integrated Branding Logo LED & Multi-color Status LED indicators
Load Management: Dynamic Load Balancing (DLB) managed via dedicated Mobile App
Power Supply: 230VAC ± 20% (Single-phase) or 400VAC ± 20% (Three-phase) | 50/60Hz
Grid Compatibility: TN / TT / IT systems supported
Safety Protections: Under Voltage (UVP), Over Voltage (OVP), Over Current (OCP), Relay Stuck detection, and Over Temperature protection
Residual Current Protection: Integrated Type A + 6mA DC leakage protection (compliant with IEC 62955)
Energy Metering: Industrial-grade metering with ±2% accuracy
Operating Temperature: -30°C to 55°C (Equipped with intelligent thermal derating mechanism)
Operating Altitude: Up to 2500m
Environmental Rating: IP55 (Weatherproof) & IK10 (High Impact Resistance)
Application: Certified for both Indoor and Outdoor all-weather operation
Dimensions: 380 x 100 x 500 mm (Compact space-saving design)
Net Weight: 18kg
Network Interface: WiFi / 4G (Cellular) / Ethernet (LAN)
User Authentication: RFID Card, Mobile App, and Plug & Charge
Backend Protocol: Fully compliant with OCPP 1.6 JSON
System Upgrades: OTA (Over-the-Air) firmware updates via App or OCPP backend
| Maximum Power | 11kw/16A 400VAC；22kW/32A 400VAC |
| Connector | Type 2/GBT |
| Dimension (H*W*D) | 380*100*500 mm |
| Display | LED 4.3″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Equipped with integrated card payment terminals, intuitive App control, and full OCPP 1.6 compatibility, our charging station offers a sophisticated energy solution. Featuring robust WiFi/4G/Ethernet connectivity and dual 22kW high-speed outputs, it ensures a seamless, reliable, and efficient charging experience for every EV driver.

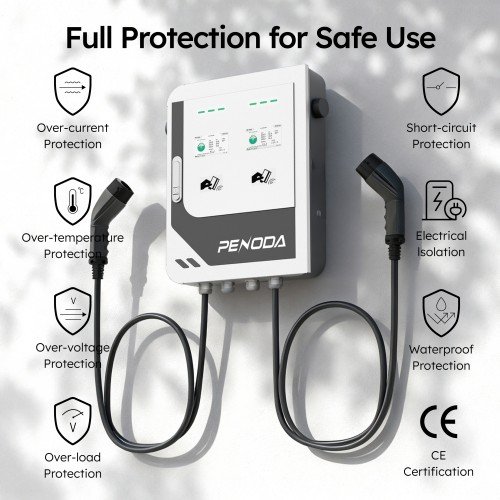

Engineered with a comprehensive protection suite—including leakage, overvoltage, over-temperature, and lightning safeguards—our stations provide a fortress of safety for your vehicle. Combined with an IP55-rated waterproof design, PENODA chargers ensure a secure and reliable charging experience in any environment, giving you absolute peace of mind.

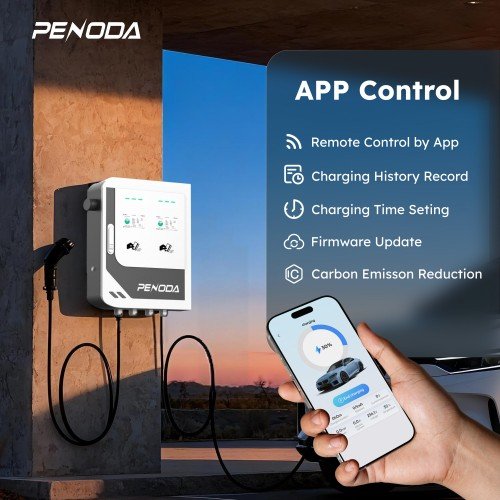

Dual Activation Modes (RFID & Remote): Seamlessly initiate charging via an encrypted RFID card swipe or through our dedicated mobile app. Each unit includes premium IC cards to ensure secure and convenient user access.
Scheduled Charging & Auto-Termination: Optimize energy costs by scheduling sessions during off-peak hours. The intelligent system monitors battery levels in real-time and automatically terminates power delivery upon reaching full capacity to protect battery health.
Dynamic Real-Time Monitoring: An integrated high-resolution display provides instant visibility into the charging process, showing current power output, total energy delivered, and accurate Estimated Time-to-Charge (ETC).
Industrial-Grade Safety Suite: Engineered for absolute security, the system features a comprehensive protection array, including Overload, Over/Under Voltage, Short Circuit, and Thermal safeguards, complemented by a high-visibility Emergency Stop button for immediate manual isolation.
Leakage Protection: The input distribution box for each AC charging station must be equipped with a Residual Current Circuit Breaker with Overcurrent Protection (RCBO) or a leakage-protected air switch.
Rated Capacity: The rated current of the main leakage protection switch must be at least 100A to ensure system stability and safety.
Adaptive Protection: Select an appropriately rated Molded Case Circuit Breaker (MCCB) or Miniature Circuit Breaker (MCB) based on the specific power rating of the charging station.
Single-Unit Requirement: For a standard single-unit installation, a 32A circuit breaker is required.
Current Load: Cables connecting the circuit breaker to the AC station must be rated for a continuous current capacity of at least 32A.
Voltage & Frequency: * Rated Voltage: Single-phase AC 230V ± 10%.
Frequency: 50 Hz.
Recommended Wiring: It is recommended to use 5-core 16 mm² copper-core cables (ensuring compatibility with three-phase potential or enhanced thermal stability).
PE Safety: During the installation of the AC charging stations, ensuring the reliable connection of the Protective Earth (PE) cable is mandatory to prevent electrical hazards and ensure equipment safety.
A Level 2 charger for electric vehicles (EVs) refers to a charging station that provides higher power and faster charging compared to standard household outlets (Level 1 chargers).
a Level 2 EV charger is generally around 3 to 5 times faster than a Level 1 charger. This increased charging speed makes Level 2 chargers more suitable for residential, workplace, and public charging applications where EV owners need to recharge their vehicles more quickly and efficiently. The exact charging rate can vary based on the charger’s power output and the specific electric vehicle being charged.
Level 2 charging typically refers to electric vehicle (EV) charging stations that operate at 240 volts AC (alternating current). The power output of Level 2 chargers can vary, but they generally range from 3.3 kW to 22 kW or even higher, depending on the specific charger model and installation setup.
If you own an electric vehicle and find yourself needing faster charging times or greater convenience in charging, investing in a Level 2 charger is likely worth it. It provides faster charging speeds, convenience, and flexibility in managing your EV’s charging needs, especially if you have the ability to install one at home or at your workplace.
