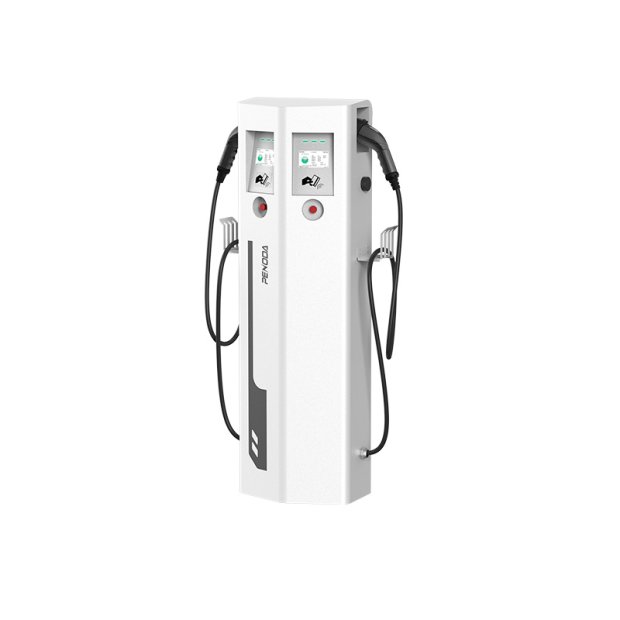

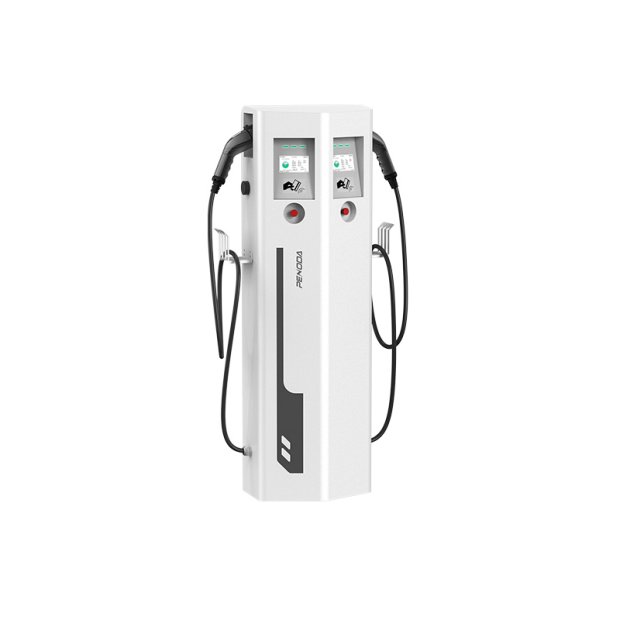

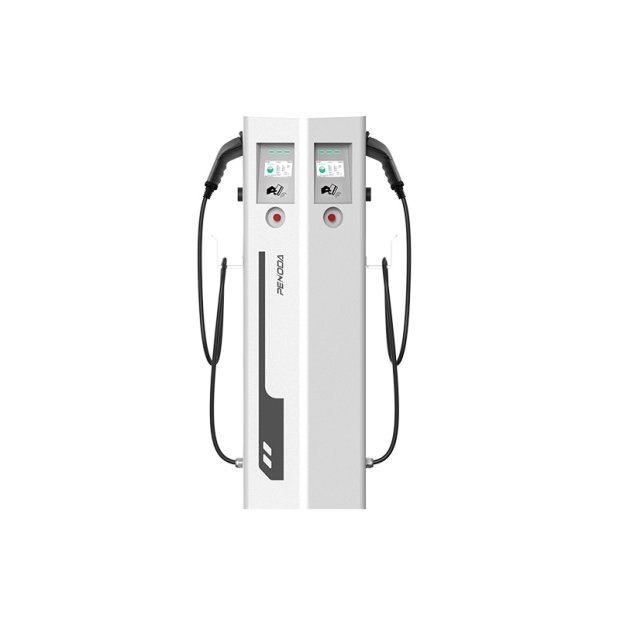

The 22+22kW Electric Vehicle Charger is designed for premium parking locations that require both performance and presentation. Its standalone pedestal structure offers higher visibility and a more professional appearance compared to conventional wall-box chargers, making it ideal for commercial and public installations.
Electric Vehicle Charger
OCPP1.6J+APP
2×Type 2/GBT
RFID+NFC
E-stop Button
DLB
IP54 IK10
The EV Charger 11+11/22+22kW PENODA Power Pulse PAH embodies a holistic approach to electric vehicle charging. From rapid charging and comprehensive compatibility to user-friendly features, safety measures, energy efficiency, and durability, this charging station addresses the needs of resellers while meeting the expectations of end-users. With its future-ready design, Eco-conscious features, and certifications, it’s a reliable and efficient solution for reselling energy to hotels, public parking areas, gas stations, and beyond. Embrace the electric revolution with a product that stands at the forefront of innovation and sustainability.
| Parameter | Specification |
| Maximum Power Options | 11kW (16A / 400VAC) | 22kW (32A / 400VAC) |
| Charging Connector | IEC 62196 Type 2 Cable |
| Residual Current Protection | Integrated Type A + 6mA DC (Per IEC 62955) |
| Energy Metering | High-precision billing grade (±2% Accuracy) |
| Safety Mechanisms | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature Monitoring |
| Parameter | Specification |
| Dimensions (WDH) | 438 * 260 * 1330 mm |
| Net Weight | 40 kg |
| Protection Rating | IP55 (Weatherproof) & IK10 (Vandal-resistant) |
| Operating Temperature | -30°C to 55°C (With smart derating mechanism) |
| Operational Altitude | Up to 2500m |
| Mounting | Solid Floor-mounted Pedestal |
| Parameter | Specification |
| Network Interface | WiFi / 4G / Ethernet |
| User Authentication | RFID Card, Mobile App, and Plug & Charge |
| Communication Protocol | OCPP 1.6 JSON (CMS Ready) |
| Firmware Management | OTA (Over-the-Air) upgrades via App or OCPP |
| HMI Interface | Branded Logo LED & Multi-color Status LED |
| Maximum Power | 11kw/32A 400VAC±15%；22kW/64A 400VAC±15% |
| Connector | Type 2/GBT |
| Dimension (H*W*D) | 438*260*1330 mm |
| Display | LED 4.3″ |
| Installation | Floor-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 11/22kW outputs, our charging station offers a seamless EV charging experience.
Safety Instructions for Charging Stations

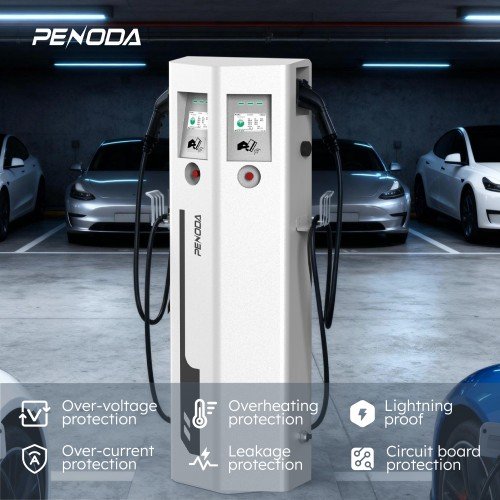

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Standalone Pedestal Design: Unlike standard wall-box chargers, the PAH series features an integrated floor-mounted design, providing a high-visibility, professional charging solution for premium parking environments.
High-Power AC Charging: Delivering up to 22kW of three-phase power with intelligent downgrade compatibility, ensuring it meets the requirements of all Type 2 compatible electric vehicles.
Comprehensive Safety Suite: Built-in Type A + 6mA DC residual current protection ensures maximum safety for users and vehicles, fully compliant with IEC 62955 standards.
Weatherproof Excellence: Rated IP55 and IK10, the PAH is engineered to withstand extreme outdoor conditions, from heavy rain to physical impact, while maintaining an elegant aesthetic.
Smart Ecosystem Integration: Full OCPP 1.6J support allows operators to manage energy loads, monitor real-time usage, and perform remote maintenance effortlessly.
Ensure a flat, solid surface for floor-mounted installation.
Operating environment: -30°C to +55°C, suitable for indoor or outdoor use (IP55).
Confirm local power supply capacity meets charger requirements.
Input Power: Single-phase or three-phase AC (according to model).
Rated Voltage: 380VAC ±20% (three-phase).
Dedicated circuit breaker, leakage protection, and reliable grounding are required.
Fix the mounting bracket or base using expansion bolts.
Install the charger vertically and securely.
Ensure sufficient space for ventilation, cable operation, and maintenance.
Connect power cables to terminals L1 / L2 / L3 / N / PE as marked.
Ensure the grounding (PE) connection is secure.
Connect communication cables (Ethernet / 4G / WiFi) if applicable.
Check all wiring before powering on.
Switch on the power supply and confirm system self-check is completed.
Test charging via RFID card, APP, or plug-and-charge.
Verify communication with the OCPP 1.6 backend system if used.
Installation must be performed by qualified electricians.
Do not power on before completing grounding.
Follow local electrical and safety regulations at all times
The time it takes to charge an electric vehicle (EV) depends on several factors, including the type of charger, the battery capacity of the EV, the state of charge (SOC) of the battery, and the efficiency of the charging process.
The cost to charge an electric vehicle (EV) varies widely based on several factors including electricity rates, the size of the vehicle’s battery, the type of charger used, and where the charging takes place.
The cost to install an EV charging station depends on the type of charger, location, and specific installation needs. While residential installations are generally more affordable, commercial and public installations can be significantly more expensive due to higher power requirements and additional infrastructure needs. Proper planning and consultation with professional installers can help manage costs and ensure a successful installation.
The total cost for a commercial EV charging station varies based on the type of charger, location, and specific site requirements. For a basic Level 2 charging station, expect to spend between $2,400 and $12,000 per charger. For DC fast chargers, costs can range from $30,000 to $150,000 or more per charger. Proper planning and consultation with professional installers and local utilities can help manage these costs and ensure a successful deployment.
