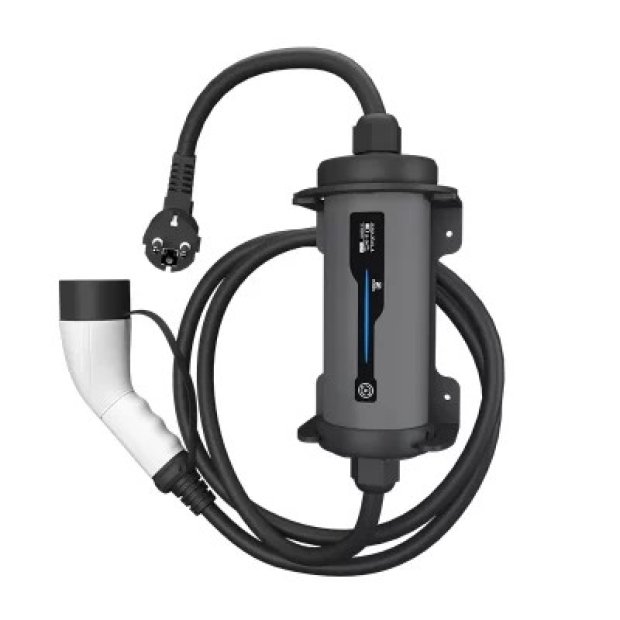

The PAG-A-22KW EV Charger delivers high-power AC charging up to 22 kW, offering an efficient and flexible solution for heavier duty AC charging needs. Designed with interchangeable power plugs and robust outdoor-ready construction, this charger supports a wide range of EVs and installation environments.
EV With 22KW AC Charging
Changeable Power Plug
Type 2/GBT
Current Adjustable
Touch Button
IP65 IK10
The PAG-A-22KW AC Charger is a high-performance charging station engineered to deliver fast, reliable, and intelligent power solutions. With its robust 22kW output, it serves as a cornerstone for sustainable transportation, offering unparalleled convenience for modern EV users. Featuring universal plug compatibility, the PAG-A-22KW seamlessly integrates with a diverse range of EV models. Whether deployed in public hubs, corporate workplaces, or residential settings, its blend of high power and operational flexibility makes it an ideal choice for accelerating the global transition to electric mobility.
Charging Mode: PAG-A (Portable / Advanced Series)
Charging Connector: IEC 62196 Type 2 (Tethered cable)
AC Power Output: * Single-phase: Up to 7.4 kW
Three-phase: Up to 22 kW (Backward compatible with 11 kW)
Mounting Options: Portable; Optional Wall-mount bracket or Pedestal
HMI (Interface): Brand Logo LED & Multi-color Status LED
Charging Control: Plug & Play
Input Voltage: 230V AC ± 20% (1P) / 400V AC ± 20% (3P)
Grid Frequency: 50/60 Hz
Earthing Systems: TN / TT / IT
Comprehensive Protection: Under Voltage (UVP), Over Voltage (OVP), Overcurrent (OCP), Relay Stuck Protection, Over-temperature Protection
Residual Current Protection: Type A + 6mA DC (Compliant with IEC 62955)
Energy Metering: Built-in metering with ±2.0% accuracy
Operating Temperature: -30°C to 55°C (with intelligent thermal derating)
Operating Altitude: Up to 2,500 m
Environmental Rating: IP67 (Waterproof/Dustproof), IK10 (Impact Resistance)
Installation: Suitable for both Indoor and Outdoor use

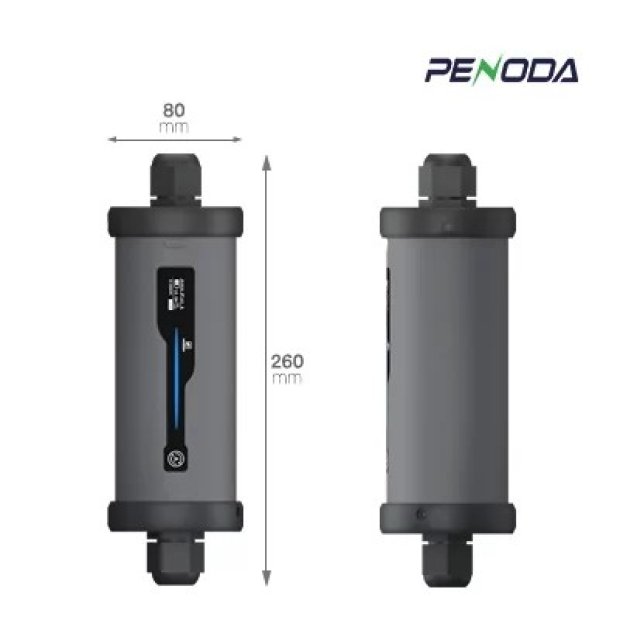

Dimensions (H×W×D): 260 × 80 × 80 mm
Weight: [Insert Weight, e.g., Approx. 3.5 kg]
Charging Standards: IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2
EMC Compatibility: * Immunity/Emission: EN 61000-6-1/2/3/4
Limits/Harmonics: EN 61000-3-2/3/11/12
Radio Equipment (RED): EN 300 328 V2.1.1, EN 300 330 V2.1.1
| Maximum Power | 22kW/32A 400VAC±15% |
| Connector | Type 2/GBT |
| Dimension (H*W*D) | 260*80*80 mm |
| Display | OLED 0.96″ |
| Installation | Portable/Wall-mount |
| Certification | CE |
| Ingress Protection | IP67,IK10 |
| Dynamic Load Blancing | Solar Charging |

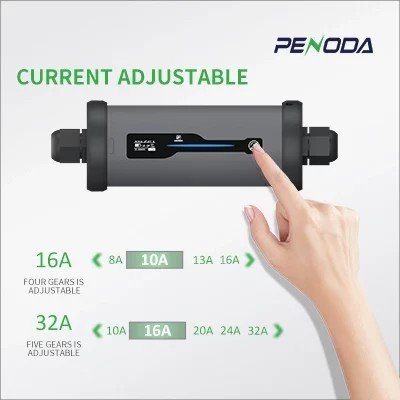

On-Demand Power Balancing: Adapt your charging to any environment. By long-pressing the touch interface, you can select from multiple current levels (6A–32A), ensuring the station operates in perfect harmony with your local grid limits.
Off-Peak Optimization: Master the clock with the built-in scheduling feature. Set your charging window to coincide with economic energy tariffs, transforming your EV routine into a cost-effective and eco-conscious lifestyle choice.
Comprehensive Connectivity: The charging station comes equipped with three interchangeable power adapters—CEE 7/7 (Type E), CEE Blue (32A), and CEE Red (32A)—ensuring seamless operation across a wide range of residential and industrial power environments.
It’s important to note that the ability to charge at 22 kW AC depends on the specific configuration and options chosen for each EV model. Additionally, availability of 22 kW AC charging stations may vary by region and infrastructure development. Always check the specifications and capabilities of your specific EV model to determine its charging capabilities and requirements.
No, Tesla vehicles cannot charge at 22 kW AC directly from AC charging stations. Tesla’s onboard chargers are typically designed to handle up to 11 kW of AC charging power, which is suitable for the Type 2 connectors commonly found in Europe and other regions.
While it is technically feasible to install a 22 kW car charger at home, it requires careful planning, assessment of your home’s electrical capacity, and consideration of costs and practicality based on your specific EV charging needs. Consulting with a qualified electrician or EV charging installer is crucial to ensure a safe and efficient installation process.
While a 7 kW-capable EV can use a 22 kW charger, it will charge at its maximum rate of 7 kW. The higher capacity of the charger provides flexibility for charging a variety of EVs and supports future EV models that may have faster onboard charging capabilities.
The EV Charger station adheres to stringent industry standards and certifications, including CE, IEC, and EN certifications such as EN IEC 61851-1:2019, EN IEC 61000-6-1:2019, and EN IEC 61000-6-3:2021, ensuring reliable and safe operation.
