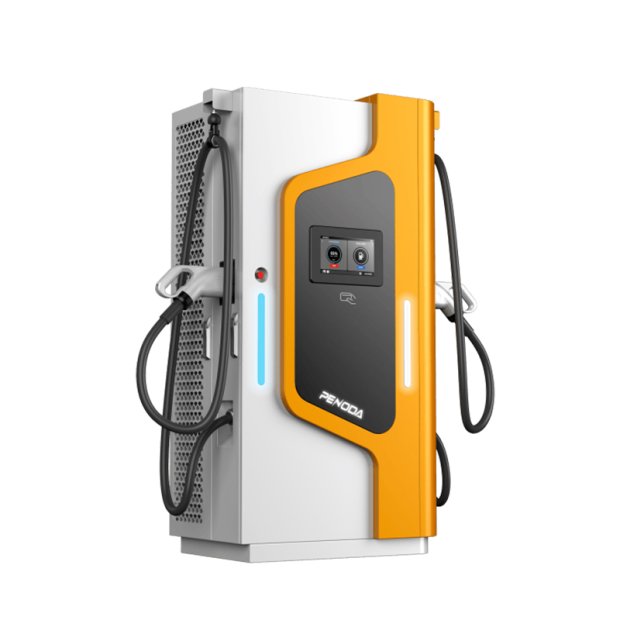

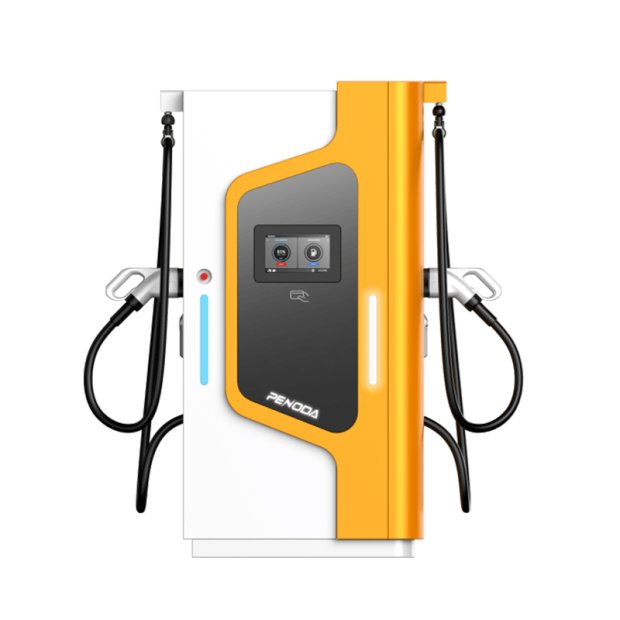

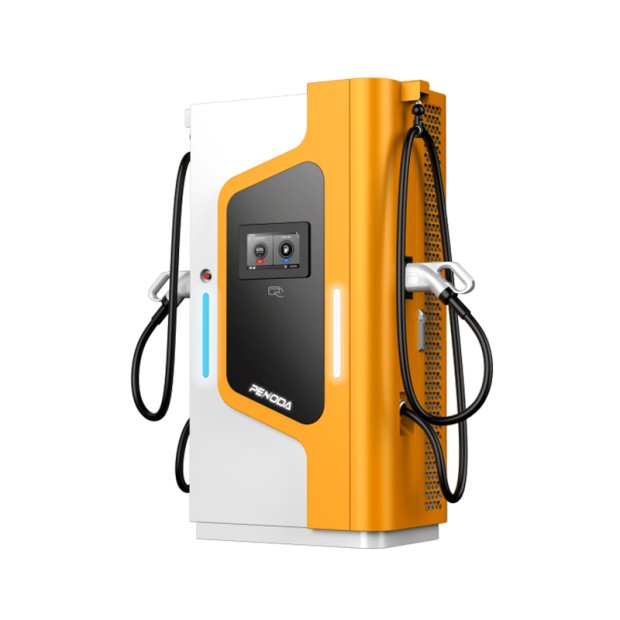

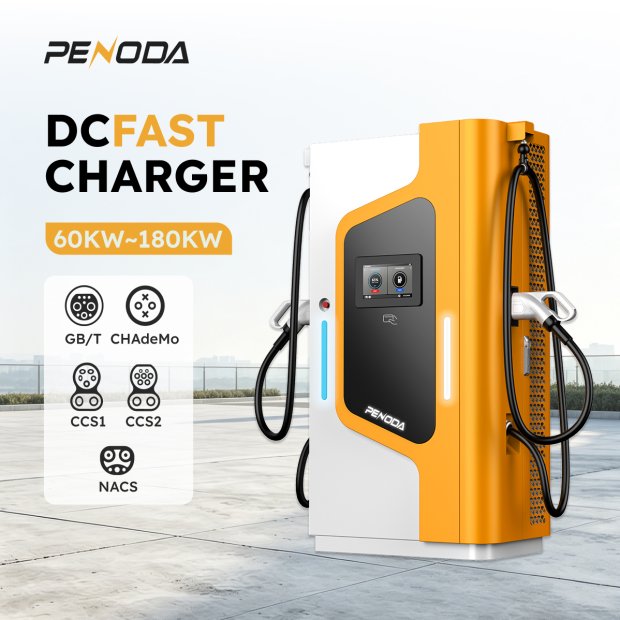

Power up at maximum velocity. The PDB Orange Series Level 3 DC Fast Charging Station (Scalable from 60kW, 80kW, 120kW, 160kW, up to a massive 240kW) is a high-performance energy hub engineered for rapid turnover and non-stop commercial demand.
Designed with intelligent dynamic power distribution across a dual-gun setup, this vibrant unit maximizes charging efficiency for multiple vehicles simultaneously. Protected by extremely durable hardware and a hard rugged enclosure, and seamlessly integrated with smart networked systems (WiFi/4G/App), it is the ultimate heavy-duty asset for highway rest stops, busy public charging hubs, luxury hotels, commercial fleets, and demanding factories.
EV Charging Station Business
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
Credit Card Payment
Fast Charge
IP55 IK10
E-stop Button
Ultra-Fast Level 3 Charging for High-Turnover Locations

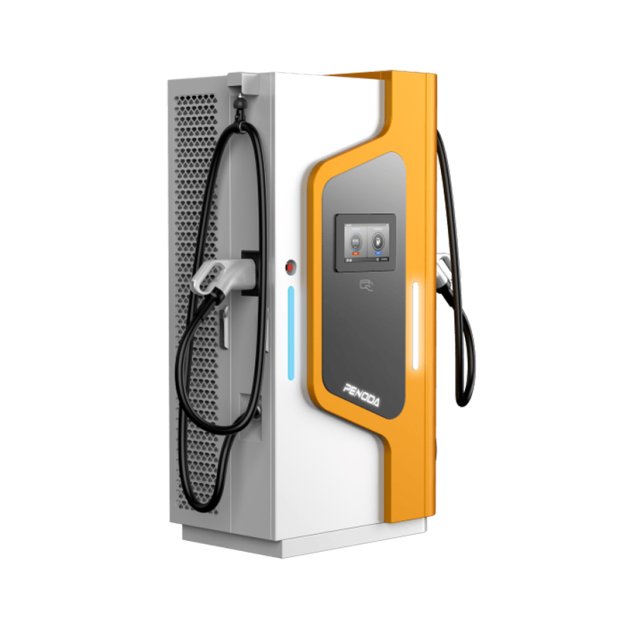

In the fast-paced commercial EV sector, speed and reliability are your greatest assets. Our vibrant orange Level 3 DC Fast Charging Stations are engineered to drastically reduce driver wait times while maximizing operator revenue. Ranging from a robust 60kW and 80kW configuration to an ultra-fast 160kW and 240kW powerhouse, this series delivers relentless, high-efficiency power tailored for extreme commercial usage.
What sets this station apart is its advanced modular power architecture. It doesn't just deliver raw energy; it utilizes smart load balancing to optimize output when two vehicles are connected. Combined with a striking aesthetic that draws drivers in and indestructible physical hardware that minimizes maintenance, this station is built to dominate the public EV infrastructure and commercial property markets.
Charging mode:PDB
Charging connector:CCS2/CCS1/GBT
DC power output:Three phase up to 80kW with downgrade compatibility
Mounting options:Floor-mounted
HMI:Logo LED, Status LED
Load management:Via App
Maximum Power:
60kw/120A 400VAC±15%；80kW/160A 400VAC±15%
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：700*425*1500 mm
Weight:120 kg
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON Software upgrade:OTA via App, OCPP
| Maximum Power | 60kw/120A 400VAC±15%；80kW/160A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 700*425*1500 mm |
| Display | LED Touch 10.1″ |
| Installation | Floor-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
| Our Services | 1.OEM/ODM Support |
| 2.2-Year Warranty | |
| 3.10-15 days lead time | |
| 4.Rigorous Quality Control | |
| 5.Industry-Leading Manufacturer |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 60/80 kw outputs, our charging station offers a seamless EV charging experience.
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Product Description：
In the ever-expanding world of electric vehicles (EVs), charging technology is a pivotal aspect of ensuring a seamless and efficient driving experience. PENODA, a renowned name in the field of advanced charging solutions, proudly presents the PENODA 60/80kW DC EV Charger. This cutting-edge charger is designed to meet the demands of the modern EV landscape, offering speed, efficiency, and versatility like never before.
The 60/80kW DC EV Charger is a high-power charging solution designed for electric vehicles. This charger, known for its impressive 60-80 kilowatt output, offers a range of features that make it a top choice for EV owners. Smart charging protection system, automatic detection of abnormal states, intelligent control current.
High Power Output: With a substantial 60-80 kilowatt output, this charger is significantly faster than standard home chargers.
Compatibility: It’s compatible with a wide range of EVs, making it a versatile choice.
Fast Charging: Thanks to its high power, it can deliver a substantial charge in a relatively short time.
Safety: The 60/80kW DC EV Charger comes equipped with safety features like overvoltage protection and short-circuit prevention.
The 60/80kW DC EV Charger is a game-changer in the world of electric vehicle charging. Its high power output, compatibility, and safety features make it a top choice for EV owners looking for fast and efficient charging solutions. As EV adoption continues to grow, expect to see more of these chargers in public charging stations, making longer journeys more accessible for all EV enthusiasts. Make the switch to a 60/80kW DC EV Charger today and enjoy quicker, more efficient charging for your electric vehicle. Place your order now.
Dynamic Power Distribution & Dual-Gun Efficiency: Maximize your infrastructure's output. The intelligent charging modules automatically distribute power—scaling all the way up to 240kW—between the dual-gun connectors, allowing two vehicles to fast-charge simultaneously without overloading the grid.
Heavy-Duty Hard Shell & Durable Hardware: Built to conquer the outdoors. Our exceptionally hard and weather-resistant outer shell (IP55/IK10) provides maximum protection against vandalism, torrential rain, and extreme temperature fluctuations, ensuring decades of reliable operation in fully exposed public charging hubs and industrial factories.

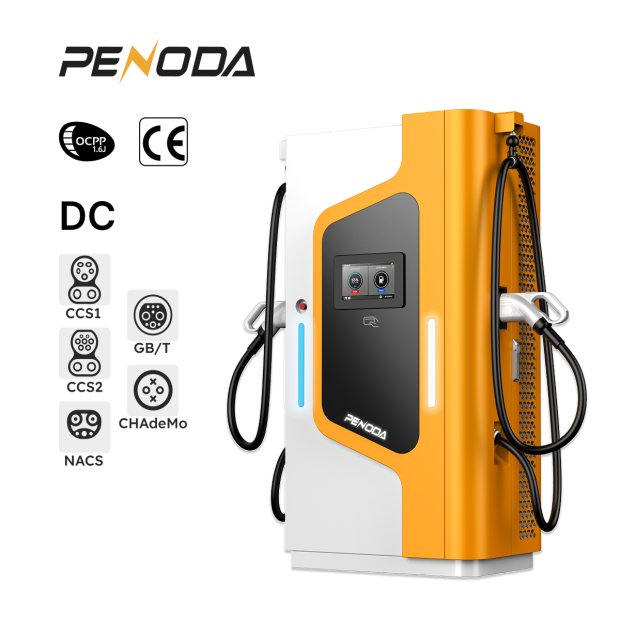

Multi-Standard Connectors for Universal Access: Eliminate charging anxiety. Equipped with versatile plug standards (CCS1, CCS2, CHAdeMO, and GB/T), this station provides unrestricted compatibility for everything from standard passenger EVs at a hotel to heavy-duty commercial trucks in a fleet depot.

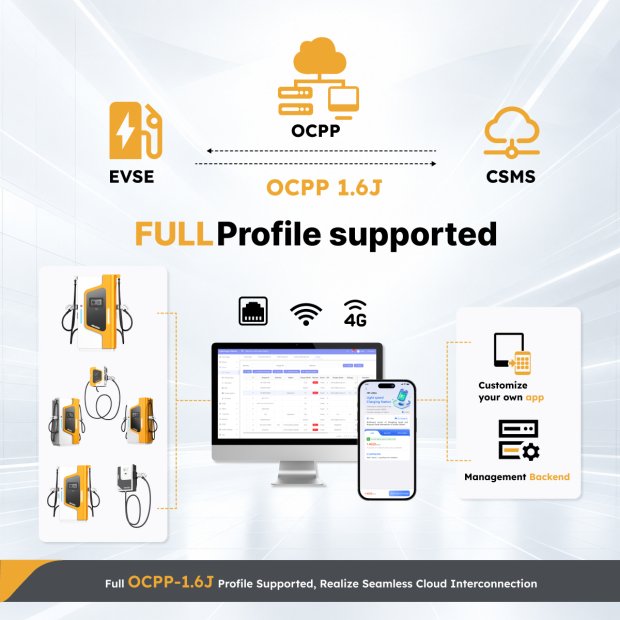

Proprietary R&D & Intelligent Network Control: We are the source. Backed exclusively by our own R&D team, this charger guarantees top-tier software stability. Operators can seamlessly manage OCPP 1.6J billing, monitor diagnostics via 4G/WiFi/Ethernet, and offer drivers a frictionless smart App or RFID payment experience.
High-Efficiency Modular Design: Inspired by industry-leading standards, the internal components feature high-efficiency power modules with exceptional heat dissipation. This ensures low-maintenance operation and minimal downtime, protecting your long-term investment.
Highway Rest Stops & Public Hubs: Cater to long-distance travelers who demand Level 3 ultra-fast charging. The 240kW flagship configuration can add hundreds of kilometers of range in minutes, drawing high-value traffic to your location.
Commercial Fleets & Heavy-Duty Transit: Power your massive commercial vehicles. The durable hardware and high-capacity output make this unit perfectly suited for the intense, non-stop charging cycles of electric buses and logistics fleets.
Factories & Industrial Zones: Deploy a truly resilient power solution for workplace charging. The hardened exterior and high-power output are purpose-built to survive the harsh realities of industrial manufacturing zones.
Hotels & Retail Centers: Generate massive daily turnover. The scalable 60kW to 160kW configurations drastically reduce charging times, allowing more customers to plug in, power up, and dine or shop while they wait, instantly elevating your property's value.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A

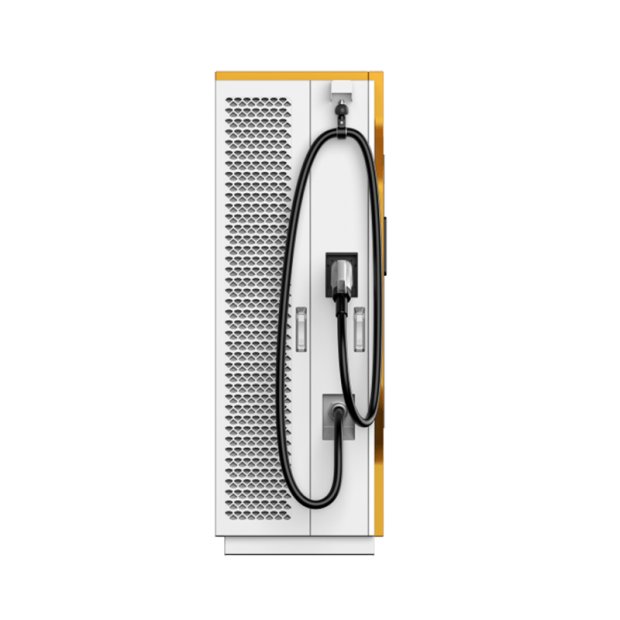

2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.
4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
Level 3 DC fast charging delivers direct current straight to the EV battery. Our top-tier 160kW and 240kW models offer extreme charging velocities, making them essential for high-turnover highway rest stops, busy commercial fleets, and large-scale public charging hubs.
The station features smart internal algorithms that automatically balance the power output. If two vehicles are plugged into the dual-gun EV charger, the system dynamically allocates the 60kW to 240kW capacity based on each vehicle's real-time battery needs, maximizing efficiency and minimizing grid strain.
Absolutely. The unit is protected by an exceptionally hard shell and durable hardware (IP55/IK10 rated). This rugged enclosure is specifically engineered to resist impacts, harsh weather, and the wear-and-tear typical of high-traffic factories, hotels, and public parking lots.
Yes. By combining extreme power output (up to 240kW) with comprehensive plug standards (CCS1/CCS2/GB/T/CHAdeMo), this station is fully capable of servicing everyday passenger cars as well as large-scale commercial transit fleets.

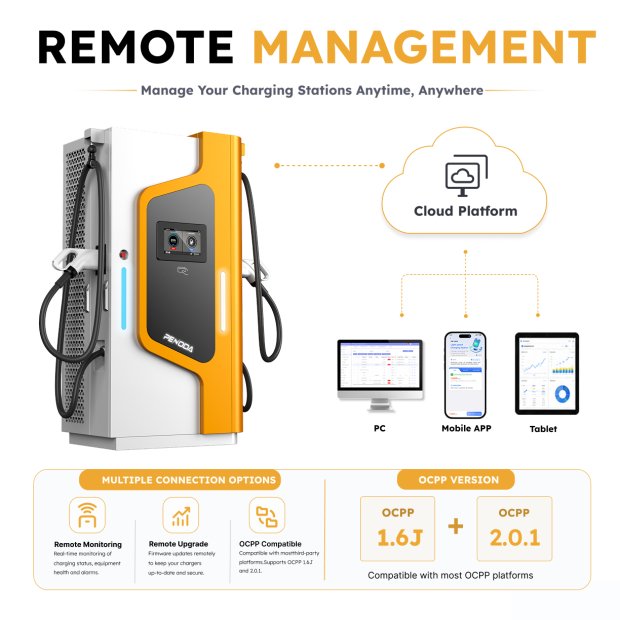

Because this station is developed by our own dedicated R&D team, it offers seamless and stable integration. Using the built-in 4G, WiFi, or Ethernet connections, operators can manage payments via smart App or RFID, adjust pricing on the OCPP backend, and receive instant OTA (over-the-air) software updates.
