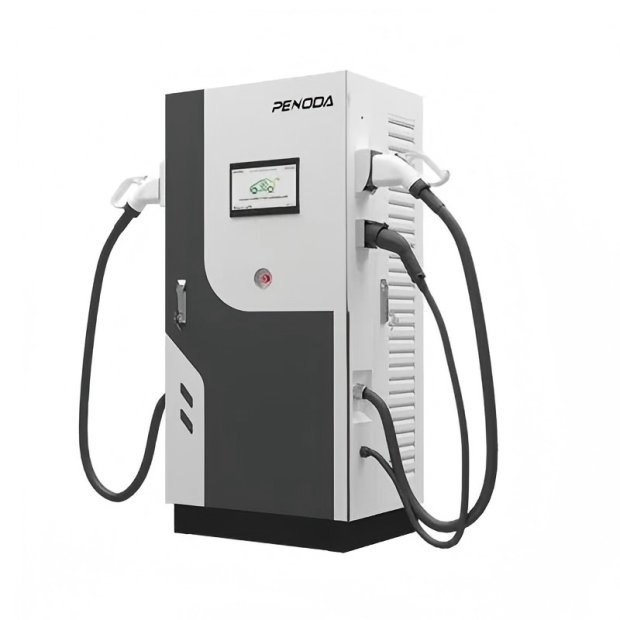

The DC120kW + AC22kW Hybrid Gun DC Charging Station is a flexible and powerful charging solution, offering both high-speed DC charging and reliable AC charging to accommodate a wide range of electric vehicles. Whether it’s passenger cars, commercial fleets, or buses, this station is designed to provide fast and efficient charging. Equipped with cutting-edge technology, it meets the diverse needs of today’s modern electric vehicles.
Hybrid EV Charging Station
OCPP1.6J+APP/RFID
CCS1/CCS2/GBT
4G/WIFI
Fast Charge
IP55 IK10
E-stop Button
The PADJ-DC120kW+AC22kW Hybrid EV Charging Station is a versatile, high-capacity power solution that integrates ultra-fast DC charging and standard AC charging into a single, compact unit. Delivering a powerful 120kW DC output alongside a 22kW AC port, this hybrid station provides universal support for everything from passenger EVs to heavy-duty commercial fleets.
| Parameter | Specification |
| Combined Power Output | 142kW (120kW DC + 22kW AC) |
| Input Power Supply | 260V – 465V AC |
| Rated Current | 230A (DC) / 32A (AC) |
| Energy Metering | High-precision billing grade (±2% Accuracy) |
| Integrated Protection | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature Protection |
| Parameter | Specification |
| Operating Temperature | -30°C to 55°C (with intelligent derating mechanism) |
| Protection Rating | IP55 (Dust/Waterproof) & IK10 (Impact Resistant) |
| Operational Altitude | Up to 2000m |
| Installation Site | Certified for both Indoor and Outdoor deployment |
| Parameter | Specification |
| Network Interfaces | WiFi / 4G / Ethernet |
| Communication Protocol | OCPP 1.6 JSON (Fully compatible with CMS backends) |
| User Authentication | RFID Card & Mobile App Support |
| System Maintenance | OTA (Over-the-Air) software upgrades via App or OCPP |
| Maximum Power | 120kw/200A 250-1000VDC ; 22kW/32A 380 |
| Connector | CCS1/CCS2/GBT |
Start Mode | FRID，OCPP |
| Display | LCD:7.0 inch touch screen |
| Installation | Pedestal-mounted |
| Certification | CE，FCC |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Dual-Mode Hybrid Charging: Combines 120kW DC Ultra-Fast Charging and 22kW AC Charging in a single integrated unit.
Universal Connector Standard: Equipped with IEC 62196 CCS2 cables, ensuring compatibility with the latest European and international EV models.
Intelligent Load Management: Features dynamic power allocation and real-time monitoring via a dedicated Mobile App.
High-Visibility HMI: Designed with a professional Branded Logo LED and multi-color Status LED indicators for an intuitive user experience.
Commercial Grade Durability: Built to withstand heavy use in high-traffic public and fleet environments.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.
4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
The PADJ-DC120kW+AC22kW Hybrid Gun DC Charging Station is a dual-function charging unit that provides both high-power DC fast charging (120kW) and standard AC charging (22kW) in one compact system. It is designed to efficiently charge a wide range of electric vehicles.
The hybrid design offers flexibility by accommodating both DC fast charging for rapid charging needs and AC charging for standard or overnight charging. This makes it suitable for various electric vehicles and user requirements.
The PADJ-DC120kW+AC22kW is compatible with a broad range of electric vehicles, including passenger cars, commercial vehicles, and buses. The DC charger is particularly useful for vehicles that support fast charging, while the AC charger caters to vehicles with standard charging capabilities.
The station is equipped with multiple safety mechanisms, including overcurrent protection, overvoltage protection, short circuit protection, and temperature monitoring, ensuring a safe and reliable charging process.
The charging station features an intuitive, high-definition touch screen that provides easy navigation for selecting charging options, viewing charging status, managing payments, and accessing system information.
