Maximum Single-Phase Power & High-Visibility Safety
Accelerate your commercial charging network with the High-Visibility Yellow 28kW DC Level 2 Fast Charger. Engineered for maximum single-phase throughput, this powerhouse utilizes four parallel DC modules to deliver rapid turnaround times for commercial fleets, busy retail lots, and industrial facilities.
Manufactured in our TUV and ISO certified facility, the striking yellow enclosure serves as both a safety asset and a testament to our OEM/ODM capabilities. It boasts a premium 7-inch anti-glare touch screen and frictionless smart access—including NFC, RFID, APP, and Plug & Charge—all strictly secured by OCPP 1.6J (TLS 1.2).
level 2 ev charging station

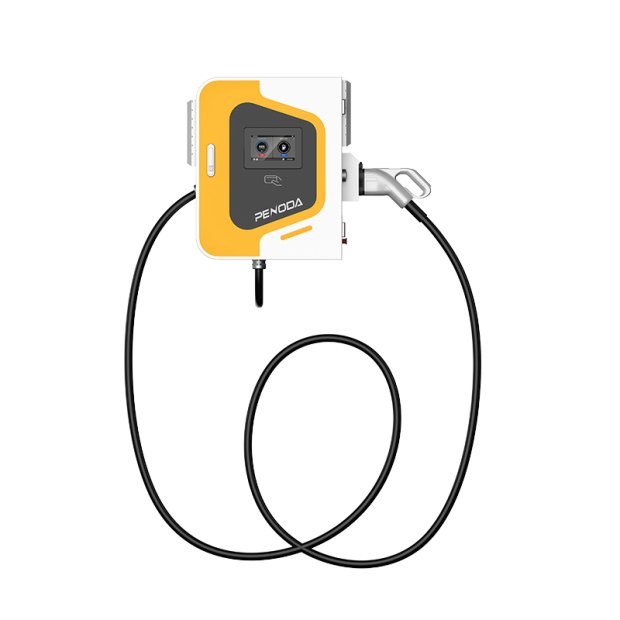

21kW Single Phase DC EV Charger
Home Charging in the North American Market
OCPP1.6J+APP+DLB
CCS1/CCS2/GBT
4G/WIFI/RFID

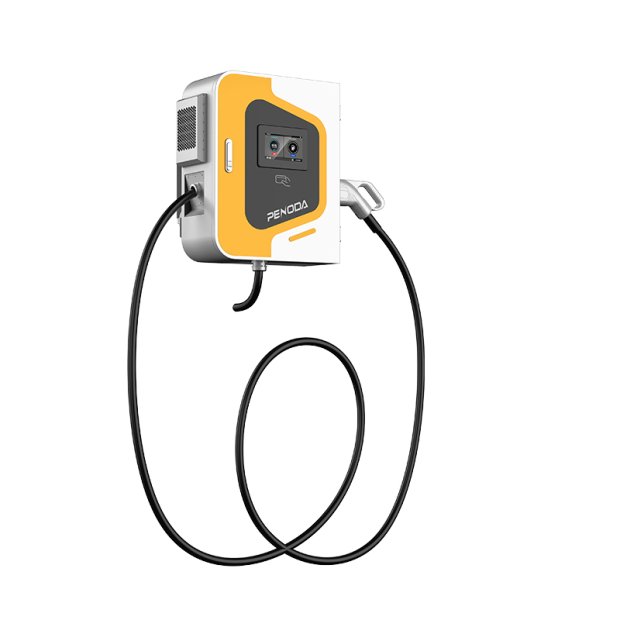

Home use or business ev charger
Fast Charge
IP55 IK10
E-stop Button
The Ultimate 28kW Powerhouse for High-Traffic Environments
When standard charging speeds aren't enough, the 28kW Yellow Edition DC Charger steps in. Delivering the absolute maximum power available on standard single-phase grid infrastructure (ideal for 200A electrical services), it is explicitly designed for locations demanding rapid vehicle turnover. The vibrant yellow IP55/IK10 enclosure isn't just an aesthetic choice; it serves as a crucial high-visibility safety feature for bustling commercial garages and fleet depots.
Advanced 4x7kW Parallel Architecture
Driven by our proprietary R&D team, this wall-mounted giant guarantees relentless performance. The internal architecture features four heavy-duty 7kW DC parallel modules. By directly bypassing the vehicle's onboard AC converter, it feeds a massive 28kW of pure direct current to the battery, drastically cutting down dwell times and ensuring your commercial operations never slow down.
Charging Model: PDA-21kW
Charging Connector: IEC 62196 Type 2 tethered cable
DC Power Output: 21kW (Constant Output)
Mounting Options: Wall-mounted or Pedestal-integrated
User Interface (HMI): Integrated Logo LED and multi-color Status LED
Load Management: Dynamic load balancing via dedicated Mobile App
Power Supply: 230/400VAC ± 20%, 50/60Hz
Grid Compatibility: Supported systems: TN / TT / IT
Safety Protections: Under Voltage (UVP), Over Voltage (OVP), Over Current (OCP), Relay Stuck detection, and Over Temperature protection
Energy Metering: Integrated metering with ±2% accuracy
Operating Temperature: -30°C to 55°C (equipped with intelligent derating mechanism)
Operating Altitude: Up to 2500m

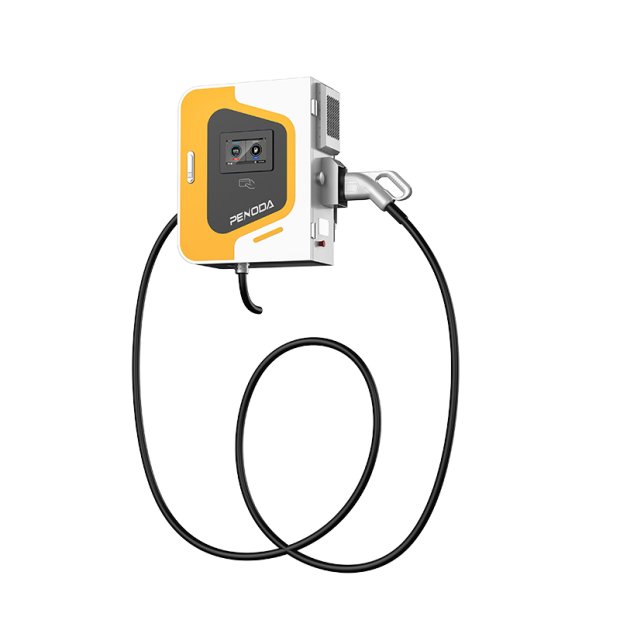

Environmental Rating: IP55 (Weatherproof) and IK10 (Impact Resistance)
Deployment: Suitable for both Indoor and Outdoor installation
Dimensions: 450 x 150 x 650 mm
Net Weight: 62kg
Network Interface: WiFi / 4G / Ethernet
User Authentication: RFID Card, Mobile App, and Plug & Charge
Backend Protocol: OCPP 1.6 JSON

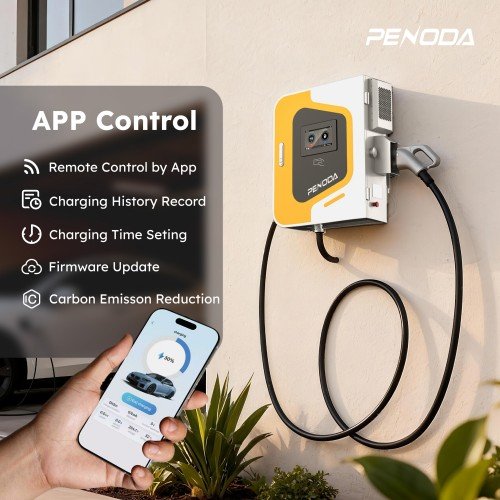

System Upgrades: OTA (Over-the-Air) firmware updates via App or OCPP backend
| Application | Public/Commercial Parking |
| Apartment, Hotel, and Workplace | |
| Heavy-duty Truck and Bus Charging | |
| Fast Charging Stations near highways | |
| Maximum Power | 21kw/42A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 450*150*650 mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and 21kw outputs, our charging station offers a seamless EV charging experience.
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
A robust DC fast-charging infrastructure is the backbone of the global electric vehicle transition. To secure the most reliable and efficient technology for your network, partner with PENODA—a premier DC fast charger manufacturer and supplier headquartered in China.
Accredited by international regulatory bodies, PENODA is committed to engineering standardized, high-performance products that exceed global market expectations. We combine competitive, factory-direct pricing with exceptional customer service and a streamlined global logistics network, ensuring that every order is delivered on time, anywhere in the world. Contact PENODA today to secure the future of your EV infrastructure.
As a prominent leader in the EV industry, PENODA is dedicated to delivering top-tier solutions that redefine the charging experience through speed, reliability, and innovation.
With a reputation built on trust and technical mastery, PENODA exemplifies excellence in the charging sector. Our commitment to crafting high-performance, industrial-grade DC EV Chargers is reflected in our rigorous manufacturing standards. When you choose PENODA, you are choosing a partner that prioritizes quality, durability, and efficiency in every charge.
PENODA is more than a manufacturer; we are a dedicated global exporter. Our mission is to provide advanced charging technology that transcends borders, ensuring that EV drivers worldwide have access to the most reliable power solutions available. We manage the complexities of international supply chains so you don't have to.
As a leading Chinese EV charger manufacturer, PENODA stands at the vanguard of sustainable transportation. With a relentless focus on R&D and customer satisfaction, our DC EV Chargers are specifically designed to enhance the electric mobility journey, making the transition to green energy seamless and profitable.
1. Maximum 28kW DC Output: Achieve unparalleled single-phase charging speeds. Designed to optimize 200A electrical services, this unit significantly reduces charging times compared to 21kW or standard AC models, perfect for high-frequency usage.
2. High-Visibility Enclosure & Custom OEM: Safety meets branding. The vibrant yellow design prevents accidental collisions in dark or busy parking structures. As a source factory, we offer limitless OEM/ODM tailoring from our TUV and ISO certified production lines.
3. 80A-Rated Ergonomic Cable: Handling massive power doesn't mean wrestling with bulky equipment. Our exclusive 80A-rated charging cable is engineered to be surprisingly lightweight and flexible, ensuring effortless operation for all drivers.

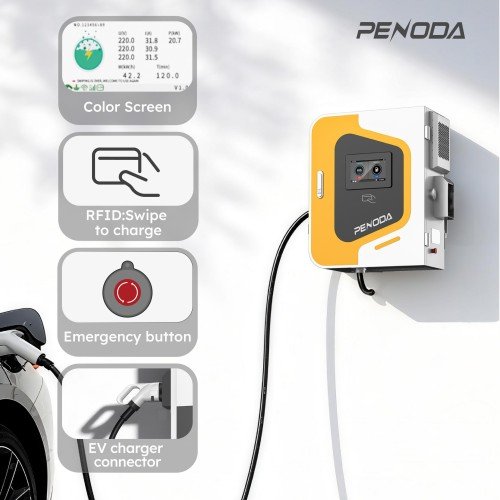

4. 7-Inch HD Interactive Display: An ultra-bright, 7-inch anti-glare touch screen provides crystal-clear instructions and real-time charging metrics, maintaining perfect visibility even under direct glaring sunlight.
5. Frictionless Smart Start: Eliminate queues and complex billing. Drivers can initiate ultra-fast charging instantly utilizing RFID cards, NFC, QR code scanning, a dedicated smart APP, or the cutting-edge ISO 15118 Plug & Charge protocol.
6. Enterprise-Grade Remote Security: Connected via 4G, Wi-Fi, or LAN, the robust OCPP 1.6J backend is protected by top-tier TLS 1.2 encryption. Facility managers can safely perform OTA updates and remote diagnostics without dispatching technicians.
Preparation: Verify the power supply supports 230V/400VAC ± 20% and ensure the site has adequate electrical capacity for a 21kW or 28kW load.
Mounting: Secure the backplate to a wall or floor pedestal and lock the unit firmly with safety screws.
Wiring: With power OFF, connect the input cables (L/N/PE or L1/L2/L3/N/PE) and ensure the PE wire is solidly grounded.
Connectivity: Configure WiFi, 4G, or Ethernet to enable APP management and OCPP backend functions.
Commissioning: Ensure the E-stop is released, power on the breaker, and start a test charge via the APP or an RFID card.
Note: Installation must be performed by a certified electrician.
The 28kW station is designed for maximum speed. It utilizes four 7kW parallel DC modules (compared to three in the 21kW) and is optimized for properties with a 200A electrical service. It delivers significantly faster turnaround times, making it the superior choice for commercial fleets and high-traffic retail.
Beyond showcasing our expansive OEM/ODM color customization capabilities, the high-visibility yellow enclosure acts as a built-in safety measure. It ensures the powerful charging station is easily spotted in busy, high-traffic, or dimly lit commercial parking lots, preventing accidental vehicular impacts.
Not at all. Despite delivering maximum single-phase power, we have engineered an incredibly flexible 80A-rated ergonomic cable. It is drastically lighter than traditional Level 3 industrial cables, providing a user-friendly experience without compromising power.
Security is paramount for fleet and commercial operations. The charger operates on the OCPP 1.6J standard with rigorous TLS 1.2 encryption via 4G, Wi-Fi, or LAN. This ensures that all user data, transactions (via RFID, NFC, APP, or Plug & Charge), and remote diagnostics are completely secure against cyber threats.
Absolutely. This proprietary hardware and software ecosystem was developed 100% in-house. Furthermore, every unit is meticulously manufactured and tested in our TUV and ISO dual-certified factory, ensuring maximum durability and safety in harsh public environments.
