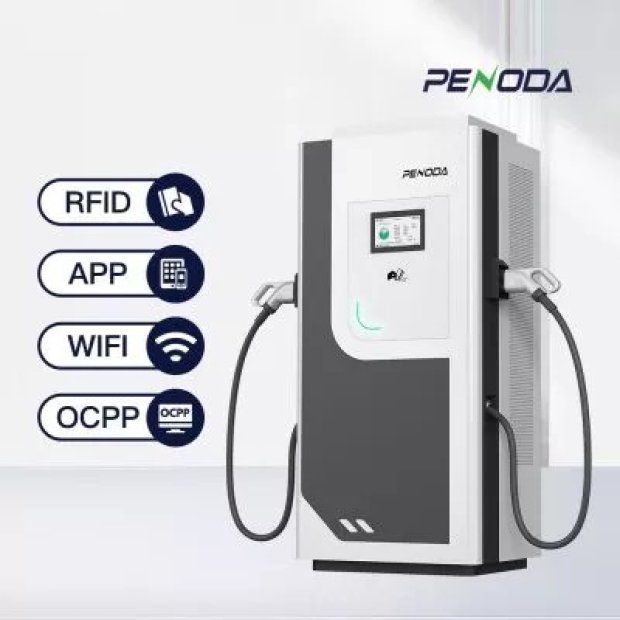

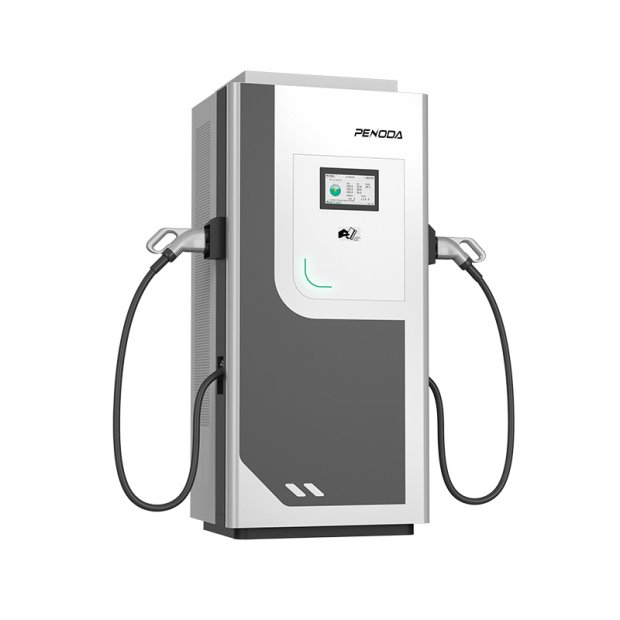

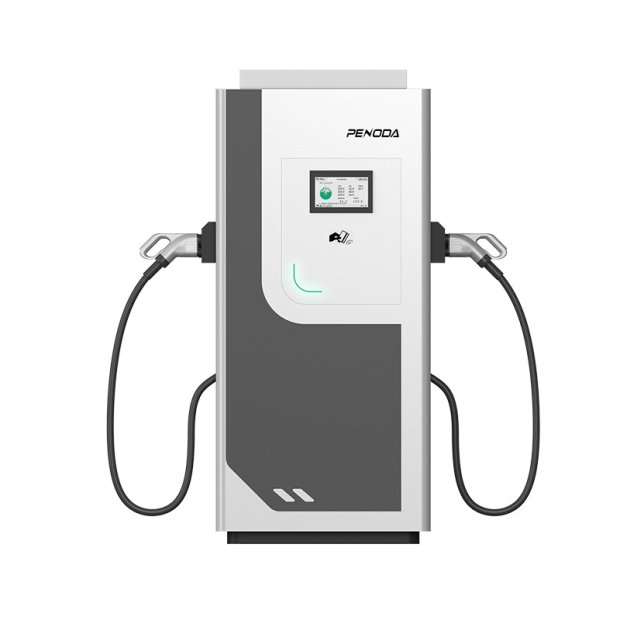

Penoda’s Liquid Cooled EV Charging Stations are engineered for high-performance, offering rapid and reliable charging for electric vehicles. With power options ranging from 120kW, 160kW, 180kW, to 240kW, these chargers are ideal for commercial installations, including public charging networks and fleet operations.
Liquid Cooled EV Charging Cable
OCPP1.6J+APP/RFID
CCS1/CCS2/GBT
4G/WIFI
Fast Charge
IP55 IK10
E-stop Button
The PDJ series redefines fast charging by integrating advanced liquid-cooled cable technology, enabling sustained high-power output of up to 240kW with unmatched thermal stability. Designed for high-demand environments such as highway corridors and busy commercial fleets, this station ensures peak performance while significantly reducing the weight of the charging cable for a premium user experience. With OCPP-ready connectivity and a robust IP-rated design, the PDJ series delivers the speed, safety, and reliability required for the next generation of electric mobility.
Advanced Liquid-Cooling Technology: Features state-of-the-art liquid-cooled cables that efficiently manage heat, allowing for sustained high-current output and preventing power derating during peak use.
Ergonomic & Lightweight: Unlike traditional heavy air-cooled cables, our liquid-cooled technology allows for a thinner, lighter cable, providing a premium, effortless handling experience for users.
Ultra-High Power Delivery: Engineered for high-demand hubs, offering scalable DC outputs from 120kW up to 240kW to minimize vehicle turnaround time.
Industrial-Grade Resilience: IP55 and IK10 certified, ensuring the internal cooling system and electronics are protected against dust, water, and physical impact in harsh outdoor climates.
Smart Fleet Management: Fully compatible with OCPP 1.6J for remote monitoring, dynamic load balancing, and real-time operational diagnostics.
| Parameter | Specification |
| DC Power Output | 120kW / 180kW / 240kW (High-speed options) |
| Charging Connector | IEC 62196 CCS2 (Equipped with Liquid-Cooled Technology) |
| Input Power Supply | 380VAC ±15%, 50/60Hz |
| Grid Compatibility | TN / TT / IT Earthing Systems |
| Safety Suite | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature Monitoring |
| Metering Precision | ±2% High-accuracy energy metering |
| Parameter | Specification |
| Thermal Management | Liquid-Cooled Cable System with smart derating mechanism |
| Operating Temperature | -30°C to 55°C |
| Protection Rating | IP55 (Dust/Waterproof) & IK10 (Vandal-resistant) |
| Operational Altitude | Up to 2000m |
| Installation Site | Certified for both Indoor and Outdoor deployment |
| Parameter | Specification |
| User Authentication | RFID Card & Mobile App Support |
| Network Interface | WiFi / 4G / Ethernet |
| Protocol Support | OCPP 1.6 JSON (Ready for back-end management) |
| System Upgrade | OTA (Over-the-Air) via App or OCPP |
| HMI Interface | Branded Logo LED & Multi-color Status LED indicators |
| Maximum Power | 120kw/200A 250-1000VDC ; 22kW/32A 380VAC |
| Connector | CCS1/CCS2/GBT |
| Start Mode | FRID，OCPP |
| Display | LCD:7.0 inch touch screen |
| Installation | Pedestal-mounted |
| Certification | CE，FCC |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
The PENODA 120kW Integrated DC Charger is engineered for high-performance energy delivery. Featuring a versatile dual-connector design, it supports Single-Gun Rapid Charging for maximum speed or Dual-Gun Power Sharing to charge two vehicles simultaneously. Built for speed, reliability, and ease of use, this station ensures drivers spend less time at the plug and more time on the road.
Our integrated module control design simplifies the entire lifecycle of the charger.
Simplified Maintenance: The streamlined internal layout allows a general electrician to perform setup and maintenance, eliminating the need for high-cost specialists.
Faster Deployment: Optimized production cycles mean shorter lead times and faster on-site commissioning.
Unlike traditional chargers, the PENODA 120kW uses an isolated cooling path. By separating the air duct from critical electronics, we drastically reduce dust accumulation on the power modules, significantly extending the system's operational lifespan.
IP65 Rating: Offers superior protection against water and dust ingress compared to the industry-standard IP54.
Low Noise Pollution: Operating at $\le$ 65dB, it is perfect for noise-sensitive urban environments and office parks.
Engineered for the toughest conditions on earth. This station is the premier choice for:
Coastal Regions: High resistance to salt-fog corrosion.
Industrial & Mining Sites: Dust-proof engineering for high-particle environments.
Mountainous Terrain: Reliable performance at various altitudes and temperatures.
Every component is selected to ensure a service life of over 5 years under heavy commercial use, providing a stable and secure return on investment for site operators.
| Feature | Details |
| Power Output | 120kW (Integrated) |
| Charging Modes | Single-Gun Fast Charge / Dual-Gun Power Sharing |
| Protection Grade | IP65 (Premium Weatherproofing) |
| Acoustics | 65dB (Low-noise operation) |
| Standards | Fully compliant with European (EU) Standards |
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.

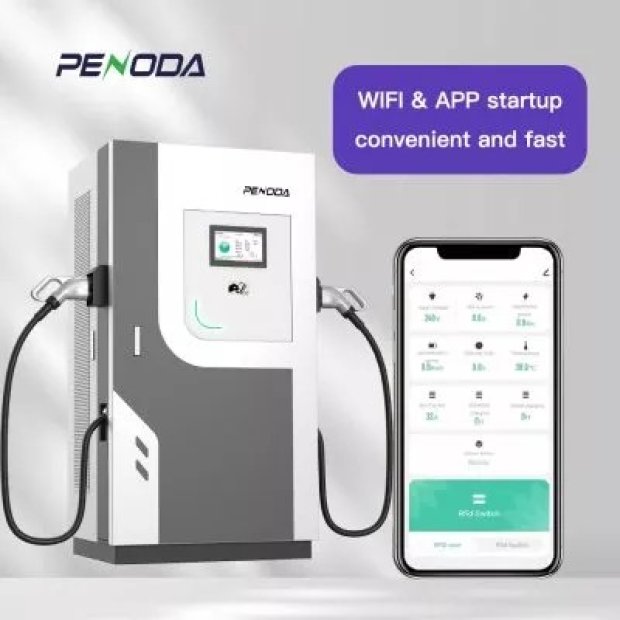

4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
The PDJ-120kW/180kW/240kW Liquid Cooled EV Charging Station is a high-power electric vehicle charger that uses advanced liquid cooling technology to efficiently manage heat and maintain performance. It is available in power configurations of 120kW, 180kW, and 240kW, designed for rapid and reliable charging.
The liquid cooling system in the PDJ series circulates coolant to dissipate heat generated during high-power charging. This ensures the charger operates efficiently and safely, even under continuous high-load conditions.
The PDJ series offers three power options: 120kW, 180kW, and 240kW. You can select the power level that best suits your charging needs and infrastructure.
The PDJ charging station is designed for both indoor and outdoor installations. Its durable construction makes it suitable for a variety of environments, including public charging stations, commercial fleets, and highway service areas.

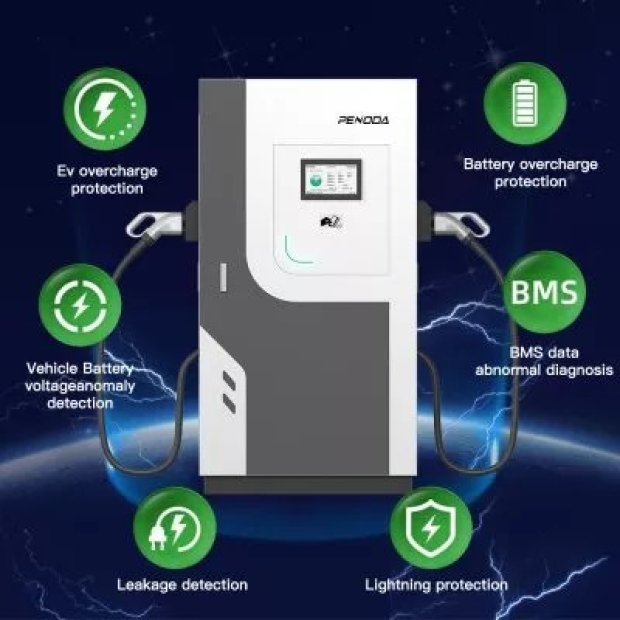

The PDJ charging station includes multiple safety mechanisms such as overcurrent protection, overvoltage protection, short circuit protection, and temperature monitoring to ensure a safe and reliable charging process.
