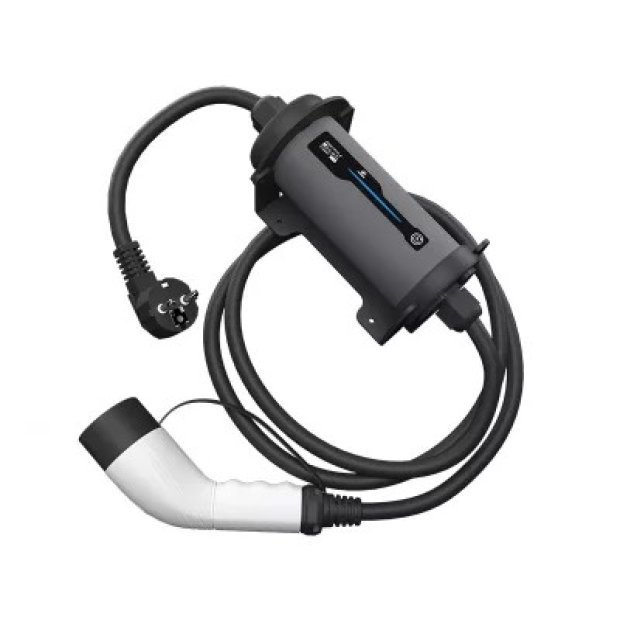

The PAG-7.4/11/22kW EV Portable Charger is a compact, portable AC charging solution designed for flexible and reliable EV charging wherever you need it. Supporting multiple power levels, this mobile charger is perfect for home use, travel, or backup charging when fixed stations are unavailable.
EV Portable Charger
EV Charging Station For Home
Type 2/Type1/GBT
Current Adjustable
Touch Button
IP65 IK10
The PAG-7.4/11/22kW Portable EV Charger is a high-performance, mobile charging solution engineered for versatility and resilience across diverse environments.
Dynamic Power Output: Supports adjustable charging speeds of 7.4kW, 11kW, and 22kW, ensuring optimal compatibility with a wide range of electric vehicle models.
Ultra-Portable Engineering: Featuring a sleek, lightweight, and compact form factor, it is designed for effortless transport and storage—ideal for both daily home use and long-distance travel.
Ruggedized Reliability: Built with premium, high-strength materials, it boasts IP67 (water/dustproof) and IK10 (impact resistance) ratings, guaranteeing stable performance in the harshest outdoor conditions.
Intelligent Interface: The intuitive information display and user-friendly interface allow for real-time monitoring and easy adjustment of charging parameters at a glance.
Advanced Safety Suite: Equipped with a comprehensive protection system—including overcurrent, overvoltage, and smart temperature monitoring—to ensure total peace of mind for both the vehicle and the user.
Charging Mode: PAG (Portable / Mobile Charging)
Charging Connector: IEC 62196 Type 2 or Type 1 (Tethered cable)
AC Power Output: * Single-phase: Up to 7.4 kW

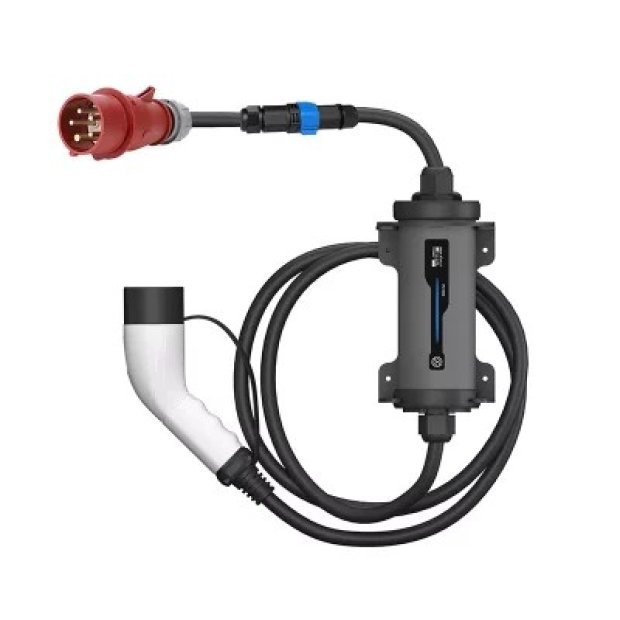

Three-phase: Up to 22 kW (Backward compatible with 11 kW / 7.4 kW)
Mounting Options: Portable (Wall-mount bracket or pedestal optional)
HMI (Interface): Brand Logo LED & Multi-color Status LED
Charging Management: Plug & Play (Automated operation)
Input Voltage: * 230V AC ± 20% (Single-phase)
400V AC ± 20% (Three-phase)
Grid Frequency: 50/60 Hz
Earthing Systems: TN / TT / IT
Safety Protections: Under Voltage (UVP), Over Voltage (OVP), Overcurrent (OCP), Relay Stuck Protection, Over-temperature Protection
Residual Current Protection: Type A + 6mA DC (Compliant with IEC 62955)
Energy Metering: High-precision metering with ±2.0% accuracy
Operating Temperature: -30°C to 55°C (with intelligent derating mechanism)
Operating Altitude: Up to 2,500 m
Protection Rating: IP67 (Full immersion protection), IK10 (Impact resistance)

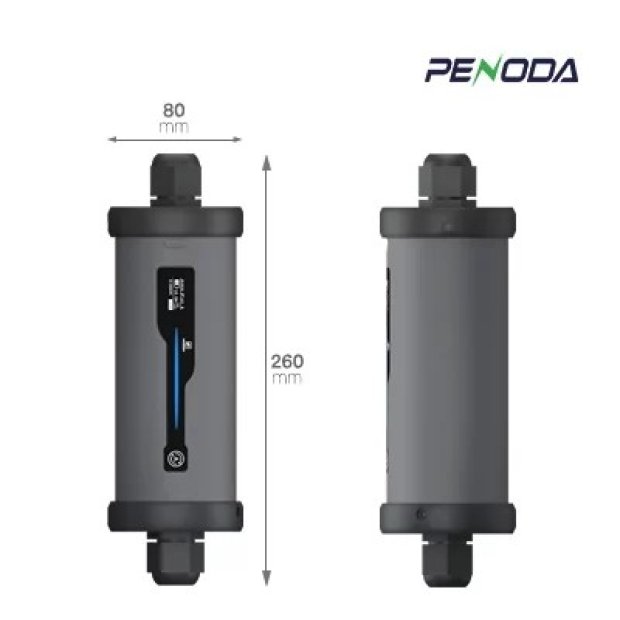

Dimensions (H×W×D): 260 × 80 × 80 mm (Ultra-compact)
Certification & Standards:
Charging: IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2
EMC: EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12
Radio (RED): EN 300 328 V2.1.1, EN 300 330 V2.1.1
| Maximum Power | 7.4kw/32A 230VAC ; 11kw/16A 400VAC；22kW/32A 400VAC |
| Connector | Type 2/Type 1/GBT |
| Dimension (H*W*D) | 260*80*80mm |
| Display | OLED 0.96″ |
| Installation | Portable/Wall-mount |
| Certification | CE |
| Ingress Protection | IP67,IK10 |
| Dynamic Load Blancing | Solar Charging |
Customizable Current: Long-press to toggle between 6A and 32A. Tailor the output to your specific power environment to ensure maximum safety and stability.
Smart Scheduling: Take control of your energy bills. Use the button-activated timer to charge during off-peak hours, saving you money while reducing your carbon footprint.
Superior Safety Protection: Our AC 30mA + DC 6mA RCD acts as a high-speed safety shield, swiftly cutting power at the first sign of abnormal current. Engineered to meet the most stringent international standards, it offers peace of mind by preventing electrical incidents before they happen.
High Performance & Versatility:
Supports three power outputs: 7.4kW, 11kW, and 22kW.
The 22kW version features downward compatibility, supporting both single-phase and three-phase charging to suit various EV models.
Multiple connector options available: Type 1, Type 2, and GBT.
Rugged & Durable Design:
IP67 Waterproof & Dustproof: Offers superior protection compared to standard IP65, ensuring stability in harsh outdoor environments.
IK10 Impact Resistance: The heavy-duty construction is designed to withstand high-strength physical impact.
Extreme Temperature Resilience: Operates reliably from -30°C to 55°C.
Intelligent & User-Friendly Interface:
Adjustable Current: Long-press the touch button to adjust the rated current from 6A to 32A to match your grid capacity.
Scheduled Charging: Includes a timer function to start charging during off-peak hours, helping users save on electricity bills.
OLED Display: Equipped with a 0.96” screen for real-time monitoring of charging status, power, and safety alerts.
Comprehensive Safety Protection:
Advanced Leakage Protection: Features Type A + 6mA DC RCD protection to prevent electric shock.
Full Suite of Safeguards: Includes Overcurrent (OCP), Overvoltage (OVP), Undervoltage (UVP), Over-temperature, and Relay Stuck protection.

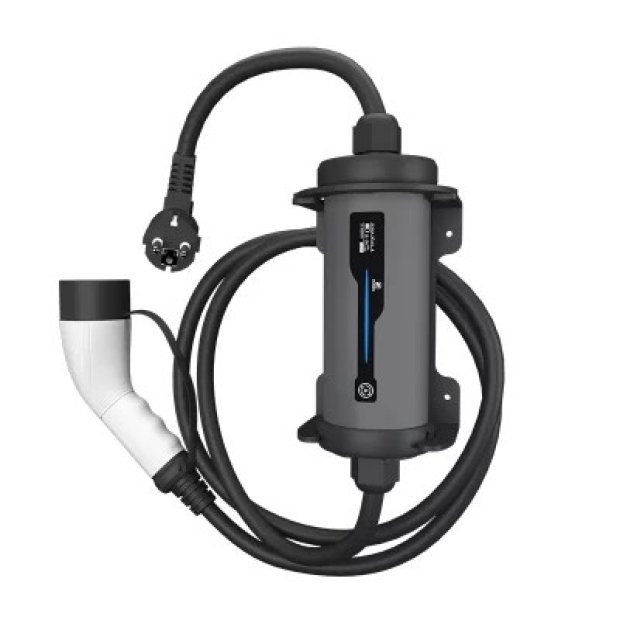

The PAG series is designed for flexibility, functioning as both a mobile charger and a fixed home station.
Connect to Power: Plug the charger's input plug into a compatible power outlet (ensure the socket meets the required amperage).
Adjust Settings: Before plugging into the car, use the touch button to select the desired charging current (e.g., 16A or 32A).
Start Charging: Insert the charging connector into your vehicle's charging port.
Monitor: Check the OLED screen and LED indicators to ensure charging has commenced.
Mounting the Bracket: Use screws to fix the mounting bracket or pedestal to the wall at a comfortable height (approx. 1.2m to 1.5m from the ground).
Secure the Controller: Slide the portable control box into the wall bracket.
Cable Management: Use a cable hook or holster (if provided) to keep the charging cable organized and off the ground to prevent tripping or damage.
Grid Check: For 22kW charging, ensure you are connected to a three-phase power supply with appropriate circuit breakers.
Storage: After use, it is recommended to store the charger in its carrying bag to protect the connectors from dust and moisture.
Visual Indicators: * Green/Constant: Standby or Fully Charged.
Blue/Flashing: Charging in progress.
Red: Error/Fault detected (check the OLED screen for specific error codes).
Yes, portable chargers for EVs do exist. They are compact devices that enable EV owners to charge their vehicles from standard electrical outlets. These chargers are convenient for home use and provide flexibility when traveling where charging stations are scarce.
Yes, you can charge your EV with a portable power station if it has the right output capacity and charging connectors compatible with your EV. Make sure it’s safe and meets your EV’s charging requirements.
There are portable electric car chargers available. These chargers are designed to be compact and lightweight, allowing electric vehicle (EV) owners to charge their vehicles from standard electrical outlets wherever they have access to power. Portable EV chargers offer convenience and flexibility, making them suitable for home use or when traveling where dedicated charging stations may not be available. They typically come with various charging capacities and are compatible with different EV models, providing an alternative or supplementary charging option to fixed charging stations.
Most EV portable chargers are designed to be compatible with a wide range of EVs, but compatibility with specific models and connector types (e.g., Type 1, Type 2) should be verified before purchase.
Consider factors such as power output, compatibility with your EV model, portability, and safety features (e.g., overcurrent protection, temperature monitoring) to ensure it meets your charging needs safely and efficiently.
