The PENODA EV Charger Level 2 (PAL-A-11.5+11.5 / 22+22 kW) is a versatile and robust AC charging station designed for residential, workplace, and public charging environments. Featuring dual outputs and flexible power options up to 22 kW, this Level 2 AC charger supports both single-phase and three-phase charging to meet a wide range of EV charging needs.
Dual gun charging station
Support customization
EV Charger Level 2
OCPP1.6J+APP
Type 2/GBT/Type 1
Directional current regulation
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button

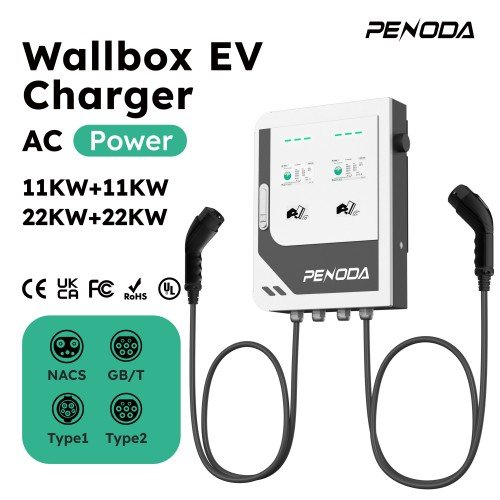

The PAL-A series redefines efficiency for multi-vehicle environments by offering high-capacity dual power outputs. Available in 11kW+11kW and 22kW+22kW configurations, this robust station is engineered to serve two EVs simultaneously without compromising performance. With its versatile support for both single-phase and three-phase AC charging, the PAL-A integrates seamlessly into residential complexes, corporate fleets, and public hubs, providing a scalable and future-proof charging infrastructure.
Simultaneous Dual Charging: Equipped with two independent Type 2 cables, allowing two vehicles to charge at full power simultaneously (up to 22kW each).
Space-Saving "Ultra-Slim" Design: At only 100mm in depth, the PAL-A is one of the most compact dual-output chargers on the market, ideal for narrow parking bays and tight wall-mount spaces.
Three-Phase High Power: Delivers up to 22kW per gun with smart downgrade compatibility for lower-capacity infrastructures.
Advanced Electrical Safety: Features integrated Type A + 6mA DC residual current protection (IEC 62955), eliminating the need for expensive external RCDs.
Flexible Installation: Supports both space-efficient Wall-Mounting and standalone Pedestal installation for maximum site versatility.
| Parameter | Specification |
| AC Power Output | 11kW + 11kW or 22kW + 22kW |
| Charging Connector | Dual IEC 62196 Type 2 Cables |
| Input Power Supply | 230VAC / 400VAC ±20% (50/60Hz) |
| Grid Compatibility | TN / TT / IT Earthing Systems |
| Residual Current Protection | Integrated Type A + 6mA DC (Per IEC 62955) |
| Metering Accuracy | ±2% High-precision energy metering |
| Parameter | Specification |
| Dimensions (WDH) | 380 x 100 x 500 mm (Ultra-compact footprint) |
| Net Weight | 18 kg |
| Protection Rating | IP55 (Weatherproof) & IK10 (Vandal-proof) |
| Operating Temperature | -30°C to 55°C (With smart derating mechanism) |
| Operational Altitude | Up to 2500m |
| Parameter | Specification |
| User Authentication | RFID, Mobile App, and Plug & Charge |
| Communication | WiFi / 4G / Ethernet |
| Protocol Support | OCPP 1.6 JSON (Ready for CMS integration) |
| System Maintenance | OTA (Over-the-Air) upgrades via App or OCPP |
| HMI Interface | Branded Logo LED & Multi-color Status LED |
| Maximum Power | 11kw/16A 400VAC；22kW/32A 400VAC |
| Connector | Type 2/GBT |
| Dimension (H*W*D) | 380*100*500 mm |
| Display | LED 4.3″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.

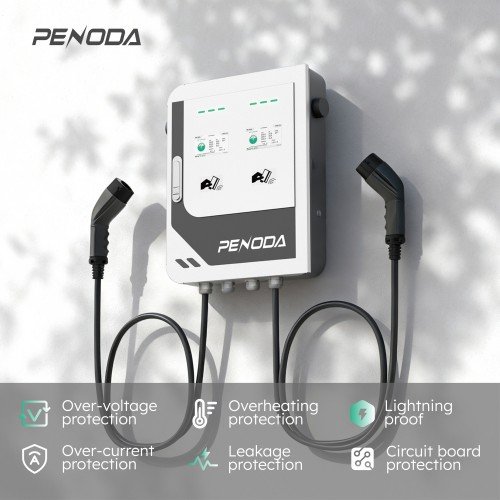

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Dual-Control Start: Enjoy flexible access via RFID IC Card for quick physical authorization or Remote App Control for starting and stopping sessions from anywhere.
Convenient Access: Every unit comes equipped with high-security IC cards, ensuring only authorized users can access the power.
Off-Peak Scheduling: Use the Reservation Charging function to schedule sessions during off-peak hours, significantly reducing electricity costs.
Full-Charge Auto-Stop: The intelligent system monitors battery levels in real-time and automatically terminates power once the battery is full, preventing overcharging and protecting battery health.
Live Data Dashboard: The integrated high-definition screen provides a comprehensive overview of your charging status.
Instant Monitoring: Track current voltage, power delivery, and estimated time to completion at a glance, keeping you fully informed throughout the process.
Engineered with a "Safety-First" philosophy, the PAL-A series incorporates a comprehensive protection suite to ensure 24/7 reliability:
Electrical Safeguards: Advanced protection against Overload, Overvoltage, Undervoltage, and Short Circuits.
Thermal Management: Active Overtemperature Monitoring to prevent overheating during high-power sessions.
Instant Response: Equipped with a high-visibility Emergency Stop button for immediate manual shutdown in critical situations.
To ensure the optimal performance and safety of your PAL-A Dual-Output EV Charger, please strictly adhere to the following electrical installation specifications.
Leakage Protection: Every AC charging station must be connected to an input power distribution box equipped with a high-quality Leakage Air Switch (RCD/MCB).
Rated Current Capacity: The leakage air switch must have a rated current of no less than 100A to ensure stable operation for dual-output sessions.
Adaptive Protection: Use high-performance Molded Case Circuit Breakers (MCCB) adapted to the specific current rating of the station.
Single Unit Requirement: For a single PAL-A charging pile, a dedicated 32A breaker is required to manage the electrical load effectively.
Current Capacity: All power cables between the circuit breaker and the AC station must support a rated current capacity of at least 32A.
Voltage Standards: * Recommended Voltage: Single-phase AC 230V ± 10%.
Frequency: 50 Hz.
Cable Core Specification: We strictly recommend using 5 * 16 mm² Copper Core Cables to ensure minimal voltage drop and maximum thermal safety during high-load charging.
Mandatory Grounding: During the installation process, the Protective Earth (PE) cable must be securely grounded.
Reliability: Proper grounding is essential to protect both the user and the vehicle's electronic systems from electrical surges and leakage.
A Level 2 charger for electric vehicles (EVs) refers to a charging station that provides higher power and faster charging compared to standard household outlets (Level 1 chargers).
a Level 2 EV charger is generally around 3 to 5 times faster than a Level 1 charger. This increased charging speed makes Level 2 chargers more suitable for residential, workplace, and public charging applications where EV owners need to recharge their vehicles more quickly and efficiently. The exact charging rate can vary based on the charger’s power output and the specific electric vehicle being charged.
Level 2 charging typically refers to electric vehicle (EV) charging stations that operate at 240 volts AC (alternating current). The power output of Level 2 chargers can vary, but they generally range from 3.3 kW to 22 kW or even higher, depending on the specific charger model and installation setup.
If you own an electric vehicle and find yourself needing faster charging times or greater convenience in charging, investing in a Level 2 charger is likely worth it. It provides faster charging speeds, convenience, and flexibility in managing your EV’s charging needs, especially if you have the ability to install one at home or at your workplace.
