The Penoda 40kW dual gun DC EV charger is designed for commercial parking, fleet, hotel, and workplace charging applications. Supports OCPP 1.6J, RFID, APP control, and CCS1/CCS2/GBT/NACS standards.

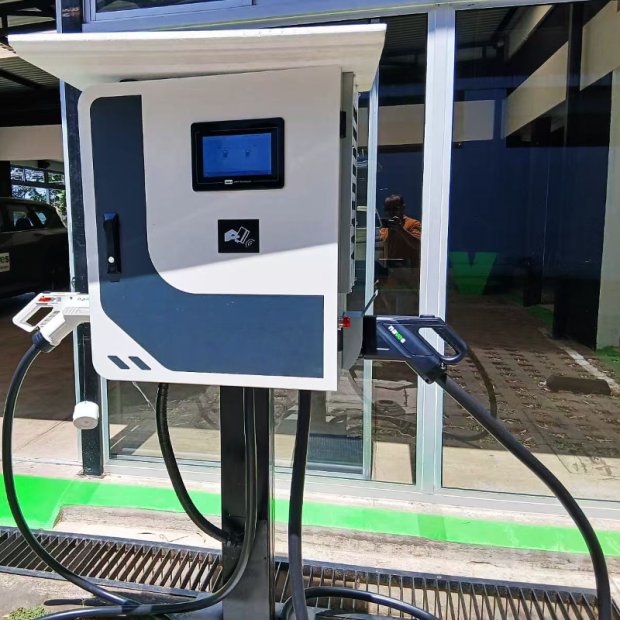

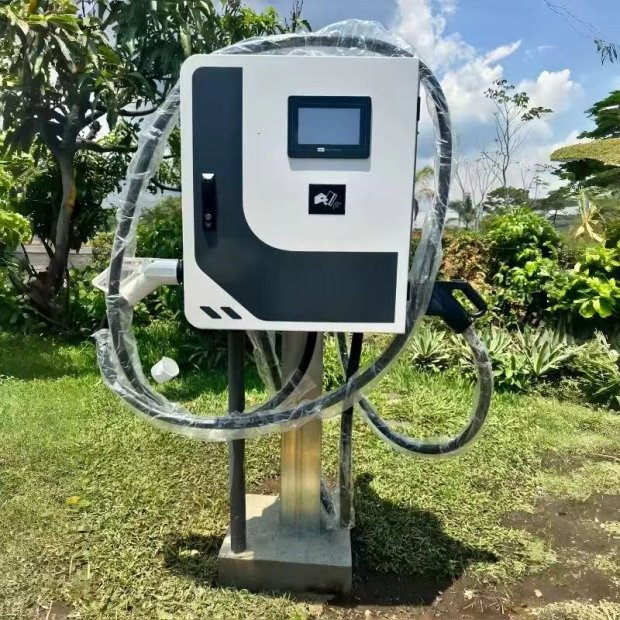

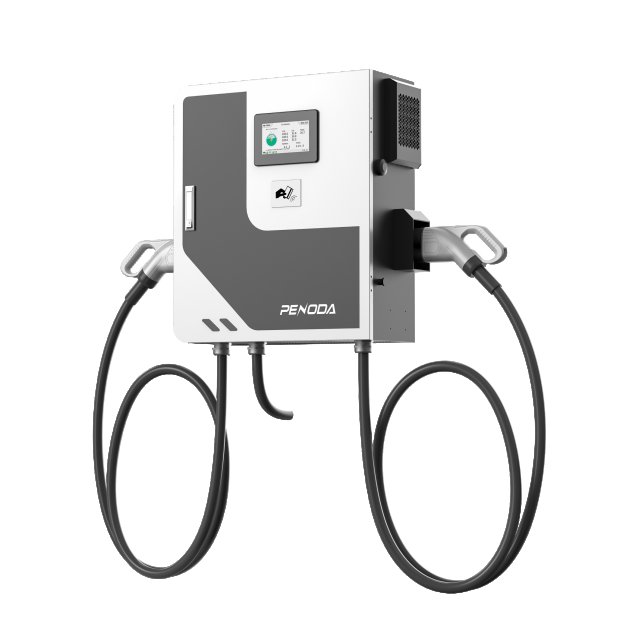

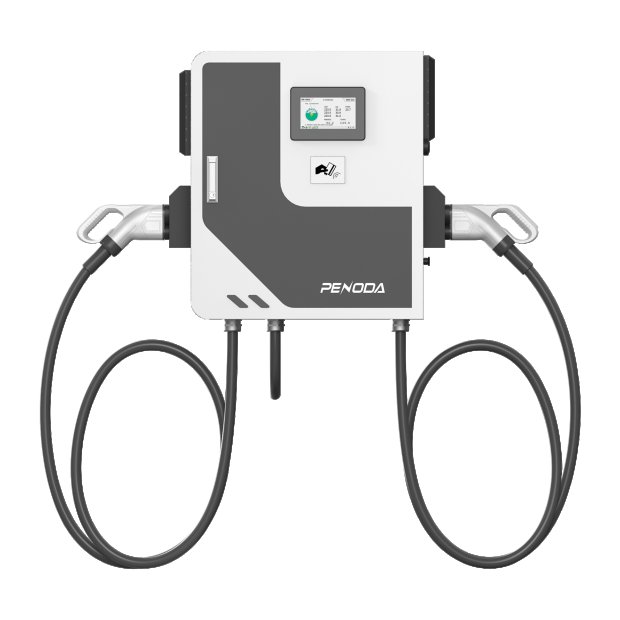

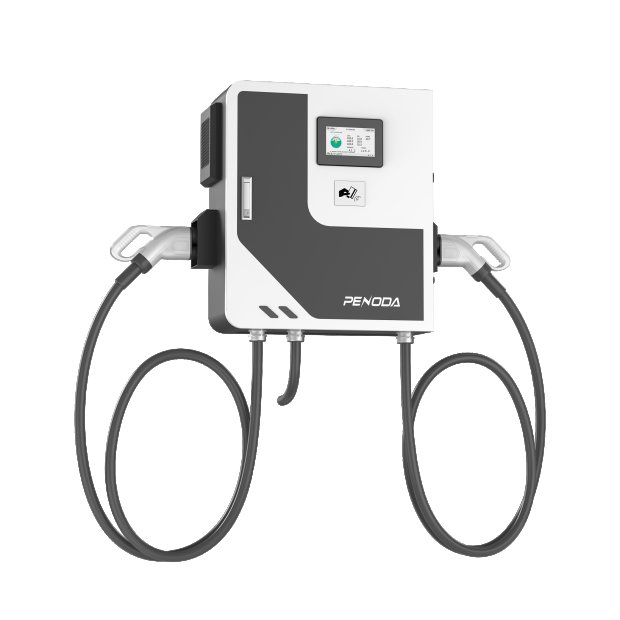

The Penoda 40kW Dual Guns DC EV Charging Station is a compact and high-efficiency fast charging solution designed for commercial EV charging applications. Equipped with dual charging connectors, the charger supports simultaneous charging for two electric vehicles, significantly improving charging efficiency and station utilization for public parking lots, fleet operations, shopping malls, dealerships, highways, and commercial buildings.
Designed with intelligent power distribution technology, the charger provides stable DC fast charging performance while maintaining high conversion efficiency and low energy consumption. The system supports multiple charging standards including CCS1, CCS2, GB/T, and NACS, making it compatible with global EV models and international markets. Similar industry products from BENY and TEISON emphasize dual-gun flexibility, OCPP connectivity, compact installation, and commercial-grade reliability. )
The charger adopts an industrial-grade steel enclosure with IP55 protection rating, allowing reliable outdoor operation under harsh environmental conditions such as rain, dust, heat, and humidity. Integrated smart communication functions including Ethernet, WiFi, and 4G support enable remote monitoring, firmware upgrades, payment management, and charging data analysis through OCPP 1.6J protocol.
Penoda’s 40kW DC fast charger is engineered with multiple safety protections including over-voltage protection, over-current protection, leakage protection, grounding protection, surge protection, and emergency stop functions to ensure safe charging for both vehicles and users. Industry competitors also highlight similar protection systems and high conversion efficiency above 95%.
The modern wall-mounted or floor-mounted design saves installation space while delivering stable fast charging performance. With a 7-inch intelligent touchscreen display and RFID/App operation support, users can easily start, monitor, and manage charging sessions.
Product Name: Penoda 40kW Dual Guns DC EV Charging Station
Charger Type: DC Fast Charger
Output Power: 40kw
Charging Connectors: Dual Guns
Connector Standards: CCS1 / CCS2 / GB/T / NACS Optional
Installation Type: Wall-mounted or Floor-mounted
Display: 7-inch LCD Touch Screen
Communication: Ethernet / WiFi / 4G
Protocol: OCPP 1.6J
Protection Level: IP55
Cooling Method: Intelligent Air Cooling
Authentication: RFID / APP / Plug & Charge Optional
Application: Commercial / Public / Fleet / Highway Charging
Operating Temperature: -30°C to +50°C
Certifications: CE / CB / RoHS Optional
Technical parameters are aligned with mainstream commercial dual-gun DC charger standards found in industry competitor products.
Item | Specification |
Rated Power | 40kW |
Input Voltage | AC380V ±15% |
Input Frequency | 50Hz / 60Hz |
Input Connection | 3P + N + PE |
Rated Input Current | 66A |
Output Voltage Range | DC150V – DC1000V |
Max Output Current | 133A |
Charging Interface | CCS1 / CCS2 / GB/T / NACS |
Number of Guns | 2 |
Efficiency | ≥95% |
Power Factor | ≥0.99 |
Network Connection | Ethernet / WiFi / 4G |
User Authentication | RFID / Mobile APP |
Screen | 7-inch LCD Touchscreen |
Cable Length | 5m Standard |
Protection Rating | IP55 |
Cooling System | Forced Air Cooling |
Operating Temperature | -30°C ~ +50°C |
Humidity | 5% ~ 95% |
Installation Method | Wall-mounted / Floor-mounted |
Communication Protocol | OCPP 1.6J |
Safety Protection | Over-voltage / Over-current / Leakage / Short Circuit / Surge Protection |
Emergency Stop | Supported |
Supports simultaneous charging for two EVs, improving operational efficiency and reducing waiting time in commercial charging stations.
Compatible with CCS1, CCS2, GB/T, and NACS charging standards, suitable for international EV markets.
Smart power management technology dynamically distributes charging power between two vehicles for optimized charging performance.
Compact wall-mounted or floor-mounted structure saves installation space while maintaining powerful DC fast charging capability. Similar compact commercial designs are widely used by leading charging brands.
Supports Ethernet, WiFi, and 4G communication with OCPP 1.6J for remote monitoring, backend management, and software updates.
Integrated with multiple protection systems:
Over-voltage protection
Over-current protection
Leakage protection
Short-circuit protection
Surge protection
Ground protection
Emergency stop
Conversion efficiency reaches ≥95%, reducing energy loss and operating costs. )
IP55 protection ensures stable outdoor operation in various weather conditions including rain, dust, and high temperatures.
Equipped with a 7-inch touchscreen display, RFID authentication, APP control, and intuitive charging interface.
Ideal for:
Public charging stations
Shopping malls
Commercial parking lots
Fleet charging depots
Highway service areas
Car dealerships
Office buildings
Residential communities
Ensure stable AC power supply availability.
Confirm adequate installation space and ventilation.
Verify grounding system compliance.
For floor-mounted installation:
Prepare concrete foundation.
Fix anchor bolts according to installation template.
For wall-mounted installation:
Ensure wall load-bearing capacity meets equipment requirements.
Connect AC input cables (3P+N+PE).
Connect grounding cables securely.
Confirm correct phase sequence and voltage range.
Connect Ethernet, WiFi, or 4G communication.
Configure OCPP backend platform if required.
Secure charger firmly to wall or pedestal.
Arrange charging cables properly.
Perform insulation and grounding tests.
Power on equipment.
Test charging function and communication system.
Configure RFID cards or APP authorization.
Verify dual-gun charging operation.
Complete final safety inspection.
Professional installation by certified electricians is recommended for commercial DC fast chargers.
Yes. The Penoda 40kW DC charger supports dual-gun simultaneous charging with intelligent power distribution.
Q2: Which charging standards are supported?
The charger supports CCS1, CCS2, GB/T, and NACS connectors depending on market requirements.
Q3: Does the charger support OCPP?
Yes. It supports OCPP 1.6J protocol for backend integration and remote management.
Q4: Is the charger suitable for outdoor installation?
Yes. The charger features IP55 protection and industrial-grade weather resistance for outdoor environments.
Q5: What payment methods are supported?
RFID card, mobile APP, and optional online payment systems are supported.
Q6: What is the charging efficiency?
The charger efficiency is ≥95%, ensuring stable and energy-saving operation.
Q7: What safety protections are included?
The charger includes:Over-voltage protection、Over-current protection、Leakage protection、Short-circuit protection、Ground protection、Surge protection、Emergency stop
Q8: Can the charger be customized?
Yes. Connector standards, branding, language, cable length, payment systems, and appearance customization are available.
Q9: What environments is the charger suitable for?
It is suitable for commercial parking lots, public charging stations, fleet depots, shopping malls, highways, and office buildings.
Q10: Does the charger support remote monitoring?
Yes. Operators can remotely monitor charging status, energy usage, alarms, and firmware updates through cloud platforms.
