Designed exclusively for the North and South American commercial markets, this patented 21kW and 28kW Single-Phase DC Fast Charger is engineered 100% in-house. It brilliantly bridges the gap between slow AC charging and expensive Level 3 infrastructure by bypassing the vehicle's onboard charger to deliver rapid DC power directly from a standard single-phase grid.
Manufactured in our TUV and ISO dual-certified factory, it features a premium 7-inch anti-glare touch screen, supporting RFID, NFC, QR Code, APP, and ISO 15118 Plug & Charge. Secured by OCPP 1.6J (TLS 1.2) via 4G/Wi-Fi/LAN, it offers unparalleled B2B performance and limitless OEM/ODM customization.
level 2 ev charging station
21kW Single Phase DC EV Charger
Home Charging in the North American Market
OCPP1.6J+APP+DLB
CCS1/CCS2/GBT
4G/WIFI/RFID
Home use or business ev charger
Fast Charge
IP55 IK10
E-stop Button

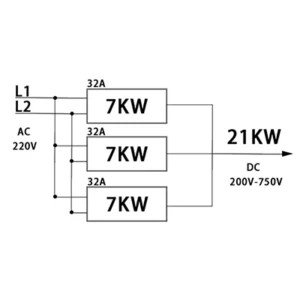

To deliver commercial-grade performance on standard electrical systems, our proprietary R&D team utilized an advanced parallel DC module design. We configure three 7kW DC modules in parallel for the 21kW station, and four 7kW DC modules for the 28kW station. This innovative architecture ensures grid-friendly installation without the prohibitive infrastructure costs of high-megawatt stations, making it the best-in-class Level 2 DC charger for modern drivers across North and South America.
Tailored for the Americas' Electrical GridsWe provide optimized solutions based on total electrical service capacity, ensuring absolute safety and flexibility for regional grid standards:
100A Service: We recommend the 14kW or 21kW DC stations—the perfect balance of speed and safety for standard electrical panels.
200A Service: Upgrade to our 28kW DC station for ultra-fast turnaround times in high-demand locations.
Adjustable Power Settings: The PDA-21kW allows for flexible current settings to match specific regional electrical loads (e.g., At 64A: 14% charge per hour; At 32A: 7% charge per hour).
Charging Efficiency: A Practical Case Study
To illustrate the rapid efficiency of the PENODA 21kW DC Charger, let’s look at a real-world example using one of the most popular EVs across the Americas: the Ford Mustang Mach-E (Extended Range AWD).
Vehicle Battery Capacity: 98.7 kWh
Estimated Range: ~260 miles
Charger Configuration: 21 kW Output / 96A Input
Performance Breakdown:
0% to 100% Charge: Approximately 4.5 hours.
Hourly Recovery: On average, it restores 21% of the battery or 54 miles of range per hour—delivering up to 3–4 times faster charging than standard Level 2 AC chargers.
Charging Mode: PDA-21KW/28KW (Compact DC Fast Charging)
Charging Connector: CCS1/CCS2/GBT/NACS (Tesla)
DC Power Output: 21kw/28kw
Mounting Options: Wall-mounted or Pedestal
HMI (Interface): Integrated Logo LED and Status LED indicators
Load Management: Dynamic control via dedicated App
Power Supply: 230/400VAC ± 20%, 50/60Hz
Grid Systems: TN / TT / IT compatible
Safety Protection: Under Voltage (UVP), Over Voltage (OVP), Over Current (OCP), Relay Stuck detection, and Over Temperature protection
Energy Metering: High-precision monitoring with ±2% accuracy
Operating Temperature: -30°C to 55°C (equipped with intelligent derating mechanism)
Operating Altitude: Up to 2500m
Environmental Rating: IP55 (Weatherproof) and IK10 (High-Impact Resistance)
Suitability: Certified for both Indoor and Outdoor installation
Dimensions: 450 * 150 * 650 mm
Weight: 60kg (Lightweight design for streamlined installation)
Network Interface: WiFi / 4G / Ethernet
User Authentication: RFID, App-based control, and Plug & Charge
Backend Protocol: OCPP 1.6 JSON
Firmware Updates: OTA (Over-the-Air) upgrades via App or OCPP backend
| Application | Public/Commercial Parking |
| Apartment, Hotel, and Workplace | |
| Heavy-duty Truck and Bus Charging | |
| Fast Charging Stations near highways | |
| Maximum Power | 21kw/42A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 450*150*650 mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Equipped with integrated card payments, intuitive App control, and OCPP 1.6 compatibility, our 21kW DC station offers a seamless charging experience. With versatile WiFi, 4G, and Ethernet connectivity, it ensures reliable performance for any commercial or residential setting.

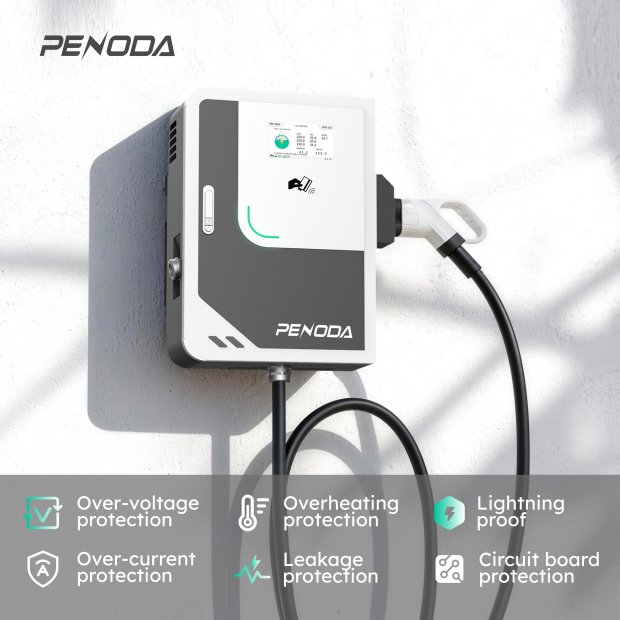

Your safety is our priority. Featuring advanced safeguards against electrical leaks, surges, overheating, and lightning strikes, our rugged waterproof stations are designed for total durability. Charge with absolute confidence.
Global Leaders in High-Performance DC Fast Charging Solutions
A robust DC fast-charging infrastructure is the backbone of the electric vehicle revolution. At PENODA, we are dedicated to accelerating this transition. As a premier DC fast charger manufacturer and supplier headquartered in China, we provide high-speed charging systems that set the industry standard for efficiency and reliability.
Accredited by international regulatory bodies, PENODA ensures that every product complies with global safety and performance benchmarks. By combining competitive pricing with world-class customer service and streamlined global logistics, we ensure your infrastructure is delivered on time, every time. Partner with PENODA today to power the future of mobility.
The PENODA Advantage: Engineering Excellence in EV Infrastructure
Precision Manufacturing: As a prominent DC charger manufacturer, PENODA delivers high-performance solutions designed to redefine the fast-charging experience. Every unit reflects our commitment to durability and technical excellence.
Global Export Expertise: PENODA is more than a manufacturer; we are a leading global exporter of DC EV chargers. Our mission is to bridge borders, bringing advanced charging technology to electric vehicle owners across the globe.
Innovation at the Forefront: Based in the heart of China’s EV technology hub, PENODA stands at the vanguard of sustainable transportation. Through continuous innovation and a customer-centric approach, our DC EV chargers are engineered to elevate the electric mobility journey.
1. 100% In-House R&D & Limitless OEM/ODM: Break free from generic public molds. Featuring an exclusive patented design, we offer unrestricted OEM and ODM customization directly from our TUV and ISO certified factory.
2. Grid-Friendly Single-Phase Power: Precision-engineered 21kW and 28kW outputs that bypass the vehicle's onboard charger, providing rapid DC power while perfectly complying with North and South American commercial single-phase grid limits.
3. Advanced Parallel Module Architecture: Built for extreme stability. The system utilizes three 7kW (21kW) or four 7kW (28kW) parallel DC modules, ensuring highly efficient power conversion, ultimate system reliability, and effortless maintenance.
4. Ergonomic & Lightweight Cables: Designed for effortless daily handling. The highly efficient 60A-rated (21kW) and 80A-rated (28kW) cables are significantly lighter and more maneuverable than bulky traditional Level 3 equipment, enhancing the user experience.
5. 7-Inch Anti-Glare Touch Screen: A premium outdoor HD display ensuring flawless user interaction, clear OEM branding opportunities, and high visibility even in direct sunlight.
6. Frictionless Smart Access: Ultimate user convenience with versatile start-up options including RFID, NFC, QR Code scanning, smart APP control, and futuristic ISO 15118 Plug & Charge.
7. Bank-Grade Data Security & Connectivity: Operate with peace of mind. Connected via 4G, Wi-Fi, or LAN, the system runs on the OCPP 1.6J protocol with top-tier TLS 1.2 encryption to protect user data and commercial billing.
8. Remote Diagnosis & OTA Updates: Minimize your operational expenses (OPEX). Facility managers can remotely monitor charging sessions, perform proactive fault diagnosis, and push Over-The-Air (OTA) firmware updates without costly on-site technician visits.
9. Extreme Weather Durability (IP55/IK10): Encased in a rugged, highly durable shell designed to survive harsh outdoor environments—from freezing North American winters to intense South American heat.
10. Multi-Layer Commercial Safety: Safety without compromise. The station integrates enterprise-grade electrical protection against overvoltage, overcurrent, leakage, and surges, ensuring 24/7 secure operation in public networks.
Corporate Offices & Workplaces: The perfect wall-mounted DC charger for executives and employees. It delivers rapid 21kW/28kW charging during the workday, utilizing the intelligent Plug & Charge or RFID/NFC features for effortless access control.
Boutique Hotels & Premium Retail: Enhance your property's aesthetic and service. The patented, sleek design and vibrant 7-inch touch screen provide a luxury charging experience that matches high-end commercial standards.
Exclusive OEM/ODM Partnerships: Because we own the patent, the software code, and the hardware design, B2B clients can rebrand this unique charger without worrying about identical generic models flooding the market.
Preparation: Verify the power supply supports 230V/400VAC ± 20% and ensure the site has adequate electrical capacity for a 21kW or 28kW load.
Mounting: Secure the backplate to a wall or floor pedestal and lock the unit firmly with safety screws.
Wiring: With power OFF, connect the input cables (L/N/PE or L1/L2/L3/N/PE) and ensure the PE wire is solidly grounded.
Connectivity: Configure WiFi, 4G, or Ethernet to enable APP management and OCPP backend functions.
Commissioning: Ensure the E-stop is released, power on the breaker, and start a test charge via the APP or an RFID card.
Note: Installation must be performed by a certified electrician.
Standard AC chargers are bottlenecked by the vehicle's internal onboard charger, severely limiting charging speed. Our 21kW and 28kW stations deliver direct current (DC) straight to the battery, offering charging speeds 3 to 4 times faster than standard AC units. It’s the ultimate upgrade for commercial properties requiring rapid turnaround times on a standard single-phase grid.
Absolutely. We are the true source factory and hold the exclusive patent for this wall-mounted design. Manufactured in our TUV and ISO dual-certified facility, we offer limitless OEM and ODM customization—from the exterior casing to the 7-inch touch screen software interface—ensuring your brand stands out without the risk of identical generic models.
Not at all. We engineered this station with ergonomics in mind. Instead of bulky traditional Level 3 cables, our 21kW model uses a highly flexible 60A-rated cable, and the 28kW uses an 80A-rated cable. This lightweight design makes them incredibly easy to maneuver for all drivers, providing a premium, user-centric experience.
The station provides a frictionless experience through its vibrant 7-inch anti-glare touch screen. It fully supports RFID activation cards, NFC, QR Code scanning, smart APP control, and the highly advanced ISO 15118 Plug & Charge technology, ensuring seamless operation for diverse commercial networks.
We provide bank-grade data security for your operations. The charger connects via 4G, Wi-Fi, or LAN and utilizes the backend OCPP 1.6J protocol encrypted with top-tier TLS 1.2. This ensures all your commercial billing data, user information, and remote OTA (Over-The-Air) firmware updates are strictly protected against cyber threats.
