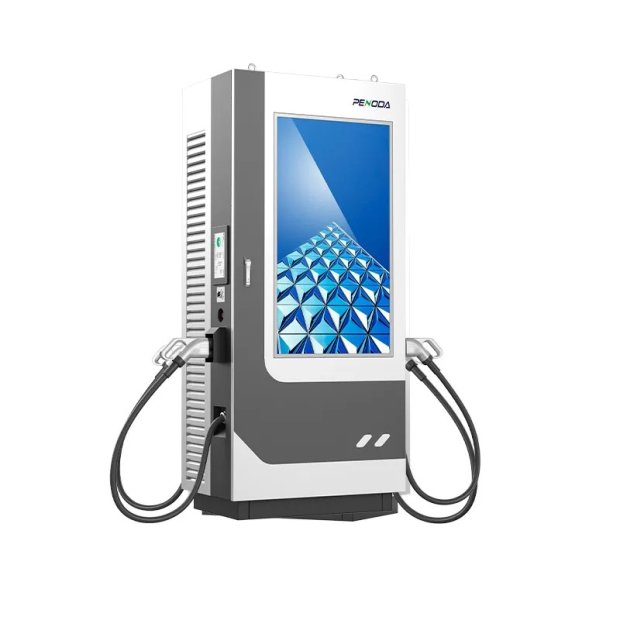

Make a monumental impact. The PD-X 55-Inch DC EV Charging Advertising Station is our flagship digital out-of-home (DOOH) billboard, combining ultra-fast EV charging with cinematic visual marketing.
Designed to dominate high-traffic commercial hubs, premium resorts, and major industrial centers, this heavy-duty powerhouse features weather-resistant casing, intelligent wireless management (WiFi/4G/App), and versatile charging connectors. Supported entirely by our in-house engineering experts, it delivers unmatched reliability and unparalleled brand exposure.
55 Inch advertisement screen and 10.1 inch touch screen
2 Guns DC Advertising Charger
Android OS / Windows OS / TV Board
Commercial DC EV Charger
OCPP 1.6 & Billing capabilities via OCPP
CCS1/CCS2/GBT
Ethernet&WIFI&4G
Remote monitor &appointment &diagnosis &upgrade;
RFID &Credit card payment
IP55 IK10
E-stop Button
The Ultimate Fusion of High-Power Charging and Immersive DOOH Advertising

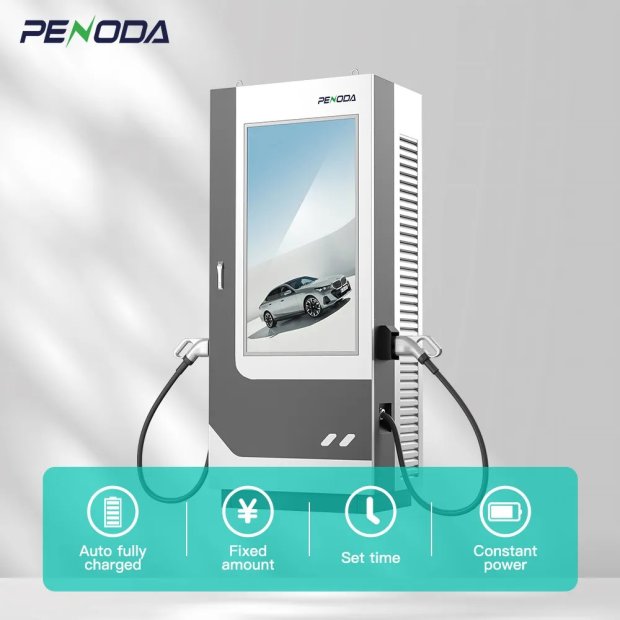

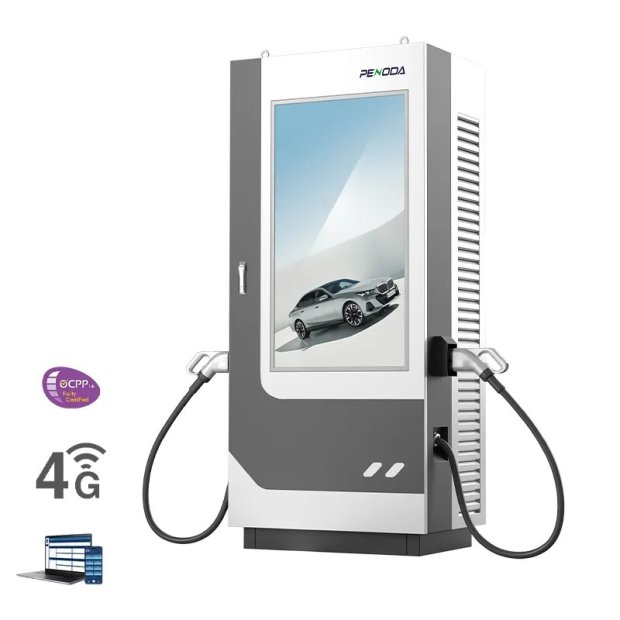

Step into the future of commercial infrastructure with the 55-Inch DC EV Charging Advertising Station. This flagship model transforms any standard parking facility into a high-yielding media landmark. The massive, high-luminance 55-inch display commands attention day and night, offering a cinematic canvas for premium advertisements, local promotions, and corporate communications.
Underneath this stunning exterior lies a beast of performance. Engineered for rigorous, non-stop operation, this system provides rapid power delivery to multiple vehicles simultaneously. Whether deployed at a bustling highway rest stop, an upscale hospitality venue, or a heavy-duty corporate depot, its industrial-grade architecture guarantees robust performance and a rapid return on investment.
Charging mode:PD-X
Charging connector:lEC 62196 Type 2 cable
DC power output:Three phase up to 80kW with downgrade compatibility
Mounting options:Floor-mounted
HMI:Logo LED, Status LED
Load management:Via App
Maximum Power:
60kw/120A 400VAC±15%；80kW/160A 400VAC±15%

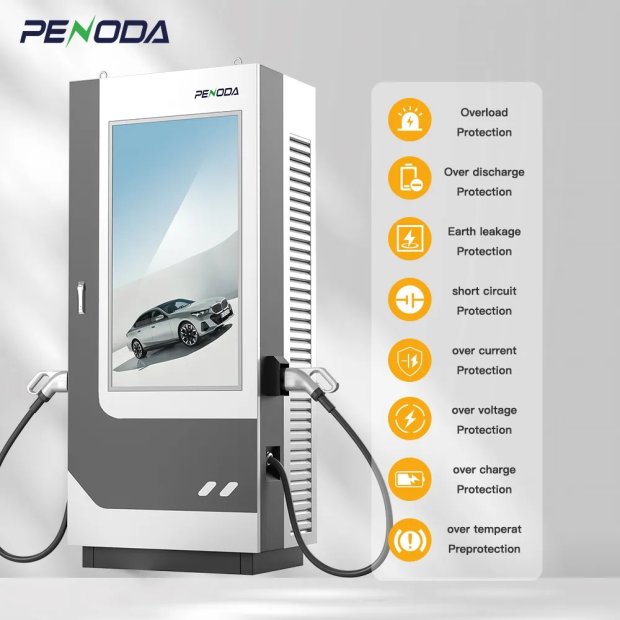

Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：700*425*1500 mm
Weight:120 kg
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON Software upgrade:OTA via App, OCPP
| Maximum Power | 60kw/120A 400VAC±15%；80kW/160A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 2900*780*1690 mm |
| Display | LED Touch 10.1″ |
| Installation | Floor-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
| Our Services | 1.OEM/ODM Support |
| 2.2-Year Warranty | |
| 3.10-15 days lead time | |
| 4.Rigorous Quality Control | |
| 5.Industry-Leading Manufacturer |
Product Overview:
This innovative electric vehicle (EV) charging station seamlessly integrates EV fast charging with advertising capabilities, making it an ideal solution for outdoor installations. It features a 55-inch high-brightness digital advertising display and is available with a range of power options (60kW, 90kW, 120kW, 180kW, or 240kW) DC fast chargers with dual plugs, allowing simultaneous charging of two electric vehicles. This multifunctional and versatile charging station is perfect for high-traffic locations such as shopping malls, gas stations, and public parking lots, offering both efficient charging services and the opportunity to generate additional revenue through advertising.
Flagship Performance & Technical Excellence
Massive 55" Visual Billboard: Maximize your advertising CPM. The spectacular 55-inch high-definition screen guarantees maximum visibility for MP4 videos and dynamic graphics, creating an immersive experience for passing traffic and charging EV owners alike.
Vandal-Resistant, Industrial Build: Engineered for longevity. Instead of standard plastics, this unit boasts an exceptionally tough, weather-defying outer shell (IP55/IK10). The highly durable hardware is specifically reinforced to thrive in extreme climates and demanding industrial environments.

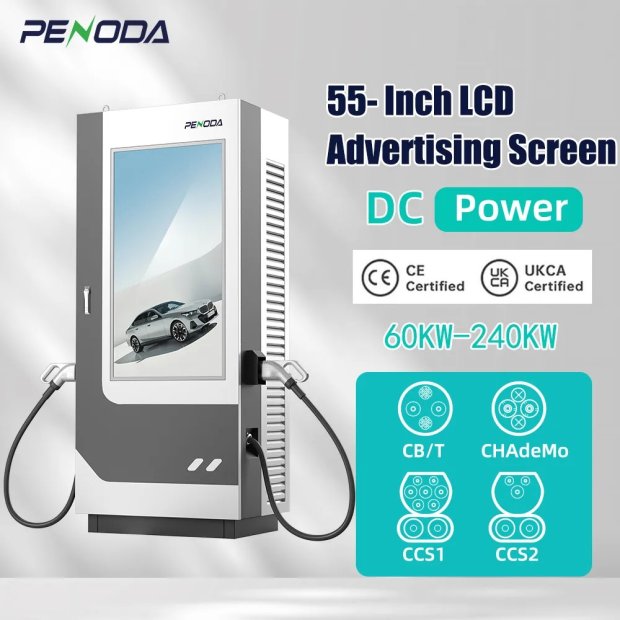

Versatile Charging Connectors: Never worry about compatibility. Equipped with a comprehensive suite of plug options (CCS1, CCS2, GB/T) and powerful DC output ranges, it effortlessly services any electric vehicle on the market.

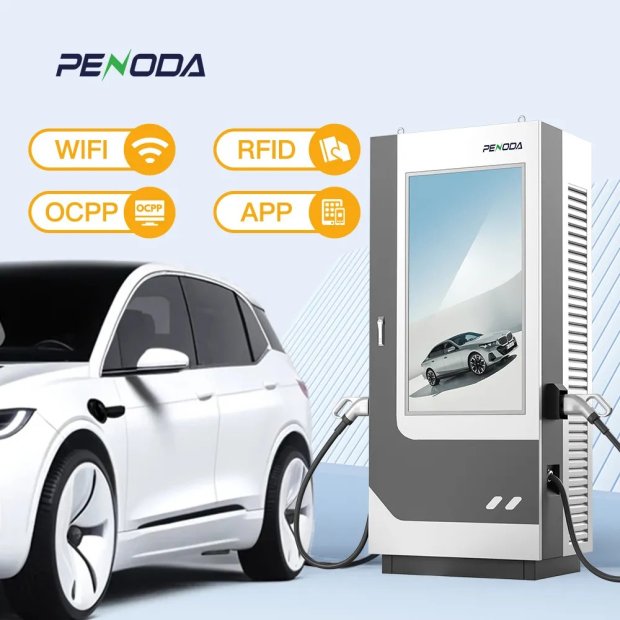

Intelligent Cloud Ecosystem (4G/WiFi/App): Operate with absolute precision. Through comprehensive 4G, WiFi, and Ethernet integration, facility managers can oversee real-time charging metrics, update digital campaigns remotely, and offer users seamless payment processing via a customized mobile application or RFID.
Proprietary R&D Technology: We own the core technology. Backed entirely by our dedicated in-house development team, this station offers superior software stability, continuous remote upgrades, and the agility to adapt to custom commercial requirements without relying on third-party fixes.
Prime Venues for Deployment
Premium Hospitality & Resorts: Provide VIP guests with top-tier charging speeds while showcasing breathtaking visuals of hotel amenities, dining experiences, or luxury brand partnerships on the massive 55-inch display.
Large-Scale Commercial Fleets: Streamline logistics with an intelligent charging hub. Fleet operators benefit from robust App-based monitoring, while the heavy-duty hardware easily endures the relentless cycles of commercial transit.
Industrial Hubs & Manufacturing Sites: Deploy a truly rugged power solution for factory personnel and logistics vehicles. The hardened exterior is purpose-built to survive in tough, high-demand industrial zones.
High-Traffic Retail Plazas & Highways: Turn dwell time into premium media revenue. The towering screen acts as a local landmark, drawing EV drivers in while broadcasting lucrative, high-impact digital campaigns.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.
4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
We offer scalable high-power configurations tailored to your commercial demands, ranging from 60kW, 90kW, and 120kW, up to ultra-fast 180kW and 240kW options. This ensures rapid turnaround times for both standard consumer EVs and heavy-duty commercial fleets.
Absolutely. Backed by our dedicated in-house R&D team, this charger is equipped with universal plug standards. You can configure the dual-gun setup with CHAdeMO, CCS Combo 1, CCS Combo 2, or GB/T connectors, ensuring seamless compatibility for any vehicle visiting your hotel, factory, or retail plaza.
The cinematic 55-inch high-luminance display operates via a smart cloud-based management system. Through stable WiFi, 4G, or Ethernet connections, operators can remotely upload, schedule, and track MP4 videos or high-resolution images (JPEG/PNG) without needing to be on-site.
Yes. Moving beyond standard designs, this unit features a highly durable hard shell with IP55 and IK10 ratings. The heavy-duty hardware is specifically engineered to thrive in demanding conditions, resisting extreme temperatures, heavy rain, and the high-frequency wear-and-tear of open parking lots and factory depots.
Yes, total operational control is at your fingertips. Integrated with the OCPP 1.6J protocol, facility managers can effortlessly track real-time charging metrics and perform over-the-air (OTA) software upgrades. For drivers, it supports a frictionless payment experience via a dedicated smart App, RFID card, or credit card swiping.
By merging ultra-fast DC charging with a towering 55-inch DOOH (Digital Out-Of-Home) billboard, operators generate powerful dual revenue streams. You profit from both the EV charging service fees and the premium advertising space, monetizing driver dwell time while drastically increasing brand exposure for your commercial venue.
Yes, the dynamic dual-gun configuration allows two vehicles to fast-charge at the exact same time. This maximizes the utility of your parking space, prevents queueing, and improves user throughput for busy commercial centers and fleet operations.
