The PENODA Adve combines robust fast charging capabilities with a high-visibility 45-inch digital adv, creating a powerful dual-purpose solution for commercial EV charging hubs, high-traffic retail areas, highway stations, and urban charging plazas. Designed to maximize both utility and revenue, this charging station not only delivers efficient DC charging but also engages customers through dynami
55 Inch advertisement screen and 10.1 inch touch screen
2 Guns DC Advertising Charger
Android OS / Windows OS / TV Board
Commercial DC EV Charger
OCPP 1.6 & Billing capabilities via OCPP
CCS1/CCS2/GBT
Ethernet&WIFI&4G
Remote monitor &appointment &diagnosis &upgrade;
RFID &Credit card payment
IP55 IK10
E-stop Button
PENODA 45-Inch Media-Integrated DC EV Charging Station: High-Impact Advertising Meets Rapid Charging.
The PENODA series redefined commercial EV infrastructure by integrating a 55-inch HD advertising display into a robust DC fast charger. Engineered for high-traffic environments like retail hubs and corporate centers, it offers significant commercial value through dual-revenue streams: charging fees and premium ad placements. With an IP54 protection rating and extreme temperature resilience, this state-of-the-art station delivers reliable, high-speed charging while providing a captive audience for high-impact visual marketing.
Integrated 55-Inch Media Hub: Features a massive, high-impact 55-inch digital display designed for premium advertising, brand awareness, and information broadcasting.
High-Power Performance: Delivering up to 80kW of DC fast charging with smart downgrade compatibility (60kW/80kW) to serve a wide range of EVs.
Dual Revenue Stream: An ideal solution for commercial operators looking to combine EV charging fees with high-value digital advertising revenue.
Industrial-Grade Reliability: Certified IP55 and IK10 protection ensures consistent operation in demanding outdoor high-traffic environments.
Seamless Management: Full OCPP 1.6J integration for remote monitoring, advertising content management, and smart billing.
| Parameter | Specification |
| Maximum Power Options | 60kW / 120A (400VAC ±15%) 80kW / 160A (400VAC ±15%) |
| Charging Connector | IEC 62196 Type 2 (Dual-gun options available) |
| Residual Current Protection | Integrated Type A + 6mA DC (Per IEC 62955) |
| Safety Suite | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature Monitoring |
| Metering Accuracy | ±2% Precision energy metering |
| Parameter | Specification |
| Advertising Display | 45-Inch High-Definition LED/LCD Panel |
| HMI Interface | Branded Logo LED & Multi-color Status LED indicators |
| User Authentication | RFID Card, Mobile App, and Plug & Charge |

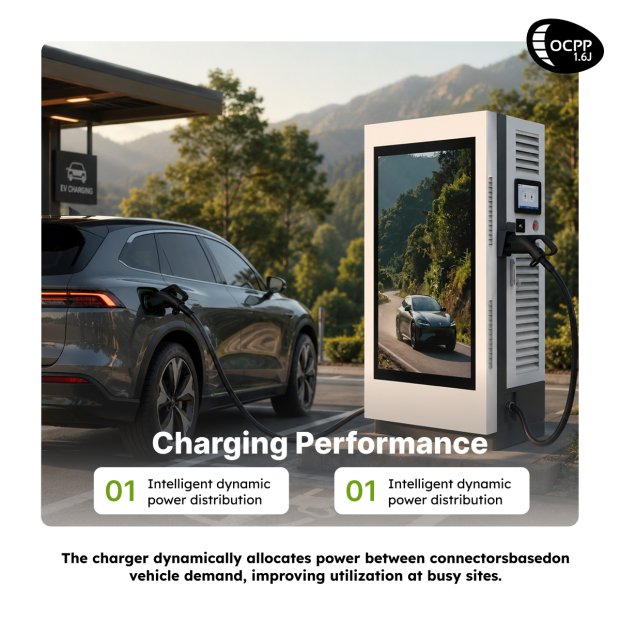

| Load Management | Real-time power distribution via dedicated App |
| Parameter | Specification |
| Dimensions (WDH) | 700 * 425 * 1500 mm |
| Net Weight | 150 kg |
| Operating Temperature | -30°C to 55°C (with intelligent derating mechanism) |
| Protection Rating | IP55 (Dust/Waterproof) & IK10 (Vandal-proof) |
| Mounting | Secure Floor-mounted design |
| Parameter | Specification |
| Network Interface | WiFi / 4G / Ethernet |
| Protocol | OCPP 1.6 JSON (Ready for CMS integration) |
| System Upgrade | OTA (Over-the-Air) via App or OCPP |
| Maximum Power | 60kw/120A 400VAC±15%；80kW/160A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 2900*780*1690 mm |
| Display | LED Touch 10.1″ |
| Installation | Floor-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
| Our Services | 1.OEM/ODM Support |
| 2.2-Year Warranty | |
| 3.10-15 days lead time | |
| 4.Rigorous Quality Control | |
| 5.Industry-Leading Manufacturer |
Product Overview:
This innovative electric vehicle (EV) charging station seamlessly integrates EV fast charging with advertising capabilities, making it an ideal solution for outdoor installations. It features a 55-inch high-brightness digital advertising display and is available with a range of power options (60kW, 90kW, 120kW, 180kW, or 240kW) DC fast chargers with dual plugs, allowing simultaneous charging of two electric vehicles. This multifunctional and versatile charging station is perfect for high-traffic locations such as shopping malls, gas stations, and public parking lots, offering both efficient charging services and the opportunity to generate additional revenue through advertising.
The PD-X Series is a state-of-the-art solution designed for high-traffic commercial environments. By integrating a high-performance 45-inch HD display with ultra-fast DC charging technology, this station transforms a standard utility into a high-value revenue-generating asset.
45" HD Touchscreen: A massive, high-brightness LCD panel ensures vibrant visibility under direct sunlight, day or night.
Flexible Content Management: Supports 4K video (MP4/MOV) and high-res imagery (JPEG/PNG) via USB or Remote CMS.
Seamless Visual Experience: Built-in Image Stitching technology compensates for gaps, delivering flawless, large-format visuals.
Integrated Entertainment: Enhance the user experience by playing promotional videos or entertainment during the charging session.
Scalable Power Options: Available in 60kW, 90kW, 120kW, 180kW, and 240kW configurations to meet any fleet or public demand.

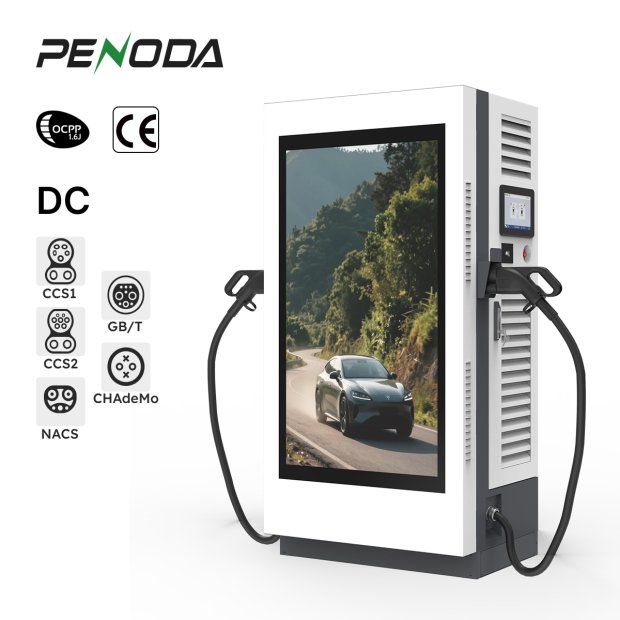

Universal Compatibility: Supports CCS1, CCS2, CHAdeMO, and GB/T standards with intelligent protocol self-recognition.
Multi-Vehicle Efficiency: Smart "Turn-by-Turn" charging allows one station to manage up to five vehicles per night automatically.
Smart Ad CMS: Remote content updates, scheduling, and performance analytics to maximize advertising ROI.

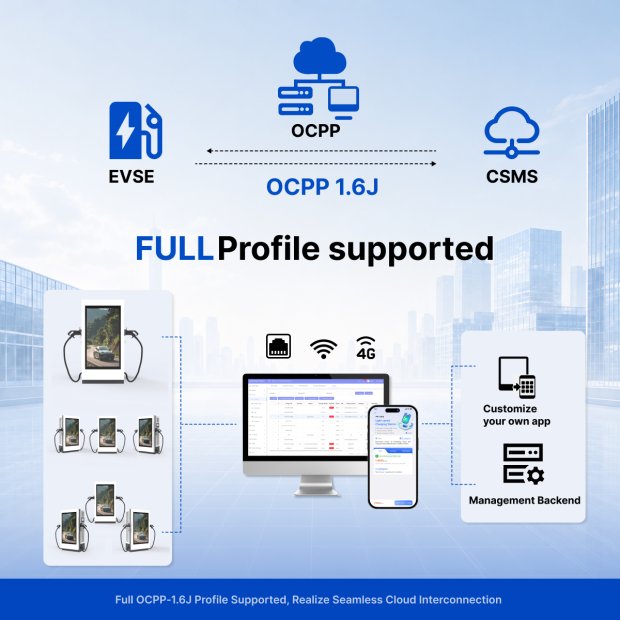

Open Cloud Platform: Fully compliant with OCPP 1.6J for seamless integration into existing management networks.
Multiple Payment Gateways: Supports Credit Cards, RFID, and Mobile Payments for a frictionless customer experience.
| Category | Specification Details |
| Display | 55-Inch High-Brightness HD LCD (Sunlight-readable) |
| Input Voltage | AC 260V – 530V (Three-phase) |
| Output Voltage | DC 200V – 1000V (Wide range support) |
| Charging Power | 60kW / 90kW / 120kW / 180kW / 240kW |
| Connectivity | WiFi / 4G / Ethernet / CAN / RS485 |
| Protection Rating | IP54 (Outdoor weather-resistant) & IK10 (Impact-resistant) |
| Operating Temp | -30°C to 55°C (Isolated air duct for dust-free electronics) |
| Efficiency | 96% with ultra-low radiation |
Comprehensive Protection: Includes UVP, OVP, OCP, Short-circuit, Insulation monitoring, and Phase-loss protection.
Emergency Infrastructure: Immediate suspension via Emergency Stop switch and automated BMS fault response.
Fire-Safe Housing: Full metal closed-shell design to ensure maximum fire prevention in public areas.
Weatherproof Construction: Engineered with corrosion-resistant materials to withstand rain, extreme heat, and sub-zero temperatures.
Commercial Centers & Malls: Capture high footfall and generate premium ad revenue.
Gas Stations & Highway Rests: Provide fast charging and engaging content for long-distance travelers.
Public Parking Hubs: Deliver a modern, sustainable charging infrastructure for urban commuters.
Dual Revenue Streams: Earn from both charging fees and premium 24/7 advertising placements.
Brand Dominance: Increase brand recognition through a high-visibility digital presence.
High Turnaround: Fast charging and smart scheduling increase station utilization and profitability.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.

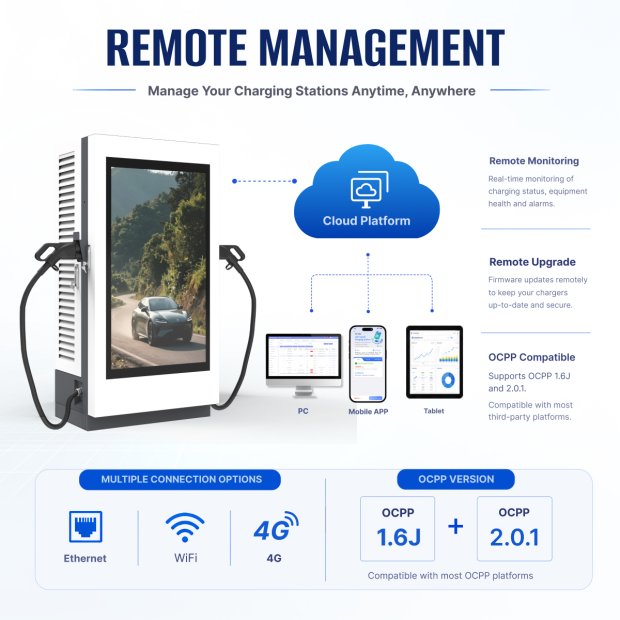

4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
The charging station is available with the following power options: 60kW, 90kW, 120kW, 180kW, and 240kW. You can choose the power level that best suits your location’s needs, whether it’s for high-traffic areas requiring fast charging or larger spaces needing more robust charging capabilities.
The charging station supports multiple EV connector types, including:
（1）CHAdeMo
（2）CCS Combo 1
（3）CCS Combo 2
（4）GB/T This ensures compatibility with a wide range of electric vehicles on the market.
The station features a 55-inch high-definition LCD touchscreen that supports video playback (MP4, .mov formats) and image files (JPEG, PNG). It also has image stitching capabilities for seamless content display. Content can be uploaded via a USB drive and updated remotely through the integrated advertising management system.
Yes, the charging station comes with a smart advertising management system that allows operators to remotely update advertisements, schedule content, track data, and analyze performance. This ensures that the ads can be tailored to different audiences and locations for maximum impact.
Yes, the station is designed with weatherproof materials that ensure reliable operation in harsh outdoor environments. It can withstand extreme weather conditions such as heavy rain, high heat, and cold temperatures, making it ideal for outdoor installations.
The charging station offers an additional revenue stream by displaying advertisements. Businesses can promote their products and services, generating income beyond the charging fees. The high-brightness display ensures ads remain visible in both daytime and nighttime, maximizing exposure.
The station supports various payment options, including mobile payments (e.g., QR codes, NFC), credit card payments, and other digital payment methods. This flexibility provides a convenient charging experience for EV drivers.
Yes, the station supports dual charging plugs, allowing it to charge two electric vehicles simultaneously, improving efficiency and making it suitable for high-traffic areas.
The charging time varies depending on the selected power option (60kW, 90kW, 120kW, 180kW, or 240kW). The station is designed for fast charging, significantly reducing waiting times for EV drivers compared to standard chargers.

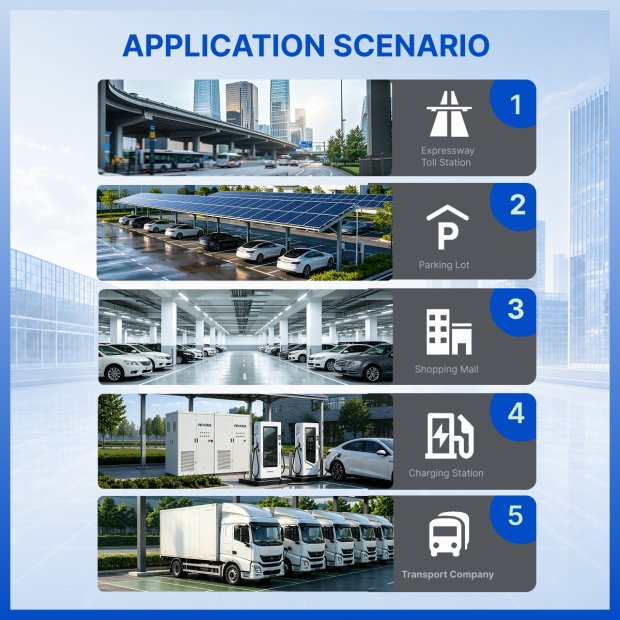

This charging station is ideal for high-traffic locations such as:
Shopping malls and commercial areas
Gas stations and highway rest areas
Public parking lots These locations attract large numbers of potential customers and benefit from the dual functionality of EV charging and advertising.
Yes, the display can also be used for entertainment or informational content, making the charging process more engaging for EV drivers while they wait. It can display news, weather updates, videos, or even promotions to improve customer satisfaction.
