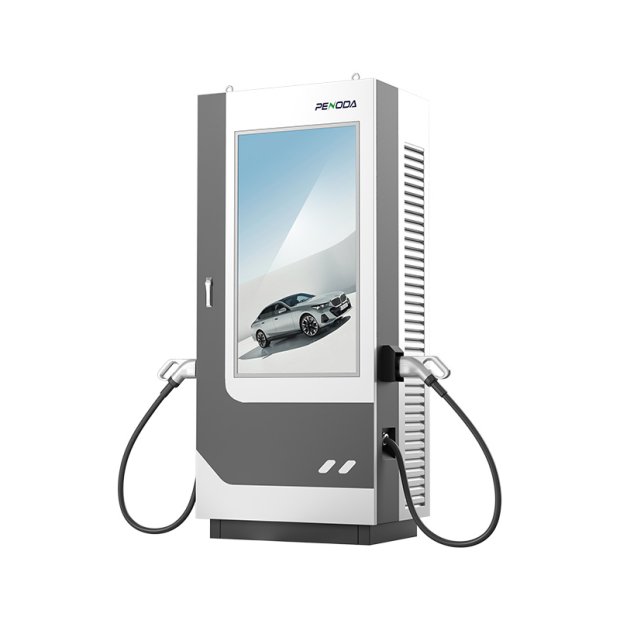

The PD-X 35-Inch DC EV Charging Advertising Station is a highly profitable commercial media platform engineered for high-demand environments. Combining rapid dual-gun charging capabilities with a striking 35-inch digital display, it allows operators to generate advertising revenue while delivering essential EV charging services.
Featuring an independent 10.1-inch interactive touch screen for drivers, a rugged IP55/IK10 hard shell, and seamless smart connectivity (WiFi/4G/APP), this station is built to perform flawlessly in commercial centers, luxury hotels, industrial factories, and heavy-duty fleet depots.
35 Inch advertisement screen and 10.1 inch touch screen
2 Guns DC Advertising Charger
Android OS / Windows OS / TV Board
Commercial DC EV Charger
OCPP 1.6 & Billing capabilities via OCPP
CCS1/CCS2/GBT
Ethernet&WIFI&4G
Remote monitor &appointment &diagnosis &upgrade;
RFID &Credit card payment
IP55 IK10
E-stop Button
Transform Your Parking Space Into a Smart Profit Center
The PD-X 35-Inch DC EV Charging Advertising Station redefines commercial electric vehicle infrastructure. It is not merely a fast charger; it is a dynamic digital out-of-home (DOOH) advertising generator. Designed to capture the attention of captive EV drivers and passing pedestrians, the ultra-bright 35-inch LCD screen supports high-definition video and image playback, allowing you to monetize dwell time or promote in-house brand services.
Beyond its media capabilities, this station is built upon a foundation of industrial-grade durability and advanced engineering. Equipped with universal plug standards to accommodate any EV model, it ensures that no customer is turned away. From the harsh outdoor conditions of public retail plazas to the rigorous daily demands of factory environments, this station guarantees continuous, high-efficiency operation.
Charging mode:PD-X
Charging connector:CCS1/CCS2/GBT
DC power output:Three phase up to 80kW with downgrade compatibility
Mounting options:Floor mounted
HMI:Logo LED, Status LED
Load management:Via App
Maximum Power:
60kw/120A 400VAC±15%；80kW/160A 400VAC±15%
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：700*425*1500 mm
Weight:120 kg
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON Software upgrade:OTA via App, OCPP
| Maximum Power | 60kw/120A 400VAC±15%；80kW/160A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 2900*780*1690 mm |
| Display | LED Touch 10.1″ |
| Installation | Floor-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
| Our Services | 1.OEM/ODM Support |
| 2.2-Year Warranty | |
| 3.10-15 days lead time | |
| 4.Rigorous Quality Control | |
| 5.Industry-Leading Manufacturer |
Product Overview:
This innovative electric vehicle (EV) charging station seamlessly integrates EV fast charging with advertising capabilities, making it an ideal solution for outdoor installations. It features a 35-inch high-brightness digital advertising display and is available with a range of power options (60kW, 90kW, 120kW, 180kW, or 240kW) DC fast chargers with dual plugs, allowing simultaneous charging of two electric vehicles. This multifunctional and versatile charging station is perfect for high-traffic locations such as shopping malls, gas stations, and public parking lots, offering both efficient charging services and the opportunity to generate additional revenue through advertising.
Engineered for Maximum ROI & Brand ExposureTurn downtime into prime time. The ultra-bright 35-inch LCD screen supports MP4 video and high-res image playback via USB or remote cloud management. Capture the attention of passing pedestrians and captive EV drivers to generate immediate advertising revenue or promote in-house services.
Ultra-Rugged Hard Shell & Durable HardwareBuilt to survive the toughest environments. Unlike standard indoor units, our station features a hard and highly durable shell rated at IP55 and IK10. Whether it's exposed to harsh weather in an open parking lot or the demanding, high-traffic conditions of a factory or fleet depot, the heavy-duty hardware ensures uninterrupted, long-term operation without degradation.
Universal Plug Standards for Broad CompatibilityNever turn a customer away. We provide comprehensive plug standards tailored to your regional market, including CCS1, CCS2, and GB/T options. The dual-gun configuration (available in 60kW to 240kW outputs) allows two vehicles to fast-charge simultaneously, drastically reducing queue times.
Smart Connectivity: WiFi, 4G & APP IntegrationTotal control is at your fingertips. Integrated with WiFi, 4G, and Ethernet modules, this station connects seamlessly to the OCPP 1.6J backend. Operators can effortlessly manage billing, monitor real-time charging status, update ad content remotely, and offer drivers a frictionless experience through a dedicated mobile APP, RFID, or credit card payment.
Backed by Our Own R&D TeamQuality you can trust, straight from the source. Penoda isn't just an assembler; we are driven by our own dedicated R&D team. This means we provide continuous OTA software upgrades, rapid technical troubleshooting, and deep customization capabilities to meet the specific OEM/ODM needs of your commercial enterprise.
Additional Benefits for Operators:
（1）Advertising Revenue:
In addition to charging fees, operators can generate additional revenue by displaying advertisements. Businesses can advertise their products, services, or promotions, turning the charging station into a powerful commercial tool.
（2）Brand Exposure:
The advertising display provides a high-visibility platform for brand promotion. It helps increase brand recognition among passing pedestrians and drivers, making it an excellent choice for businesses looking to enhance their brand presence.
（3）Increased Charging Station Usage:
The combination of fast charging services and advertising content makes this charging station more attractive to customers, boosting overall usage and profitability
Ideal Commercial Applications
Hotels & Hospitality: Elevate guest satisfaction with premium fast-charging amenities while promoting hotel restaurants, spa services, or local partners directly on the 35-inch screen.
Commercial Fleets: Empower fleet managers with smart APP tracking and rapid turnaround times. The durable hardware withstands the rigorous, high-frequency usage of commercial fleet vehicles.
Factories & Industrial Parks: Provide reliable workplace charging for employees and corporate vehicles. The ruggedized exterior is perfectly suited for demanding industrial environments.
Retail Plazas & Gas Stations: Attract high-value EV drivers and monetize their charging dwell time through targeted digital advertisements in high-traffic commercial zones.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.
4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
The charging station is available with the following power options: 60kW, 90kW, 120kW, 180kW, and 240kW. You can choose the power level that best suits your location’s needs, whether it’s for high-traffic areas requiring fast charging or larger spaces needing more robust charging capabilities.
The charging station supports multiple EV connector types, including:
（1）CHAdeMo
（2）CCS Combo 1
（3）CCS Combo 2
（4）GB/T This ensures compatibility with a wide range of electric vehicles on the market.
The station features a 55-inch high-definition LCD touchscreen that supports video playback (MP4, .mov formats) and image files (JPEG, PNG). It also has image stitching capabilities for seamless content display. Content can be uploaded via a USB drive and updated remotely through the integrated advertising management system.
Yes, the charging station comes with a smart advertising management system that allows operators to remotely update advertisements, schedule content, track data, and analyze performance. This ensures that the ads can be tailored to different audiences and locations for maximum impact.
Yes, the station is designed with weatherproof materials that ensure reliable operation in harsh outdoor environments. It can withstand extreme weather conditions such as heavy rain, high heat, and cold temperatures, making it ideal for outdoor installations.
The charging station offers an additional revenue stream by displaying advertisements. Businesses can promote their products and services, generating income beyond the charging fees. The high-brightness display ensures ads remain visible in both daytime and nighttime, maximizing exposure.
The station supports various payment options, including mobile payments (e.g., QR codes, NFC), credit card payments, and other digital payment methods. This flexibility provides a convenient charging experience for EV drivers.
Yes, the station supports dual charging plugs, allowing it to charge two electric vehicles simultaneously, improving efficiency and making it suitable for high-traffic areas.
The charging time varies depending on the selected power option (60kW, 90kW, 120kW, 180kW, or 240kW). The station is designed for fast charging, significantly reducing waiting times for EV drivers compared to standard chargers.
This charging station is ideal for high-traffic locations such as:
Shopping malls and commercial areas
Gas stations and highway rest areas
Public parking lots These locations attract large numbers of potential customers and benefit from the dual functionality of EV charging and advertising.
Yes, the display can also be used for entertainment or informational content, making the charging process more engaging for EV drivers while they wait. It can display news, weather updates, videos, or even promotions to improve customer satisfaction.
