The DC 60+AC 22kW Commercial Electric Vehicle Charging Station enables simultaneous DC and AC charging through intelligent power management, allowing two vehicles to charge efficiently without interference. With card payment, app control, OCPP 1.6 compatibility, and WiFi/4G/Ethernet connectivity, it integrates easily into commercial charging networks.
Commercial Electric Vehicle Charging Station
OCPP1.6J+APP
TYPE2+CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
Credit Card Payment
fast charge
IP55 IK10
E-stop button
The PDBT series is a versatile, high-capacity charging hub engineered to bridge the gap between rapid transit and destination charging. By combining 60kW DC fast charging with 22kW AC versatility, this dual-mode station caters to the full spectrum of EV charging needs. While the DC output ensures quick turnaround for time-sensitive users, the AC output provides a cost-effective solution for longer-duration parking. Supporting global standards including CCS and CHAdeMO, the PDBT integrates seamlessly into workplaces, retail plazas, and public hubs. It is a future-proof investment designed for operational durability, enabling businesses to support green mobility while unlocking new revenue streams through smart billing.
The PDBT series represents the next evolution in commercial charging, combining High-Speed DC Power with Versatile AC Charging in a single, robust pedestal. This "Hybrid" architecture allows business owners to serve two vehicles simultaneously, catering to both express users and long-stay visitors, maximizing the utility and ROI of every charging spot.
The Hybrid Advantage: Features a high-velocity 60kW DC (CCS2) connector for rapid top-ups and a 22kW AC (Type 2) cable for destination charging, providing the ultimate flexibility for retail centers, workplaces, and fleet depots.
Simultaneous Charging: Intelligent power management allows for dual-vehicle sessions without cross-interference, ensuring efficient energy distribution between the DC and AC outputs.
Ruggedized for Public Use: Engineered with a heavy-duty IP55/IK10 enclosure, the PDBT is built to thrive in high-traffic outdoor environments, resisting both harsh weather and physical impacts.
Smart Grid Compatibility: Designed with a wide input tolerance (400VAC ±20%) and supporting TN/TT/IT earthing systems, ensuring stable deployment across diverse global electrical grids.
| Parameter | Specification |
| Output Configuration | DC 60kW + AC 22kW (Dual Output) |
| Connectors | IEC 62196 CCS 2 (DC) + Type 2 (AC) |
| Power Supply | 400VAC ± 20%, 50/60Hz (Three-Phase) |
| Safety Shield | UVP, OVP, OCP, Relay Stuck Protection, Over-Temperature |
| Metering Precision | Billing-grade accuracy (±2%) |
| Parameter | Specification |
| Form Factor | 700 x 425 x 1500 mm (Standing Pedestal) |
| Environmental Protection | IP55 (Weatherproof) & IK10 (Vandal-resistant) |
| Operating Range | -30°C to 55°C (Smart derating mechanism) |
| Max Altitude | 2500m |
| HMI Interface | Branded Logo LED & Multi-color Status LED Indicators |
| Parameter | Specification |
| Communication Interface | WiFi / 4G / Ethernet |
| User Authentication | RFID Card, Mobile App, and Plug & Charge |
| Smart Protocol | OCPP 1.6 JSON (CMS & Backend Ready) |
| Firmware Management | OTA (Over-the-Air) upgrades via App or OCPP |
| Load Management | Intelligent balancing via App-based control |
| Maximum Power | DC:60KW AC:22KW/192A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 700x425x1500 mm |
| Display | LED 10.1″ touch |
| Installation | Floor-Standing |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual DC 60+AC 22kW outputs, our charging station offers a seamless EV charging experience.

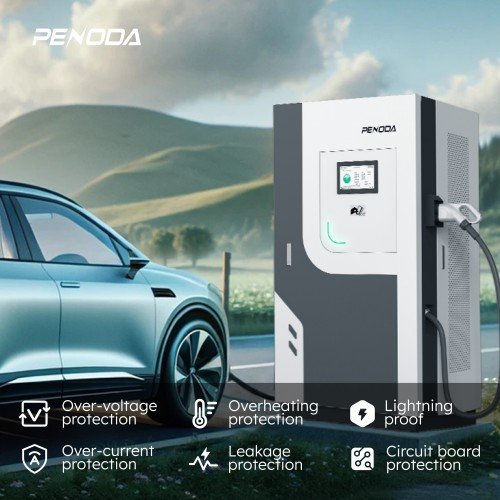

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.
4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.
4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
You can choose a commercial EV charging station that meets your operational needs, supports sustainability goals, and enhances the value of your business or property. Consulting with EV charging experts or providers can also provide valuable insights and assistance in selecting the right solution.
Commercial EV charging stations may offer Level 2 chargers, which provide moderate charging speeds suitable for longer parking durations, and DC fast chargers (Level 3), which offer rapid charging for quick stops. DC fast chargers typically range from 50 kW to 350 kW or higher.
A commercial EV charging station is a dedicated facility equipped with chargers designed to recharge electric vehicles. It is typically located in public areas, workplaces, or commercial properties.
Trends include advancements in charger technology to support higher power outputs and faster charging times, integration of smart features for user convenience, and expansion of charging networks to improve accessibility and coverage.
The charger adheres to stringent industry standards and certifications, including CE, IEC, and EN certifications such as IEC 61851-1, DIN 70121, ISO 15118, SAE J1772 和IEC 61851-23., ensuring reliable and safe operation.
