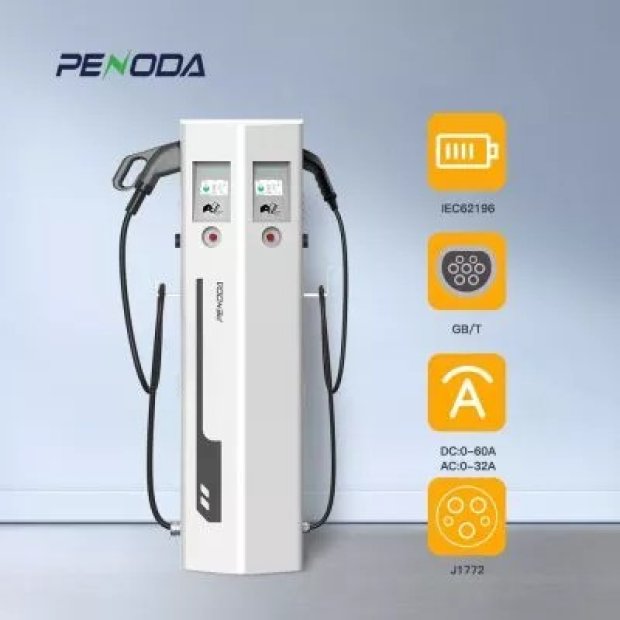

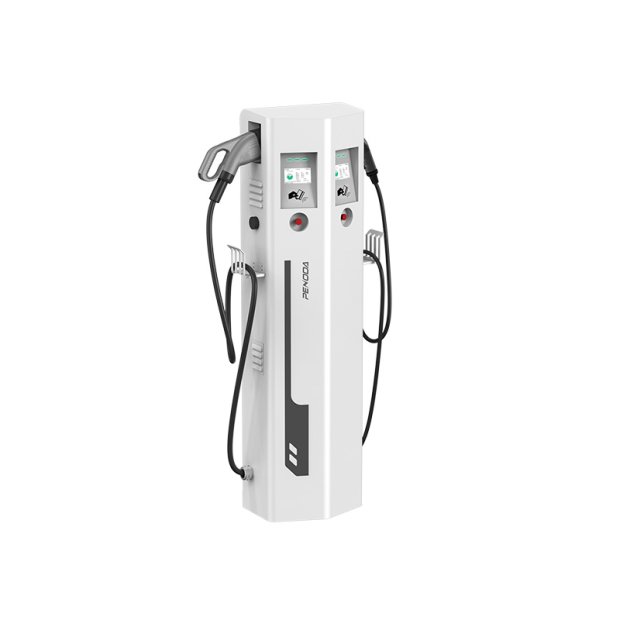

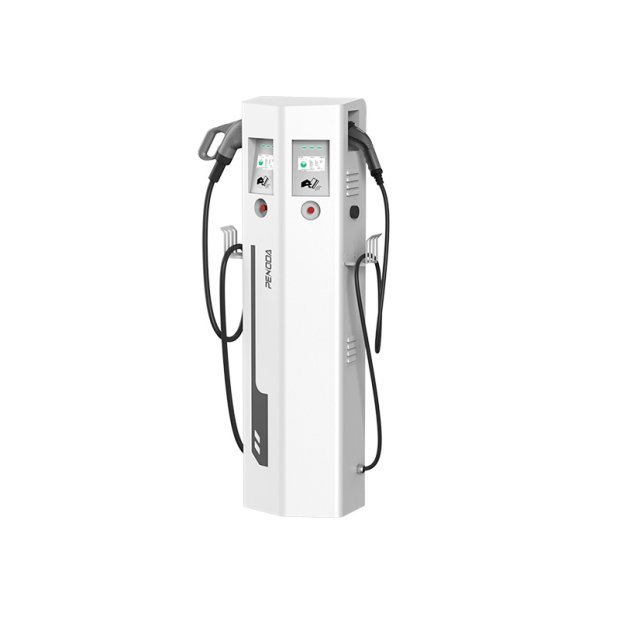

The Ultimate All-in-One Commercial Charging Hub
Maximize your parking infrastructure's ROI with the PENODA 40kW DC + 22kW AC Dual Charging Station. Engineered to eliminate compatibility issues, this hybrid powerhouse delivers ultra-fast DC charging for pure electric vehicles (BEVs) and high-efficiency AC charging for plug-in hybrids (PHEVs)—all from a single, robust footprint.
Manufactured in our TUV and ISO dual-certified factory, it features an intuitive HD interactive touch screen, versatile access via RFID, NFC, APP, and Plug & Charge, and enterprise-grade OCPP 1.6J (TLS 1.2) security. It is the perfect, universally compatible solution for global OEM/ODM partners looking to dominate mixed-use commercial properties.
Electric Vehicle Charger Manufacturers
AC+DC Hybrid
OCPP1.6J+APP
CCS2/CCS1/GBT+Type2/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
Bridging Every Charging Demand in One Powerful Unit
In diverse commercial environments like shopping malls, public transit hubs, and large corporate campuses, driver dwell times and vehicle types vary wildly. The 40kW DC + 22kW AC Combo Station is our proprietary R&D team's answer to this complex challenge. Instead of installing separate AC and DC networks, facility operators can deploy this unified system to serve every driver on the road.
Simultaneous Dual-Charging Architecture
By integrating a heavy-duty 40kW direct current (DC) module for rapid turnaround and a 22kW alternating current (AC) output for longer stays, this station ensures no driver is turned away. Backed by our advanced manufacturing processes—utilizing German Trumpf laser cutters and precision engineering—this unit guarantees unmatched durability and 24/7 reliability in the most demanding high-traffic public locations.
| Parameter | Specification |
| Combined Power Output | 52kW (DC 30kW + AC 22kW) |
| Input Power Supply | 400VAC ±20%, 50/60Hz |
| Grid Compatibility | Supported Earthing: TN / TT / IT |
| Energy Metering | High-precision billing grade (±2% Accuracy) |
| Comprehensive Protection | UVP, OVP, OCP, Relay Stuck Protection, and Over-Temperature Monitoring |
| Parameter | Specification |
| Dimensions (WDH) | 400 x 250 x 1550 mm (Slim Pedestal) |
| Net Weight | 40 kg (Optimized for easy installation) |
| Mounting | Floor-mounted Pedestal |
| Protection Rating | IP55 (Dust/Waterproof) & IK10 (Vandal-proof) |
| Operating Conditions | -30°C to 55°C (Smart derating) | Altitude up to 2500m |
| Parameter | Specification |
| HMI Interface | Branded Logo LED & Multi-color Status LED indicators |
| User Authentication | RFID Card, Mobile App, and Plug & Charge |
| Network Interface | WiFi / 4G / Ethernet |
| Protocol & Maintenance | OCPP 1.6 JSON with OTA (Over-the-Air) upgrade support |
| Maximum Power | DC:60KW AC:22KW/192A 400VAC±15% |
| Connector | CCS1/CCS2/GBT+Type2/GBT |
| Dimension (H*W*D) | 400x250x1550 mm |
| Display | LED 4.3″ *2 |
| Installation | Floor-Standing |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.

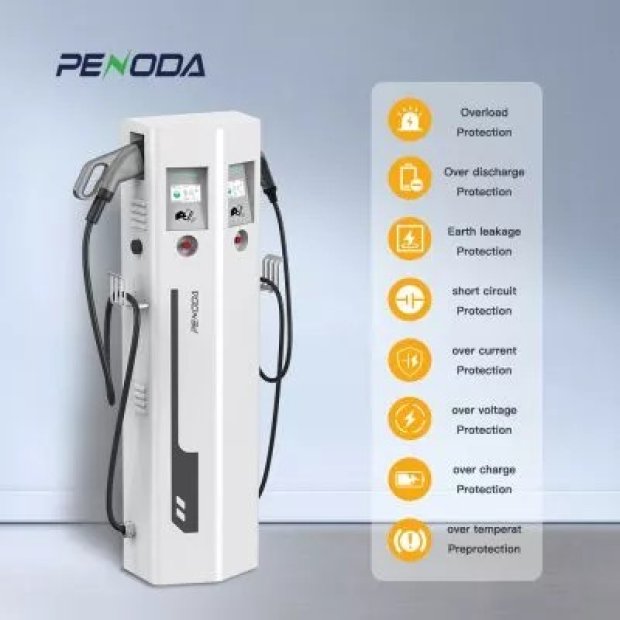

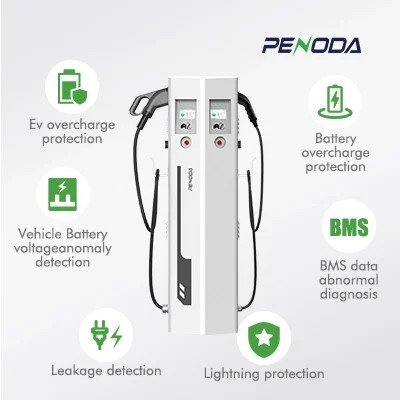

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
1. Dual AC/DC Output: The ultimate space-saver. Combine the blistering speed of a 40kW DC fast charger with the broad compatibility of a 22kW AC Level 2 charger, perfectly servicing both BEVs and PHEVs.
2. 100% In-House R&D & Custom OEM: Built from the ground up in our TUV and ISO certified facility. We offer unrestricted OEM and ODM customization, allowing B2B brands to tailor the enclosure, UI, and software to their exact specifications.
3. Commercial-Grade Durability (IP55/IK10): Engineered for the outdoors. The high-strength metal chassis protects advanced internal electronics against severe weather, extreme temperatures, and physical impact.
4. HD Interactive Display: An ultra-bright, anti-glare touch screen provides drivers with crystal-clear charging metrics and allows operators to display custom branded content seamlessly.

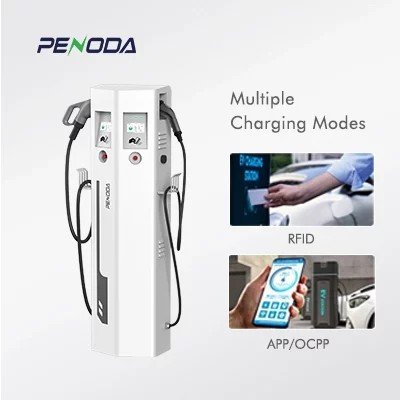

5. Frictionless Payment & Smart Access: Drive revenue effortlessly. The system supports a full matrix of initiation methods including RFID cards, NFC, QR Code scanning, customized APPs, and advanced ISO 15118 Plug & Charge.
6. Bank-Grade Security & OTA Diagnostics: Fully integrated with 4G, Wi-Fi, and LAN. It communicates via the OCPP 1.6J backend protocol with strict TLS 1.2 encryption, allowing facility managers to perform Over-The-Air (OTA) updates and proactive remote diagnostics securely.
Shopping Malls & Retail Centers: Cater to all shoppers. Quick-trip customers can utilize the 40kW DC fast charge, while those watching a movie or dining can plug into the 22kW AC port.
Public Charging Hubs & Highway Rest Stops: Ensure absolute compatibility. Never lose a charging session because a driver arrived in a PHEV that doesn't accept DC fast charging.
Corporate Campuses & Mixed Fleets: The perfect all-in-one station for facility managers dealing with a diverse mix of employee vehicles and company-owned commercial fleets.
Ensure a flat, solid surface for floor-mounted installation.
Operating environment: -30°C to +55°C, suitable for indoor or outdoor use (IP55).
Confirm local power supply capacity meets charger requirements.
Input Power: Single-phase or three-phase AC (according to model).
Rated Voltage: 380VAC ±20% (three-phase).
Dedicated circuit breaker, leakage protection, and reliable grounding are required.
Fix the mounting bracket or base using expansion bolts.
Install the charger vertically and securely.
Ensure sufficient space for ventilation, cable operation, and maintenance.
Connect power cables to terminals L1 / L2 / L3 / N / PE as marked.
Ensure the grounding (PE) connection is secure.
Connect communication cables (Ethernet / 4G / WiFi) if applicable.
Check all wiring before powering on.
Switch on the power supply and confirm system self-check is completed.
Test charging via RFID card, APP, or plug-and-charge.
Verify communication with the OCPP 1.6 backend system if used.
Installation must be performed by qualified electricians.
Do not power on before completing grounding.
Follow local electrical and safety regulations at all times.
Versatility and ROI. While DC fast chargers are excellent for pure EVs (BEVs), many plug-in hybrid electric vehicles (PHEVs) only accept AC power. This dual 40kW DC + 22kW AC station ensures you can monetize every type of EV on the market from a single parking footprint.
Yes. The entire architecture—from the 40kW DC power modules to the 22kW AC components and the unified software management system—is developed by our proprietary R&D team and built in our TUV and ISO certified factory, guaranteeing seamless integration and reliability.
Absolutely. As a true source factory, we provide deep OEM and ODM services. You can customize the heavy-duty enclosure, the software interface on the HD touch screen, and the backend connectivity to match your commercial brand identity perfectly.
The user experience is frictionless. Drivers can select their port (AC or DC) via the interactive screen and initiate charging using RFID, NFC, QR Code scanning, a smart APP, or the cutting-edge ISO 15118 Plug & Charge technology.
Security is our top priority. The dual charger connects via 4G, Wi-Fi, or Ethernet and utilizes the global OCPP 1.6J standard. All commercial data and remote Over-The-Air (OTA) commands are rigorously encrypted with TLS 1.2 to prevent unauthorized access
