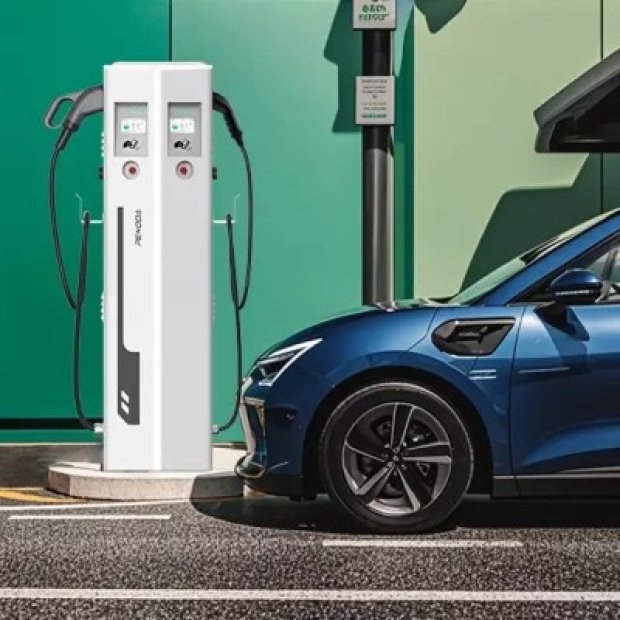

The DC 30+AC 22kW Electric Vehicle Charger is a hybrid charging station engineered for premium commercial environments where space efficiency and charging flexibility are critical. With a lightweight structure of only 40kg and a streamlined footprint of 400 × 250 × 1550 mm, the charger delivers exceptional space utilization while simplifying transportation and installation.
Electric Vehicle Charger Manufacturers
AC+DC Hybrid
OCPP1.6J+APP
CCS2/CCS1/GBT+Type2/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
PADH Series: Compact Hybrid DC 30kW + AC 22kW Charging Solution
The PADH series is a versatile, hybrid charging station engineered to bridge the gap between rapid recovery and destination charging. By delivering 30kW DC power for high-efficiency top-ups and 22kW AC power for versatile compatibility, the PADH series caters to the full spectrum of modern EV needs. Designed for durability and operational intelligence, this dual-mode station integrates seamlessly into diverse environments—from upscale workplaces to public parking hubs. It represents a future-proof investment for businesses looking to support sustainable mobility while offering a premium charging experience to every EV driver.
Compact Excellence, Dual-Mode Versatility
The PADH-30+22 is a revolutionary, space-saving charging solution engineered for premium commercial environments. By integrating a 30kW DC Fast Charger and a 22kW AC Socket into an ultra-slim pedestal, it provides the ultimate flexibility for modern EV owners. Whether it’s a quick top-up for a business meeting or a steady charge for long-term parking, this hybrid station delivers high-performance power without occupying excessive floor space.
Advanced Power Stability: Designed for global grid compatibility (400VAC ±20%) and supporting TN/TT/IT earthing systems, ensuring reliable performance in diverse electrical infrastructures.
Industrial-Grade Safety: Fully integrated with UVP, OVP, OCP, Relay Stuck Protection, and Intelligent Over-Temperature sensors to protect both the vehicle battery and the charger.
Billing-Grade Precision: Built-in energy metering with ±2% accuracy, perfect for commercial billing and energy consumption analysis.
Ruggedized for Any Environment: Rated IP55 for water/dust resistance and IK10 for high-impact protection. It operates flawlessly from -30°C to 55°C (with a smart derating mechanism) and at altitudes up to 2500m.
Seamless Communication: Integrated WiFi, 4G, and Ethernet interfaces ensure the station is always online and ready for remote management.
Flexible Authentication: Supports multiple user-access methods including RFID cards, Mobile App, and "Plug & Charge" for a friction-less user experience.
Future-Proof Smart Protocol: Fully compliant with OCPP 1.6 JSON, supporting OTA (Over-the-Air) firmware updates via the App or OCPP backend to keep your hardware at the cutting edge.
| Maximum Power | DC:60KW AC:22KW/192A 400VAC±15% |
| Connector | CCS1/CCS2/GBT+Type2/GBT |
| Dimension (H*W*D) | 400x250x1550 mm |
| Display | LED 4.3″ *2 |
| Installation | Floor-Standing |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Hybrid Dual-Output Philosophy: Equipped with an IEC 62196 CCS2 connector for 30kW rapid DC charging and a Type 2 interface for 22kW AC charging, allowing two vehicles to charge simultaneously with optimized energy distribution.
Ultra-Lightweight & Slim Design: Weighing only 40kg with a streamlined 400x250x1550mm footprint, the PADH series offers the easiest installation and the highest space efficiency in its class.
Intelligent Power Management: Seamlessly control and balance charging loads via a dedicated App, ensuring your facility’s electrical grid remains stable and efficient.
Branded Interaction: Features a sophisticated HMI with a customizable Logo LED and multi-color Status LEDs, providing clear, real-time feedback and a premium brand presence.
Ensure a flat, solid surface for floor-mounted installation.
Operating environment: -30°C to +55°C, suitable for indoor or outdoor use (IP55).
Confirm local power supply capacity meets charger requirements.
Input Power: Single-phase or three-phase AC (according to model).
Rated Voltage: 380VAC ±20% (three-phase).
Dedicated circuit breaker, leakage protection, and reliable grounding are required.
Fix the mounting bracket or base using expansion bolts.
Install the charger vertically and securely.
Ensure sufficient space for ventilation, cable operation, and maintenance.
Connect power cables to terminals L1 / L2 / L3 / N / PE as marked.
Ensure the grounding (PE) connection is secure.
Connect communication cables (Ethernet / 4G / WiFi) if applicable.
Check all wiring before powering on.
Switch on the power supply and confirm system self-check is completed.
Test charging via RFID card, APP, or plug-and-charge.
Verify communication with the OCPP 1.6 backend system if used.
Installation must be performed by qualified electricians.
Do not power on before completing grounding.
Follow local electrical and safety regulations at all times.
Some of the major companies and organisations building EV charging stations in Canada include: ChargePoint: provides the world’s leading EV charging network. Flo: offers Level 2 and DC fast charging options. Tesla: Has its own Supercharger network that provides fast charging for Tesla owners. Electric Utilities: Many electric utilities in Canada are involved in deploying EV charging infrastructure, sometimes in partnership with other entities.
ABB Siemens Delta Schneider Electric Tritium EVBox Tesla (for their Supercharger network) These companies design and produce EV chargers to support the growing infrastructure needed for electric vehicles worldwide. They are not affiliated with specific car manufacturers but instead provide charging solutions that are compatible with various electric vehicle brands and models.
ChargePoint is one of the companies that manufactures and operates a significant number of electric car charging stations globally. They are a leading provider of EV charging networks and solutions, with a widespread presence in North America, Europe, and other regions. ChargePoint collaborates with various stakeholders to deploy charging infrastructure in residential, commercial, and public settings, aiming to support the growing adoption of electric vehicles. Therefore, ChargePoint is one of the primary companies responsible for manufacturing and operating a large portion of electric car charging stations worldwide.
Determining the “best” electric car charger can depend on several factors including reliability, charging speed, compatibility with different vehicles, user interface, and overall user experience.
The charger adheres to stringent industry standards and certifications, including CE, IEC, and EN certifications such as IEC 61851-1, DIN 70121, ISO 15118, SAE J1772 和IEC 61851-23., ensuring reliable and safe operation.
