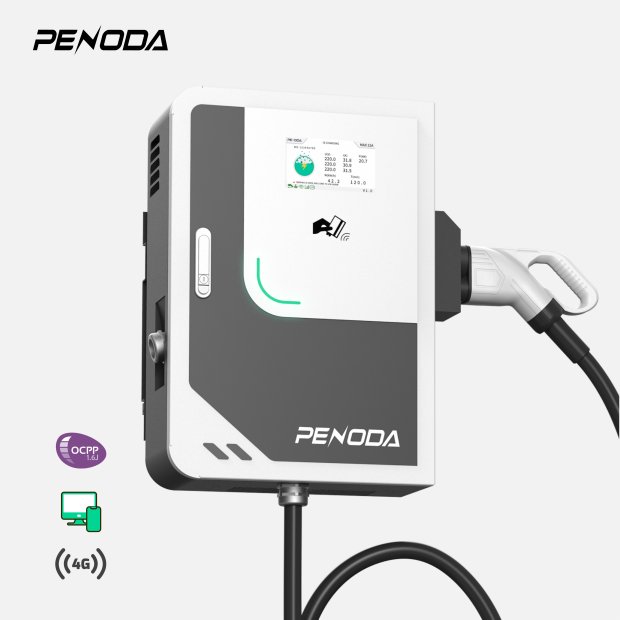

Empower your business with reliable electric vehicle charging. Our Commercial DC EV Charger is available in 20kW, 30kW and 40kW, featuring CCS2 DC charging, OCPP 1.6 communication, and IP55 & IK10 protection for public charging networks.
Manufactured in our ISO/TUV dual-certified factory and carrying full CE, UL, and FCC certifications, this powerhouse integrates an intuitive 7.1-inch touch screen, smart APP control, and advanced remote diagnosis. It is a highly profitable asset for workplaces, retail centers, and hotels, backed by extensive OEM/ODM services, a 2-year warranty, and rapid 7-day ready stock delivery.
Commercial EV Charger
OCPP1.6J+APP+4G+WIFI+LAN Port
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
European Standard (CE)
Top DC AC EV Charger Factory
Scalable & Future-Proof EV Charging Infrastructure
For commercial properties like office buildings, retail parks, and hospitality venues, delivering consistent power is the key to customer satisfaction. The PENODA 20kW, 30kW, and 40kW Commercial DC EV Charging Stations provide the ideal high-speed rapid-charging capabilities tailored for standard commercial dwell times, minimizing energy loss and maximizing conversion rates for cost-effective operation.
Designed for long-term growth, this system supports effortless network expansion, backend integration, and smart charging management. Driven by our proprietary R&D team, this commercial powerhouse bridges the gap between robust physical durability and intelligent energy management. The seamless integration of 24/7 remote monitoring and proactive fault detection ensures that facility managers can effortlessly monetize their spaces with minimal operational overhead (OPEX), accelerating your commercial success in the e-mobility market.
Charging Model: PDA Series Commercial DC Fast Charger
Connector Type: High-quality IEC 62196 CCS2/CCS1/GBT/CHAdeMO charging cable
Power Versatility: Available in 20kW, 30kW, and 40kW to suit different site requirements.

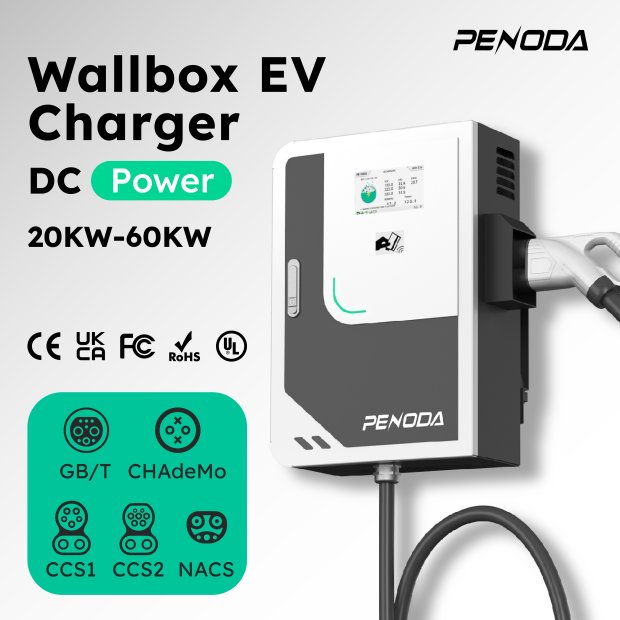

Installation Flexiblity: Supports both Wall-mounted and Pedestal installation.
Smart Interface: Integrated Logo LED and Status LED for intuitive user feedback.

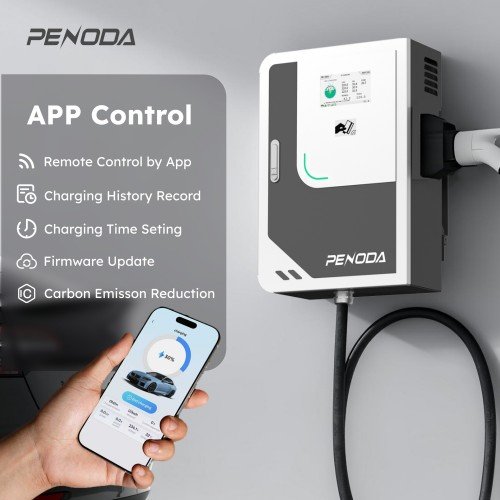

Intelligent Control: Dynamic Load Management accessible via a dedicated App.
Input Power: 230/400VAC ± 20%, 50/60Hz (Compatible with TN/TT/IT grid systems).
Comprehensive Protection: Built-in safeguards including Under Voltage (UVP), Over Voltage (OVP), Over Current (OCP), Relay Stuck detection, and Over Temperature protection.
Precision Metering: High-accuracy energy monitoring with a ±2% tolerance.
Operating Range: Reliable performance from -30°C to 55°C (equipped with an intelligent derating mechanism for extreme heat).
Extreme Conditions: Certified for altitudes up to 2500m.
Rugged Enclosure: IP55 weatherproofing and IK10 impact resistance for indoor and outdoor commercial use.
Physical Profile: Compact footprint at 650 * 450 * 150mm; Weight: 60kg.
Multiple Interfaces: Stay connected via WiFi, 4G, or Ethernet.
Seamless Access: Supports RFID, App-based starting, and Plug & Charge for ultimate user convenience.
Industry Standard: Fully compliant with OCPP 1.6 JSON for backend integration.
Easy Maintenance: Supports OTA (Over-the-Air) updates via App or the OCPP protocol.
| Parameter | Specification |

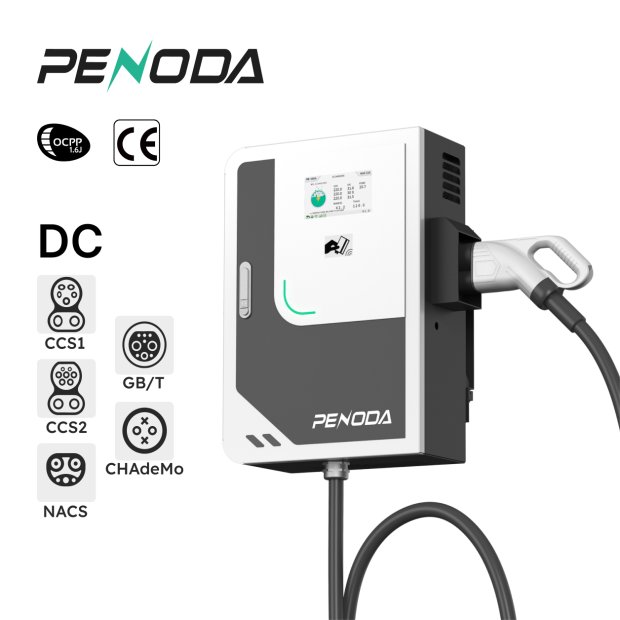

| Charging Interface | Universal Support (Configurable): CCS1 / CCS2 / CHAdeMO / GB/T |
| Human-Machine Interface | 7-inch Sunlight-Readable LCD Touchscreen With tempered glass protection & Multi-color LED Indicators |
| Network Interface | 4G LTE (Global Frequency) / Wi-Fi / Ethernet (RJ45) |
| Charging Protocol | OCPP 1.6J (Cybersecurity Enhanced, TLS 1.2) Fully compatible with OCPP 2.0.1 features |
| Authentication & Payment | RFID (Mifare ISO 14443), Mobile App, QR Code Plug & Charge (ISO 15118) |
| Smart Management | Seamless OTA (Over-the-Air) upgrades Real-time Remote Diagnostics & Load Management |
| Certification | CE, UL, FCC, TÜV Rheinland Certified Compliant with IEC 61851 / IEC 62196 standards |
Our charging station delivers a premium, seamless EV experience, featuring integrated card payments, intuitive App control, and dual 22kW outputs for high-efficiency charging. Fully compliant with OCPP 1.6 and equipped with WiFi, 4G, and Ethernet connectivity, it ensures your business stays connected and future-ready.

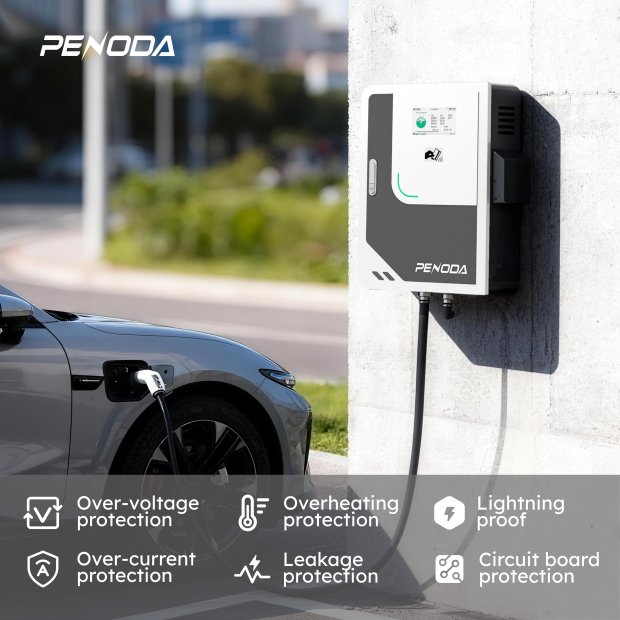

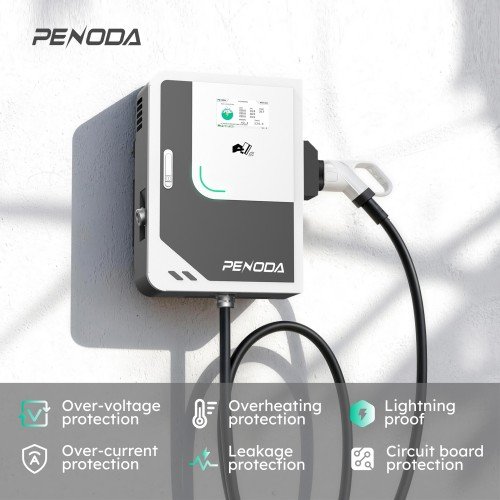

Engineered with a comprehensive safety suite—including leakage, overvoltage, overtemperature, lightning, and IP-rated waterproof protection—our charging stations deliver maximum reliability. Built to withstand the elements, they ensure a secure and worry-free charging experience for every EV driver.
Enterprise-Grade Capabilities & Unmatched Commercial Value
1. Manufacturing Excellence & 7-Day Delivery: Quality guaranteed at the source. Our facility utilizes large-scale automated lines, including German Trumpf fiber laser cutters, welding robots, and HRT hydraulic presses. Coupled with our massive capacity, we offer rapid 7-day delivery for ready stock and a solid 2-year warranty.
2. Ultra-Wide Voltage & 800V Future-Proof Architecture: Stay ahead of the curve. Delivering a highly stable 20kW/30kW/40kW output, the system features an ultra-wide output voltage range (up to 1000V), making it fully compatible with next-generation 800V EV battery architectures for maximum energy conversion and minimal loss.
3. Flexible Installation & Modular Design: Adaptable to any commercial space. Designed with a highly efficient modular internal architecture, our chargers support both space-saving wall-mounted configurations and standalone pedestal installations. This modularity also ensures rapid component replacement, keeping maintenance costs remarkably low.

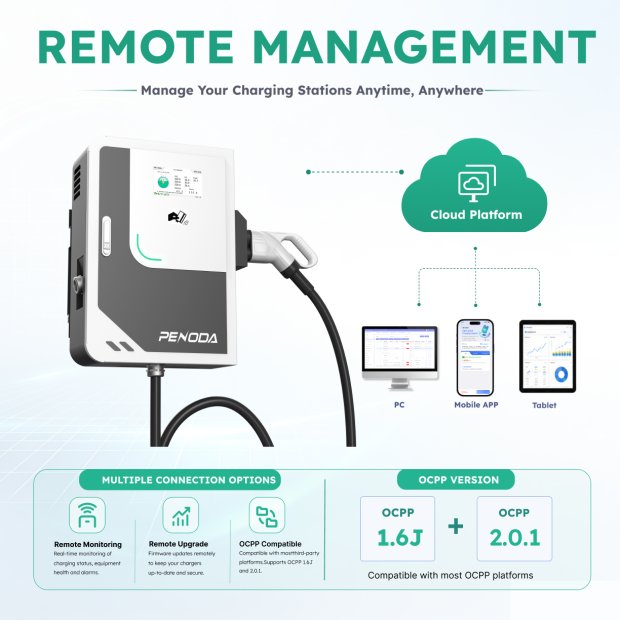

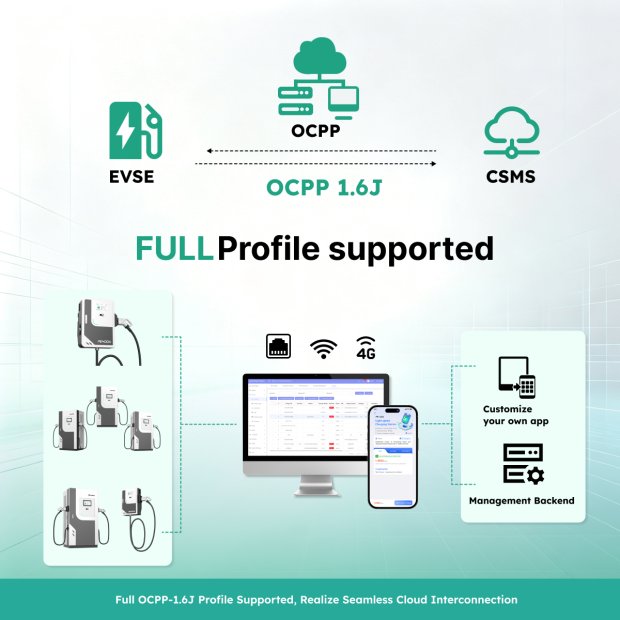

4. Smart Connected Ecosystem & 7" UX: Engage users and streamline operations. The brilliant 7-inch HD touch screen provides an intuitive user experience. Operators can leverage the platform (via 4G/WiFi/OCPP 1.6) for remote diagnosis and seamless OTA (Over-The-Air) firmware updates, eliminating costly on-site technician visits.
5. Universal Payment & AFIR Ready: Maximize your revenue streams. Alongside the smart APP and included five RFID activation cards, this station can be customized to support POS credit card terminals. This ensures frictionless payment for all drivers and full compliance with European AFIR regulations.
6. Whisper-Quiet Operation & Solar-Ready Sustainability: Perfect for hospitality and corporate environments. Engineered with advanced thermal management, it operates with ultra-low noise levels, ensuring no disruption to your hotel guests or office workers. Furthermore, it is compatible with Solar PV, creating a truly green transit infrastructure.
7. Multi-Layer Safety Architecture: Safety without compromise. The system integrates advanced protection against overvoltage, overcurrent, leakage, short-circuits, surges, and extreme temperatures. A high-visibility Emergency Stop (E-stop) button is equipped as standard for immediate power cut-off.

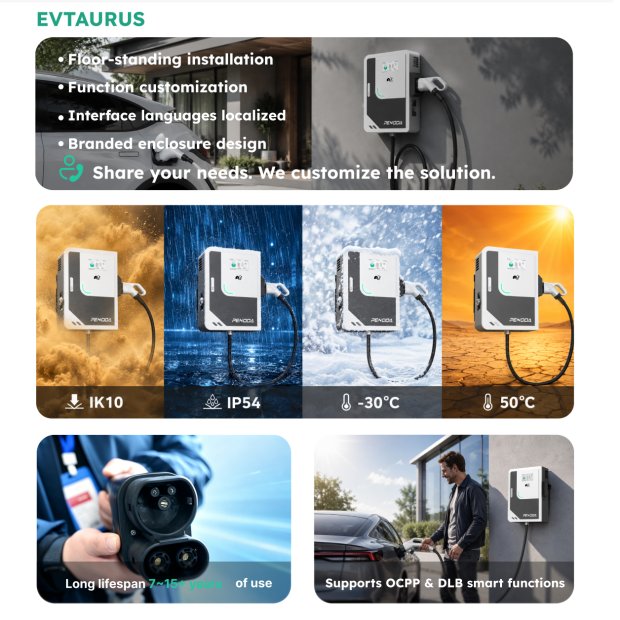

8. 24/7 Durability & High-Strength Enclosure: Built to survive harsh outdoor environments. Featuring a heavy-duty metal chassis with IK10 impact resistance and IP55 dust and water protection, the internal electronics remain perfectly intact whether exposed to blistering heat or freezing rain. We also offer deep OEM/ODM customization to match your brand's aesthetics.
Perfectly Suited for Commercial & Retail Properties
Workplaces & Corporate Campuses: Provide a highly valued employee amenity. The 20kW and 30kW models offer the perfect high-efficiency charging speed for half-day parking, integrating seamlessly with your building's grid and potential solar PV setups.
Retail Parks & Shopping Malls: A 40kW commercial DC charger delivers rapid power, significantly reducing charging times compared to AC units. Manage access effortlessly with the included RFID cards or your custom smart APP, turning parking into a revenue generator.
Auto Dealerships & Commercial Fleets: Essential commercial infrastructure. Quickly charge demo vehicles or light-duty fleet cars using our highly reliable, multi-layer safety protected hardware.
Hotels & Luxury Resorts: Offer VIP guests a premium fast-charging experience. Our deep OEM/ODM manufacturing capabilities allow you to fully customize the heavy-duty metal enclosure and the 7-inch HD interface to match your hotel’s brand identity perfectly.
DC EV Charger (20kW / 30kW / 40kW)
Preparation & Current Capacity:
Verify the power supply supports 380VAC ± 15% (50/60Hz). Ensure the electrical infrastructure meets the following rated input current requirements:
20kW Model: Minimum 37A
30kW Model: Minimum 60A
40kW Model: Minimum 80A
Mounting:
Secure the charger to a load-bearing wall using the provided backplate or install it on a dedicated floor-mount pedestal.
Electrical Wiring:
With the main power OFF, connect the input cables (L1/L2/L3/N/PE). Ensure all terminals are tightened securely and the PE (Earth) wire is solidly grounded.
Network Configuration:
Connect the unit via WiFi, 4G, or Ethernet to enable OCPP 1.6J backend management and APP control features.
Commissioning:
Ensure the Emergency Stop button is released. Switch on the circuit breaker. Once the LED status indicates "Ready," initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified electrician in accordance with local electrical codes and safety regulations.
We invest heavily in industry-leading technology. Our charging stations are manufactured in an ISO/TUV dual-certified factory using German Trumpf laser cutters, automated welding robots, and HRT hydraulic presses. This precision engineering guarantees that every PENODA charger meets the highest standards of durability and performance.
Absolutely. We provide comprehensive OEM and ODM services. You can customize the exterior casing, the software interface on the 7-inch touch screen, and the technical specifications to align perfectly with your commercial brand identity.
The station features a multi-layer safety architecture that complies with international EV standards. It includes protection against overvoltage, overcurrent, leakage, and surges. It also features a high-strength IK10/IP55 metal enclosure, an Emergency Stop button, and includes five RFID cards for secure access control.
Absolutely. Because we own the manufacturing and R&D process, we provide highly flexible OEM and ODM services, a comprehensive 2-year warranty, and rapid 7-day ready stock delivery to get your commercial network operational immediately.
Utilizing the smart connected ecosystem via OCPP 1.6 communication, facility operators can instantly access the system remotely to diagnose issues, push OTA firmware updates, or reboot the station. This proactive fault detection eliminates the vast majority of expensive physical technician call-outs.
