PENODA commercial chargers support a wide range of DC fast charging power outputs (e.g., 120kW, 150kW, 180kW, 240kW) built to reduce charging time and increase station throughput. Equipped with OCPP 1.6J, these stations integrate seamlessly with backend management systems for monitoring, billing, and remote diagnostics.
Commercial Electric Vehicle Charging Stations
OCPP1.6J+APP
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
Credit Card Payment
Fast Charge
IP55 IK10
E-stop Button

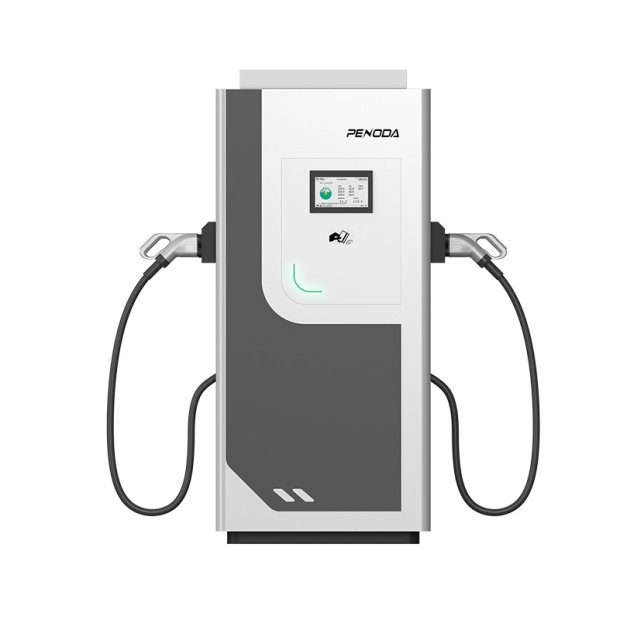

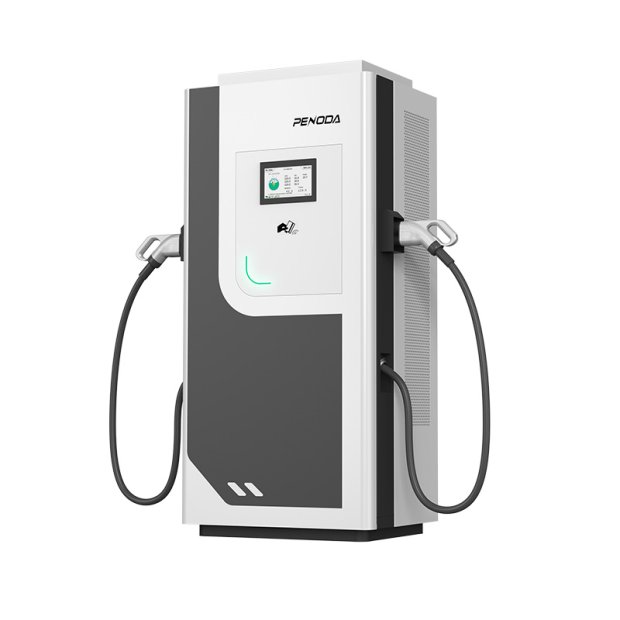

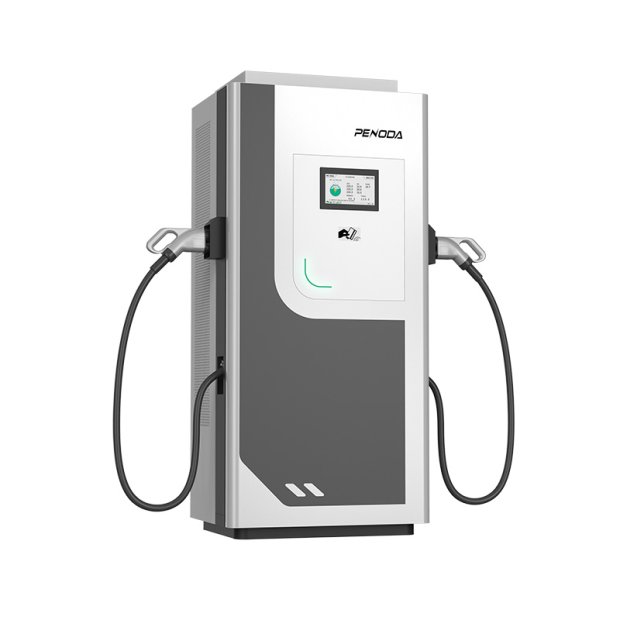

Experience the next generation of DC charging with the PDJ 120/150/180/240kW series.
Ultimate Performance: Ultra-fast charging speeds tailored for high-demand environments.
Versatile Application: Ideal for commercial resellers and private enterprise fleets.
Built to Last: Industrial-grade durability with advanced tech integration.
Eco-Conscious Excellence: High energy efficiency designed for a sustainable future.
Upgrade your charging infrastructure with our 60kW Wall-Mounted Station. As a Level 3 DC fast charger, it offers the perfect balance of space-saving design and high-speed performance. It’s the ultimate choice for those who need rapid charging at home or within commercial parking spaces without the footprint of a full-size cabinet.
Input Voltage: 400VAC ±20% wide voltage range for superior grid stability (50/60Hz).
Grid Compatibility:Versatile configuration supporting TN, TT, and IT earthing systems.
Comprehensive Protection:Advanced safety suite including Under-Voltage (UVP), Over-Voltage (OVP), Over-Current (OCP), Relay Stuck monitoring, and Over-Temperature shutdown.
Metering Precision: Integrated energy measurement with a certified ±2% accuracy for reliable billing and monitoring.
Resilient Operation: Stable performance from -30°C to 55°C; features a smart derating mechanism for thermal protection.
High-Altitude Readiness: Optimized for deployment at altitudes up to 2,500 meters.
Robust Protection: Dual-rated IP55 and IK10, providing superior protection against dust, water, and mechanical impacts.
Versatile Installation: Designed for both indoor and outdoor settings.
Physical Footprint: Compact yet heavy-duty design (700 x 550 x 1,500 mm) with a total weight of 230 kg.
Smart Connectivity: Supports WiFi, 4G, and Ethernet (RJ45) for reliable, redundant communication with management platforms.

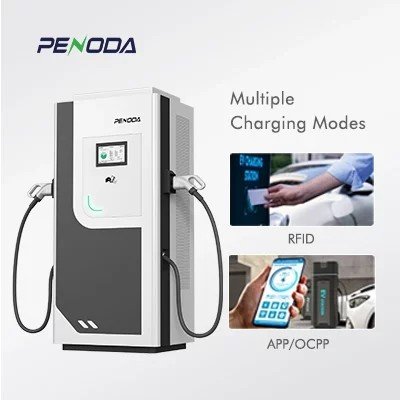

Flexible Access Control: Offers multiple secure authentication methods: RFID, App-based activation, and seamless Plug & Charge (ISO 15118 ready).
Industry Standard Protocol: Fully integrated with OCPP 1.6 JSON, ensuring seamless compatibility with global charging networks.
Remote Maintenance: Supports intelligent OTA (Over-the-Air) firmware updates, allowing for remote feature enhancements and system maintenance via App or backend.
| Maximum Power | 240kw/480A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 700*550*1500 mm |
| Display | LED 10.1″ touch |
| Installation | Floor-Standing |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Designed for ultimate convenience, our charging station integrates seamless card payments, intuitive App control, and universal OCPP 1.6 compatibility. With robust WiFi, 4G, and Ethernet connectivity and powerful dual 22kW outputs, it delivers an efficient, high-speed charging experience tailored for modern electric mobility.

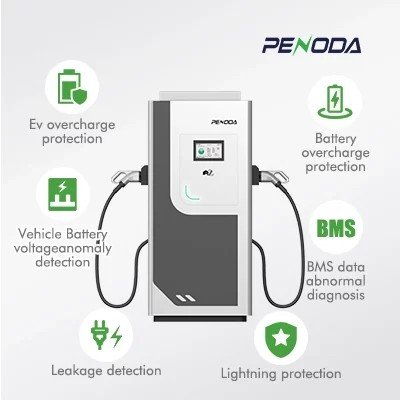

Engineered with a comprehensive safety suite—including leakage, overvoltage, over-temperature, lightning, and IP-rated waterproof protection—our stations guarantee a secure and reliable charging environment. Experience total peace of mind with infrastructure built to the highest safety standards.
Model: PDJ Smart DC Charger
Standardized Connectivity: Equipped with a high-durability IEC 62196 CCS2 cable.
Optimized Power: Delivering 21kW of DC fast charging—perfect for premium residential and destination charging.
Flexible Installation: Designed for versatility with Wall-mount or Pedestal configurations to fit any space.
Intuitive Feedback: Features a branded Logo LED and Status LEDs for clear, at-a-glance charging updates.
Intelligent Energy Control: Dynamic Load Management fully accessible and adjustable via a dedicated App.
Profitability can range from modest margins to potentially more lucrative returns, especially in areas with high demand and favorable operational conditions. As the EV market continues to grow and infrastructure expands, the profitability of charging stations is expected to evolve as well, influenced by technological advancements, regulatory changes, and consumer behavior.
Both Level 2 AC chargers and DC Fast Chargers play important roles in building out the electric vehicle charging infrastructure. The choice between them often depends on factors such as charging speed requirements, site location, and expected usage patterns. As electric vehicle adoption continues to grow, these types of chargers will likely remain integral to expanding the accessibility and convenience of EV charging networks.
The power requirements for a commercial EV charger range widely depending on the charger type and its intended application. Level 2 chargers are common in many commercial settings, while DC fast chargers are critical for high-demand locations and long-distance travel routes.
A commercial charging station, also known as an electric vehicle (EV) charging station or EVSE (Electric Vehicle Supply Equipment), is a facility specifically designed to charge electric vehicles. These stations are typically located in public places or commercial settings and provide EV owners with access to electricity for recharging their vehicles’ batteries.
