Premium Power for Global Enterprises & Automotive Hubs

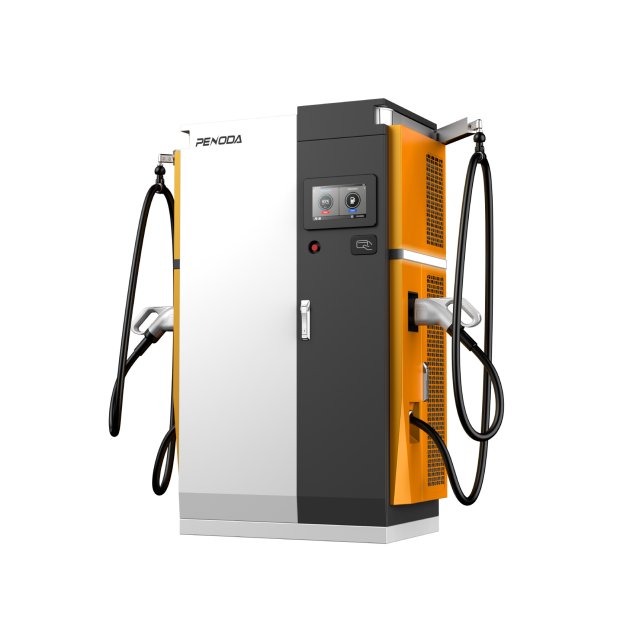

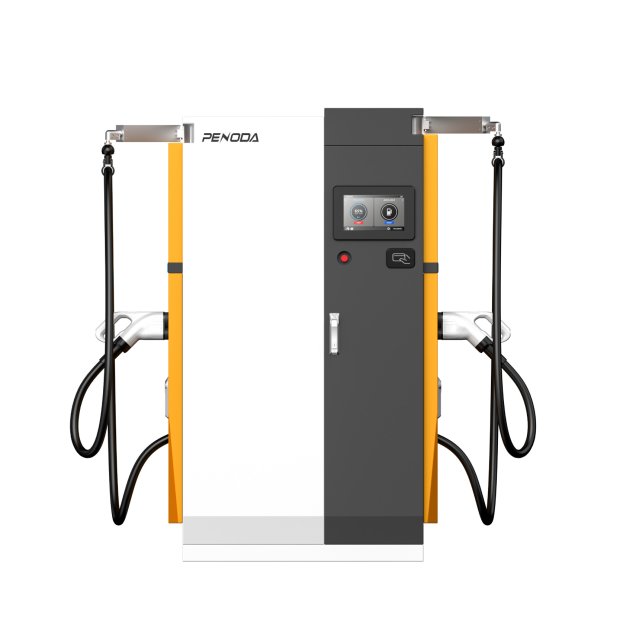

Elevate your corporate infrastructure with the Flagship 60kW-160kW Enterprise DC Fast Charger. Engineered specifically for automotive dealerships, service centers, and large-scale global enterprise campuses, this state-of-the-art Level 3 charging station provides the ultimate blend of ultra-fast charging speeds and unyielding commercial reliability.
Manufactured to the highest global standards in our TUV and ISO certified facility, it boasts a future-proof modular power architecture. Fully certified by CE, UL, and FCC, it is housed in a rugged IP55/IK10 metal enclosure. Featuring a vivid 7-inch interactive screen, frictionless smart access, and enterprise-grade OCPP 1.6J (TLS 1.2) security, it is the premier choice for global OEM/ODM partnerships.
EV Charging Station Business
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
Credit Card Payment
Fast Charge
IP55 IK10
E-stop Button
For automotive dealerships preparing new EV inventory for delivery, or Fortune 500 companies transitioning their corporate fleets to electric, downtime is not an option. The Flagship 60-160kW DC Series is our proprietary R&D team's answer to the most demanding commercial requirements. By delivering pure direct current rapidly to the vehicle's battery, it ensures your executive fleets and customer vehicles are fully charged and ready to deploy in a fraction of the time.
Modular Architecture: Scalable Corporate InvestmentEnterprise energy needs evolve. Our advanced modular internal architecture protects your initial capital expenditure (CAPEX). Facilities managers can deploy this flagship station at a highly efficient 60kW or 80kW configuration today. As your corporate EV fleet expands or battery capacities increase, the system can be effortlessly upgraded to 120kW or 160kW by simply adding modular power blocks, eliminating the need for full-system replacements.
Charging mode:PDY
Charging connector:CCS2/CCS1/GBT
DC power output:Three phase up to 80kW with downgrade compatibility
Mounting options:Floor mounted
HMI:Logo LED, Status LED
Load management:Via App
Maximum Power:
60kw/120A 400VAC±15%；80kW/160A 400VAC±15%
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：700*425*1500 mm
Weight:120 kg
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON Software upgrade:OTA via App, OCPP
| Maximum Power | 60kw/120A 400VAC±15%；80kW/160A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 700*425*1500 mm |
| Display | LED Touch 10.1″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
| Our Services | 1.OEM/ODM Support |
| 2.2-Year Warranty | |
| 3.10-15 days lead time | |
| 4.Rigorous Quality Control | |
| 5.Industry-Leading Manufacturer |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 60/80 kw outputs, our charging station offers a seamless EV charging experience.
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Product Description：
In the ever-expanding world of electric vehicles (EVs), charging technology is a pivotal aspect of ensuring a seamless and efficient driving experience. PENODA, a renowned name in the field of advanced charging solutions, proudly presents the PENODA 60/80kW DC EV Charger. This cutting-edge charger is designed to meet the demands of the modern EV landscape, offering speed, efficiency, and versatility like never before.
The 60/80kW DC EV Charger is a high-power charging solution designed for electric vehicles. This charger, known for its impressive 60-80 kilowatt output, offers a range of features that make it a top choice for EV owners. Smart charging protection system, automatic detection of abnormal states, intelligent control current.
High Power Output: With a substantial 60-80 kilowatt output, this charger is significantly faster than standard home chargers.
Compatibility: It’s compatible with a wide range of EVs, making it a versatile choice.
Fast Charging: Thanks to its high power, it can deliver a substantial charge in a relatively short time.
Safety: The 60/80kW DC EV Charger comes equipped with safety features like overvoltage protection and short-circuit prevention.
The 60/80kW DC EV Charger is a game-changer in the world of electric vehicle charging. Its high power output, compatibility, and safety features make it a top choice for EV owners looking for fast and efficient charging solutions. As EV adoption continues to grow, expect to see more of these chargers in public charging stations, making longer journeys more accessible for all EV enthusiasts. Make the switch to a 60/80kW DC EV Charger today and enjoy quicker, more efficient charging for your electric vehicle. Place your order now.
1. Scalable Enterprise Power (60kW up to 160kW): Start smart and grow fast. Upgrade your station's output seamlessly from 60kW to a massive 160kW using our proprietary modular power blocks as your corporate charging demands increase.
2. Global Certification & 100% In-House R&D: Produced entirely in our TUV/ISO dual-certified factory, this unit meets strict CE, UL, and FCC standards, ensuring flawless compliance for multinational corporate deployments.
3. Unrestricted OEM/ODM Customization: We empower global B2B brands. Customize the heavy-duty IP55/IK10 metal enclosure's color, branding, and UI software to perfectly match your corporate or dealership identity.
4. 7-Inch HD Interactive Hub: A premium 7-inch anti-glare touch screen provides crystal-clear charging metrics and allows corporate administrators to display custom branded content flawlessly.
5. Frictionless Executive Access: Streamline the charging experience. Users can initiate ultra-fast sessions using RFID employee cards, NFC, secure smart APPs, or futuristic ISO 15118 Plug & Charge technology.
6. Bank-Grade Security & OTA Diagnostics: Operate your network with total peace of mind. Connected via 4G, Wi-Fi, or LAN, the system utilizes the global OCPP 1.6J backend protocol with strict TLS 1.2 encryption for secure remote diagnosis and Over-The-Air (OTA) updates.
Automotive Dealerships & Service Centers: The ultimate tool for rapid vehicle turnaround. Quickly charge incoming service vehicles or ensure new EV deliveries are handed over with a 100% full battery.
Global Corporate Headquarters: Provide a premium, high-speed charging amenity for busy executives, employees, and VIP corporate guests without keeping them waiting.
Enterprise Logistics & Delivery Hubs: Ensure your company's electric delivery vans and logistics vehicles receive ultra-fast top-ups during shift changes, maximizing operational uptime.
Models: 60kW / 80kW / 120kW / 160kW
1. Preparation & Electrical CapacityBefore installation, verify that the site’s power supply supports 380VAC ± 15% (3-Phase, 5-Wire). Ensure the electrical infrastructure meets the following minimum rated input current requirements:
60kW Model: Minimum 120A
80kW Model: Minimum 160A
120kW Model: Minimum 240A
160kW Model: Minimum 320A
2. Floor-mount InstallationThis equipment is designed for floor-mount installation. A level and stable concrete foundation must be prepared in advance. Complimentary specialized expansion bolts are included with the unit to securely anchor the station to the ground.
3. Electrical WiringWith the main power supply switched OFF, connect the input cables (L1, L2, L3, N, and PE). All terminal screws must be tightened to the specified torque. Ensure the PE (Earth) wire is solidly grounded to guarantee operational safety.
4. Network & Smart ConfigurationEstablish a network connection via WiFi, 4G, or Ethernet to activate the OCPP 1.6J intelligent management system. This enables remote monitoring, data management, and APP-based control.
5. Commissioning & OperationConfirm that the Emergency Stop button is released. Switch on the circuit breaker. Once the 10.1-inch touch screen displays the "Ready" status, initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified professional electrician in accordance with local electrical codes and safety regulations.
Dealerships require rapid turnaround times for both service bays and new car deliveries. This station's massive 60kW to 160kW output ensures vehicles are charged incredibly fast, while its global certifications (CE/UL) guarantee compatibility with all major EV brands on the market.
It future-proofs your infrastructure. You can install the charger at 60kW to meet current employee or fleet needs. When you upgrade to larger commercial EVs or require faster charging, you simply add internal power modules to reach 160kW, saving the cost of purchasing a brand-new station.
Absolutely. As a direct source manufacturer with a TUV and ISO certified factory, we specialize in deep OEM and ODM services. You can fully customize the rugged IP55 metal enclosure's color and the 7-inch digital display to reflect your brand identity.
We deploy bank-grade security. The station connects via 4G, Wi-Fi, or Ethernet and operates on the global OCPP 1.6J standard. All commercial data, employee RFID interactions, and Over-The-Air (OTA) commands are rigorously protected by TLS 1.2 encryption.
Yes. Despite delivering up to 160kW of extreme power, we utilize highly engineered, ergonomic charging cables. They are designed to be flexible and user-friendly, ensuring effortless operation for all dealership staff and corporate employees.
