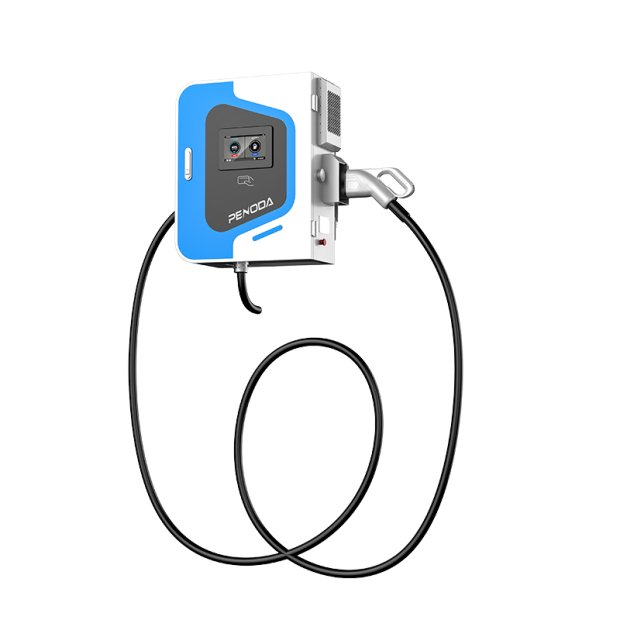

Redefine your parking infrastructure with the Signature Blue 21kW DC Level 2 Fast Charger. Designed for high-end corporate campuses, luxury retail, and boutique hotels, this visually stunning station proves that industrial power can be elegantly packaged.
Beyond its striking exterior, it is a formidable single-phase powerhouse built in our TUV and ISO certified facility. It features a vibrant 7-inch anti-glare touch screen and top-tier connectivity—including NFC, RFID, APP control, and ISO 15118 Plug & Charge—delivering a seamless, premium charging experience secured by OCPP 1.6J (TLS 1.2).
level 2 ev charging station
21kW Single Phase DC EV Charger
Home Charging in the North American Market
OCPP1.6J+APP+DLB
CCS1/CCS2/GBT
4G/WIFI/RFID
Home use or business ev charger
Fast Charge
IP55 IK10
E-stop Button
The Perfect Blend of Architectural Aesthetics and DC Power
In the modern commercial landscape, EV charging stations are more than just utilities; they are visible extensions of your corporate identity. The Premium Blue 21kW DC Charger was engineered by our proprietary R&D team for businesses that refuse to compromise on aesthetics or performance. This specific edition showcases our elite OEM/ODM custom coloring capabilities, providing a vibrant alternative to the standard industrial grey.
While the exterior captures attention, the internal architecture delivers relentless B2B performance. By converting single-phase power directly into 21kW of DC output, it bypasses the EV’s onboard charger for rapid energy delivery. It is the ultimate statement piece for property managers who want to attract eco-conscious drivers while maintaining an upscale, technologically advanced environment.
Charging Model: PDA-21kW
Charging Connector: IEC 62196 CCS Type 2 (Tethered 5m cable)
DC Power Output: 21kW (High-efficiency constant output)
Mounting Options: Versatile wall-mount or ergonomic pedestal installation
User Interface (HMI): Dynamic Branding Logo LED & Multi-color Status Indicator

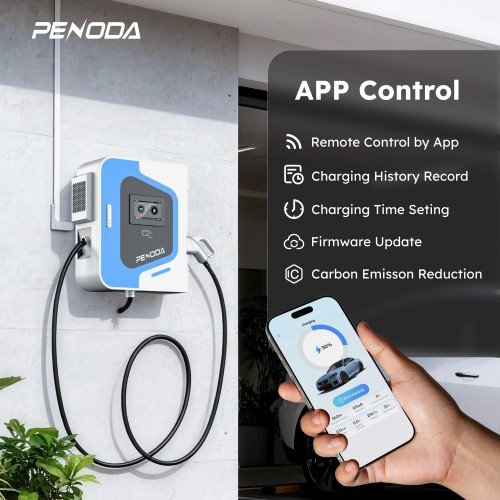

Load Management: Intelligent energy distribution via dedicated Mobile App
Power Supply: 230/400VAC ± 20% | 50/60Hz
Grid Compatibility: Supported systems: TN-S / TN-C-S / TT / IT
Comprehensive Protection: * Under Voltage (UVP) & Over Voltage (OVP)
Over Current (OCP) & Short Circuit Protection
Relay Stuck Detection
Advanced Over-Temperature Protection
Energy Metering: High-precision metering with ±2% Accuracy
Operating Temperature: -30°C to 55°C (Equipped with intelligent thermal derating mechanism)
Operating Altitude: Up to 2500m
Environmental Rating: IP55 (Weatherproof) & IK10 (High-Impact Resistance)
Application: Certified for both Indoor and Outdoor all-weather operation
Dimensions: 450 x 150 x 650 mm (Compact slim-line design)
Net Weight: 62kg (Industrial-grade robust housing)
Network Interface: WiFi / 4G (Cellular) / Ethernet
User Authentication: RFID Card, Mobile App, and Plug & Charge (ISO 15118 ready)
Backend Protocol: OCPP 1.6 JSON (Fully compatible with global CSMS platforms)
System Maintenance: OTA (Over-the-Air) firmware updates via App or OCPP backend
| Application | Public/Commercial Parking |
| Apartment, Hotel, and Workplace | |
| Heavy-duty Truck and Bus Charging | |
| Fast Charging Stations near highways | |
| Maximum Power | 21kw/42A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 450*150*650 mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Blancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and 21kw outputs, our charging station offers a seamless EV charging experience.

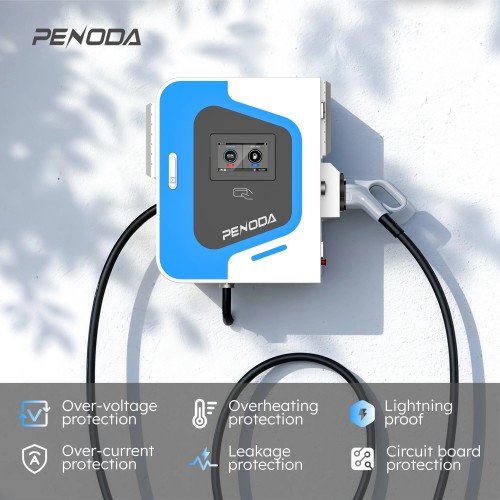

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
As the global demand for rapid electrification intensifies, the reliability of the charging infrastructure has become the ultimate differentiator. PENODA stands as a premier manufacturer and strategic supplier of high-speed DC charging systems, headquartered in the heart of China’s EV technology corridor.
By integrating world-class engineering with a globally accredited supply chain, we deliver standardized charging solutions that empower operators, fleet managers, and distributors. Our commitment to cost-efficiency, combined with an unyielding focus on customer success, ensures that your infrastructure is deployed on schedule—no matter where you are in the world. Partner with PENODA to secure the hardware that drives the future.
Choosing a DC charger is an investment in longevity. Here is how PENODA redefines the manufacturer-client relationship:
PENODA is synonymous with excellence. Our reputation is built on a foundation of high-performance engineering and industrial-grade durability. We don't just assemble components; we craft integrated energy solutions that prioritize systemic efficiency, ensuring that every kilowatt delivered is optimized for the vehicle’s battery health.
As a specialized DC EV Charger exporter, we bridge the gap between advanced manufacturing and global accessibility. Our logistics framework is designed to navigate international regulatory landscapes, ensuring that our top-tier technology reaches EV owners from Europe to North America with absolute compliance and minimal lead times.
Positioned at the forefront of China’s green energy revolution, PENODA is a catalyst for sustainable change. We leverage our domestic innovation hub to bring the latest in fast-charging breakthroughs to the global stage. When you choose PENODA, you aren't just buying a charger; you are aligning with a partner dedicated to enhancing the global electric mobility journey through innovation, precision, and customer-centric design.
Distinctive Enclosure & Bespoke OEM: Stand out effortlessly. The signature blue housing exemplifies our deep OEM/ODM customization capabilities. Manufactured in our TUV/ISO certified factory, the weather-resistant (IP55/IK10) shell can be fully tailored to match your specific brand guidelines.
Streamlined 21kW Power Delivery: Maximize charging turnover without heavy grid upgrades. This station provides rapid, stable Level 2 DC charging optimized for standard single-phase electrical systems, perfect for 1-to-3-hour commercial dwell times.
7-Inch HD Interactive Hub: A focal point for user engagement. The premium 7-inch anti-glare touch screen offers crystal-clear charging metrics and customizable UI options, ensuring perfect visibility from bright daylight to late night.

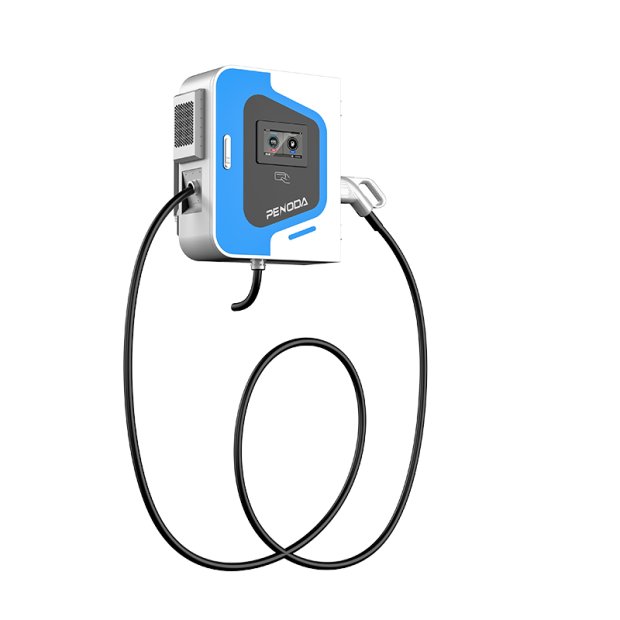

Comprehensive Smart Access: We’ve eliminated charging friction. Drivers can initiate sessions instantly utilizing RFID cards, NFC, QR code scanning, a dedicated smart APP, or the next-generation ISO 15118 Plug & Charge protocol.
Encrypted Network & Remote Management: Ultimate control for facility operators. Connected via 4G, Wi-Fi, or LAN, the charger communicates using the OCPP 1.6J standard with rigorous TLS 1.2 encryption. This enables secure remote diagnosis, real-time monitoring, and frictionless OTA firmware updates.
User-Centric Handling: Featuring an ergonomic, highly flexible 60A-rated cable, this station ensures that delivering high-power DC energy remains lightweight and manageable for every user.
Ideal Deployments for the Signature Blue Edition
Luxury Hotels & Premium Retail: Enhance the VIP guest experience. The striking blue aesthetic and vibrant 7-inch screen seamlessly blend into high-end architectural environments.
Corporate Headquarters: Showcase your commitment to innovation and sustainability with a visually appealing, high-tech charging network for executives and employees.
Custom Branding Projects: Use this Blue edition as the baseline for your own OEM/ODM vision. Our source-factory capabilities allow you to create a proprietary fleet of chargers that visually dominate your local market.
1. Site Preparation & Grid Verification: > Before deployment, verify that the commercial facility's power supply supports 230V/400VAC ± 20%. Ensure the electrical panel has adequate capacity to handle the continuous 21kW or 28kW high-efficiency DC load without requiring massive grid overhauls.
2. Flexible Commercial Mounting: > The patented hardware supports both space-saving wall-mounted configurations and standalone floor pedestals. Secure the heavy-duty backplate and lock the IP55/IK10-rated unit firmly in place using the provided industrial safety screws.
3. Secure Wiring & Grounding: > With the main power strictly OFF, connect the input cables (Single-Phase L/N/PE or Three-Phase L1/L2/L3/N/PE) according to regional grid standards. Ensure the Protective Earth (PE) wire is solidly grounded to maintain our multi-layer electrical safety protocols.
4. Network & Backend Connectivity: > Establish secure commercial communication by configuring the integrated 4G, Wi-Fi, or Ethernet (LAN). This activates the highly secure OCPP 1.6J protocol encrypted with TLS 1.2, enabling seamless remote diagnosis and smart APP management.
5. Commissioning & Smart Access: > Verify the high-visibility Emergency Stop (E-stop) button is released, then power on the breaker. Once the 7-inch anti-glare touch screen boots up, initiate a test charging session utilizing your preferred frictionless method: RFID card, NFC, smart APP, or ISO 15118 Plug & Charge.
⚠️ Professional Note: To guarantee absolute electrical safety and validate the factory warranty, installation must be performed by a certified and licensed commercial electrician.
It masterfully combines architectural aesthetics with industrial-grade power. While standard chargers are purely functional, this premium 21kW/28kW model acts as a striking visual asset for luxury hotels and corporate headquarters, delivering rapid DC power directly to the battery while elevating your property's image.
Absolutely. The Signature Blue edition showcases our elite OEM/ODM manufacturing capabilities. Produced in our TUV and ISO dual-certified factory, we can fully tailor both the rugged IP55/IK10 enclosure and the digital UI on the 7-inch touch screen to perfectly reflect your corporate identity.
We designed it for ultimate convenience. The vivid 7-inch anti-glare touch screen ensures perfect outdoor visibility. Users can initiate charging effortlessly via multiple frictionless methods: RFID cards, NFC, smart APP control, QR Code scanning, or the futuristic ISO 15118 Plug & Charge.
Not at all. To match the premium exterior, we prioritize ergonomic handling. Instead of bulky industrial cords, our 21kW unit features a highly flexible 60A-rated cable (and an 80A-rated cable for the 28kW). This lightweight design ensures effortless maneuverability for all drivers.
We deploy enterprise-grade data protection. The station connects seamlessly via 4G, Wi-Fi, or Ethernet (LAN) and communicates using the advanced OCPP 1.6J protocol. Protected by rigorous TLS 1.2 encryption, it guarantees that all your commercial data, remote diagnostics, and OTA updates remain absolutely secure against cyber threats.
