The 20/30/40kW Commercial EV Charger-Blue is designed for retail, fleet, and urban charging applications. Featuring high-precision energy metering, dynamic load balancing, and solar charging capabilities, it ensures efficient, reliable, and sustainable charging performance.
Commercial EV Charger
OCPP1.6J+APP+4G+WIFI+LAN Port
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
European Standard (CE)
Top DC AC EV Charger Factory
Our PDA series is designed specifically for high-traffic commercial environments where turnover speed and uptime are the keys to profitability.
Strategic Deployment: Ideal for retail complexes, highway service hubs, corporate fleets, and urban "destination" charging.
Rapid ROI: By delivering DC power (Level 3 speeds) in a compact footprint, you can attract premium EV drivers and generate higher revenue per charging session compared to standard AC stations.
Customer Loyalty: Increase "dwell time" at your business location while providing a high-value service that keeps customers coming back.
Choose the power level that fits your site’s electrical capacity and your customers' needs. Whether it's a quick 30-minute "top-up" for shoppers or rapid turnaround for delivery fleets, the PDA series has the right configuration for you.
Commercial environments demand hardware that can take a beating.
Weatherproof & Impact Resistant: Rated IP55 and IK10, our chargers are built to withstand rain, snow, and physical wear.
Comprehensive Protection: Every unit features integrated leakage, overvoltage, overtemperature, and lightning protection to ensure 24/7 safe operation.

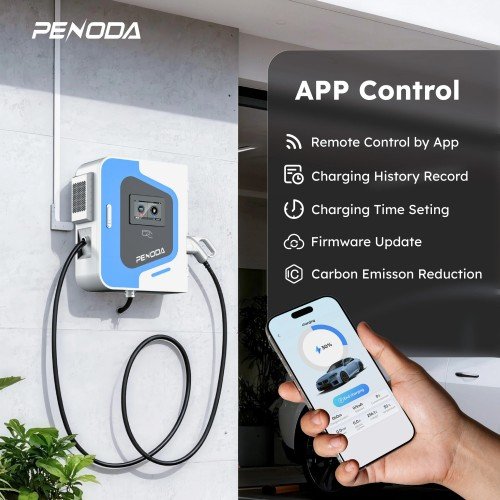

Control your business from anywhere. Our chargers are OCPP 1.6 compatible and feature integrated App control, allowing you to:
Set custom pricing and billing rates.
Monitor energy consumption in real-time.
Perform remote diagnostics and OTA (Over-the-Air) firmware updates.
Start with a single unit and expand into a multi-station hub as demand grows. The PDA series is designed for modular growth, making it easy to scale your charging network without a complete overhaul of your existing infrastructure.
Here is the polished English version of the PDA-20/30/40kW technical specifications, refined for a professional product datasheet or official website.
Model Series: PDA-20 / PDA-30 / PDA-40
Charging Mode: DC Fast Charging
Charging Connector: IEC 62196 CCS Type 2 (Tethered cable)
DC Power Output: 20kW / 30kW / 40kW (Constant power output)
Mounting Options: Wall-mounted or Pedestal-integrated
User Interface (HMI): Integrated Branding Logo LED & Multi-color Status Indicator
Input Power Supply: 230/400VAC ± 20%, 50/60Hz
Grid Compatibility: TN-S / TN-C-S / TT / IT supported
Safety Protections: Under Voltage (UVP), Over Voltage (OVP), Over Current (OCP), Relay Stuck detection, and Over Temperature protection
Energy Metering: High-precision metering with ±2% accuracy
Operating Temperature: -30°C to 55°C (Equipped with intelligent thermal derating mechanism)
Operating Altitude: Up to 2500m
Environmental Rating: IP55 (Weatherproof) and IK10 (High Impact Resistance)
Deployment: Certified for both Indoor and Outdoor all-weather operation
Dimensions: 650 x 450 x 150 mm
Net Weight: 65kg (Robust industrial-grade enclosure)
Connectivity: WiFi / 4G (Cellular) / Ethernet
User Authentication: RFID Card, Mobile App, and Plug & Charge
Load Management: Dynamic Load Balancing (DLB) managed via App
Backend Protocol: Fully compliant with OCPP 1.6 JSON
System Upgrades: OTA (Over-the-Air) firmware updates via App or OCPP backend
| Usage Locations | Public Charging Stations |
| Shopping Malls and Retail Areas | |
| Workplaces and Office Complexes | |
| Rest Stops and Highway Service Areas | |
| Residential Areas | |
| Commercial Fleets and Logistics Centers | |
| EV Charging Hubs | |
| Hotels and Tourist Destinations | |
| Public Parking Lots and Garages | |
| Car Dealerships and Showrooms | |
| Maximum Power | 20kw/42A 400VAC±15%；30kW/60A 400VAC±15%;40kW/80A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 650*450*150mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Balancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
1. High-Velocity DC Performance: PENODA’s DC series delivers professional-grade speed, slashing downtime by up to 80% compared to standard AC charging. It is the ideal solution for commercial hubs requiring rapid vehicle turnover.
2. Optimized Energy Conversion: Engineered for maximum efficiency, our chargers deliver 20kW, 30kW, or 40kW of direct-to-battery power, bypassing onboard conversion losses and lowering operational electricity costs.
3. Universal Connectivity: Featuring multi-standard connector options (CCS2/GBT), our stations provide seamless compatibility across a vast spectrum of global EV models and commercial fleets.
4. Intuitive HMI Experience: A high-visibility interface provides real-time analytics, including charging curves, power output, and instant fault diagnostics for a superior user experience.
5. Advanced Protection Suite: Our "Safety-First" architecture integrates multi-layer safeguards—including overcurrent, short-circuit, and surge protection—to ensure total security for the vehicle’s battery and the local grid.
6. Weather-Hardened Engineering: Rated for all-weather performance, the PDA series is housed in a rugged, climate-resistant enclosure designed to thrive in extreme temperatures and high-humidity environments.
7. Smart Cloud Integration: Out-of-the-box smart connectivity allows for remote monitoring, automated fault detection, and OTA (Over-the-Air) firmware updates, ensuring your hardware stays at the cutting edge.
PENODA maintains its industry-leading position through continuous investment in Industry 4.0 manufacturing. Our production facilities feature large-scale automated assembly lines equipped with:
Pneumatic Punching & HRT High-Speed Hydraulic Turret Presses: For extreme structural precision.
German Trumpf Fiber Laser Cutting: Ensuring high-precision processing of both copper and aluminum components.
Autonomous Welding Robots: Delivering consistent, high-strength structural integrity across every unit.
By combining these advanced technologies, PENODA guarantees that every EV charger meets the highest benchmarks for reliability, performance, and industrial-grade finish.
At PENODA, safety is not an option—it is a foundation.
Authorized Access Management: We provide five encrypted RFID startup cards with every unit, allowing operators to restrict usage to authorized personnel and prevent unauthorized energy consumption.
Instant Safety Response: For maximum site safety, every station is equipped with a high-visibility, manual Emergency Stop button, enabling immediate power isolation in critical situations.
The PDA series is encased in a robust metal housing engineered for high-impact resistance.
Dustproof & Waterproof: Fully sealed against rain, snow, and environmental pollutants.
Anti-Aging Enclosure: Treated with specialized coatings to prevent corrosion and UV degradation, ensuring a 10+ year service life in outdoor settings.
Our chargers do more than just provide power; they provide data. Through the PENODA Management Platform, service providers can:
Analyze energy consumption patterns.
Perform remote maintenance and "Soft-Reset" diagnostics.
Monitor fleet status in real-time, reducing the need for expensive on-site service calls.
As a future-focused manufacturer, PENODA is committed to a zero-carbon future. Our chargers are constructed using recyclable, eco-friendly materials and are Solar-Ready.
DC EV Charger (20kW / 30kW / 40kW)
Preparation & Current Capacity:
Verify the power supply supports 380VAC ± 15% (50/60Hz). Ensure the electrical infrastructure meets the following rated input current requirements:
20kW Model: Minimum 37A
30kW Model: Minimum 60A
40kW Model: Minimum 80A
Mounting:
Secure the charger to a load-bearing wall using the provided backplate or install it on a dedicated floor-mount pedestal.
Electrical Wiring:
With the main power OFF, connect the input cables (L1/L2/L3/N/PE). Ensure all terminals are tightened securely and the PE (Earth) wire is solidly grounded.
Network Configuration:
Connect the unit via WiFi, 4G, or Ethernet to enable OCPP 1.6J backend management and APP control features.
Commissioning:
Ensure the Emergency Stop button is released. Switch on the circuit breaker. Once the LED status indicates "Ready," initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified electrician in accordance with local electrical codes and safety regulations.
Level 2 Chargers: About 7.2 kW to 19.2 kW, suitable for workplaces and public areas where vehicles are parked for longer durations.DC Fast Chargers (Level 3): Usually between 50 kW to 350 kW, used in locations needing quick charging, like highway stops and busy urban areas.Ultra-Fast Chargers: 350 kW and higher, for cutting-edge applications and high-traffic areas.
The profitability of a commercial EV charging station can vary widely depending on several factors, including location, pricing strategy, utilization rates, operational costs, and local regulations.Given these variables, it’s challenging to provide a specific profit figure as it can vary greatly. Successful charging station operators often conduct thorough market analysis, manage operational efficiency, and adapt to evolving EV adoption and regulatory landscapes to optimize profitability.
Commercial EV chargers include Level 2 chargers, which range from 7.2 kW to 19.2 kW and are suitable for longer parking durations, and Level 3 chargers (DC fast chargers), starting at 50 kW and going up to 350 kW or higher for rapid charging needs.
Installation requirements include sufficient electrical capacity, compliance with local regulations and building codes, access to parking spaces for EV users, and possibly upgrades to the electrical infrastructure to support the charger’s power demands.
Installing a commercial EV charger can attract EV-driving customers, enhance property value, support sustainability goals, and provide an additional revenue stream through charging fees or increased customer foot traffic.
