Engineered for ultimate reliability and high-speed performance, the PDA Commercial DC Fast Charger Series (available in 20kW, 30kW, 40kW, and 60kW) is the definitive power solution for modern businesses.
Combining a compact footprint with industrial-grade resilience, this station is meticulously designed to support continuous, heavy-duty operations. Outfitted with universal plug standards, a ruggedized exterior, and intelligent wireless management (WiFi/4G/App), it ensures an effortless and profitable charging experience for commercial fleets, luxury hospitality venues, and demanding industrial factories.
Commercial EV Charger
OCPP1.6J+APP+4G+WIFI+LAN Port
CCS2/CCS1/GBT
Dynamic Load Balancing
RFID+NFC
4G/WIFI/LAN Port
IP55 IK10
E-stop button
European Standard (CE)
Top DC AC EV Charger Factory
Compact Powerhouse: Smart Charging Built for Commercial Excellence
Step into the next generation of electric vehicle infrastructure. Unlike standard consumer chargers, our commercial DC fast chargers are built to deliver rapid, consistent power under the most demanding conditions. Whether you are seeking a highly efficient 20kW or 30kW unit for overnight fleet depots or a powerful 60kW station for quick-turnaround retail plazas, this series offers scalable solutions that perfectly align with your business objectives.
Powered by advanced data calculation and an optimized heat-dissipation design, this charger guarantees low-noise operation while minimizing grid strain. It seamlessly bridges the gap between robust physical durability and cutting-edge software intelligence, making it the most dependable asset for your commercial parking facility.
Here is the polished English version of the PDA-20/30/40kW technical specifications, refined for a professional product datasheet or official website.
Model Series: PDA-20 / PDA-30 / PDA-40
Charging Mode: DC Fast Charging
Charging Connector: IEC 62196 CCS Type 2 (Tethered cable)
DC Power Output: 20kW / 30kW / 40kW (Constant power output)
Mounting Options: Wall-mounted or Pedestal-integrated

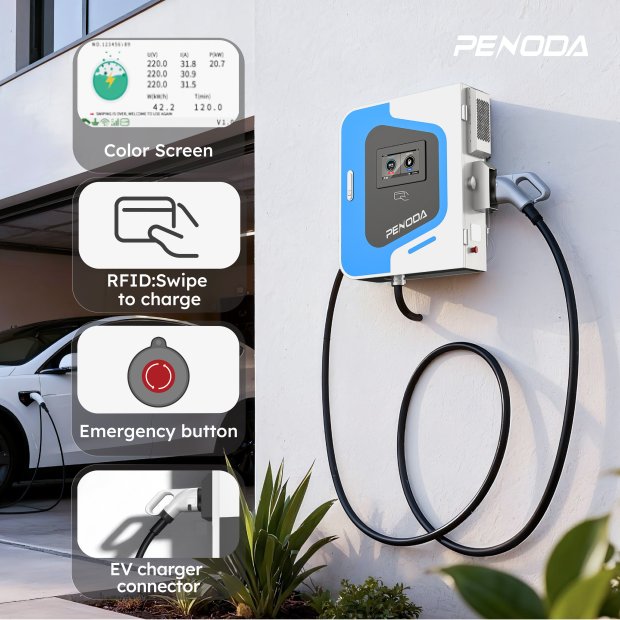

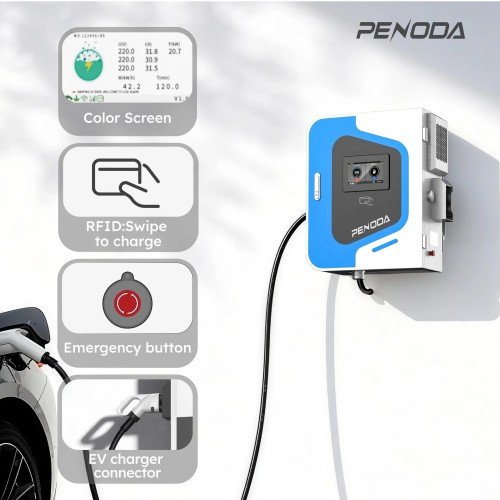

User Interface (HMI): Integrated Branding Logo LED & Multi-color Status Indicator
Input Power Supply: 230/400VAC ± 20%, 50/60Hz
Grid Compatibility: TN-S / TN-C-S / TT / IT supported
Safety Protections: Under Voltage (UVP), Over Voltage (OVP), Over Current (OCP), Relay Stuck detection, and Over Temperature protection
Energy Metering: High-precision metering with ±2% accuracy
Operating Temperature: -30°C to 55°C (Equipped with intelligent thermal derating mechanism)
Operating Altitude: Up to 2500m
Environmental Rating: IP55 (Weatherproof) and IK10 (High Impact Resistance)
Deployment: Certified for both Indoor and Outdoor all-weather operation
Dimensions: 650 x 450 x 150 mm
Net Weight: 65kg (Robust industrial-grade enclosure)
Connectivity: WiFi / 4G (Cellular) / Ethernet
User Authentication: RFID Card, Mobile App, and Plug & Charge
Load Management: Dynamic Load Balancing (DLB) managed via App
Backend Protocol: Fully compliant with OCPP 1.6 JSON
System Upgrades: OTA (Over-the-Air) firmware updates via App or OCPP backend
| Usage Locations | Public Charging Stations |
| Shopping Malls and Retail Areas | |
| Workplaces and Office Complexes | |
| Rest Stops and Highway Service Areas | |
| Residential Areas | |
| Commercial Fleets and Logistics Centers | |
| EV Charging Hubs | |
| Hotels and Tourist Destinations | |
| Public Parking Lots and Garages | |
| Car Dealerships and Showrooms | |
| Maximum Power | 20kw/42A 400VAC±15%；30kW/60A 400VAC±15%;40kW/80A 400VAC±15% |
| Connector | CCS1/CCS2/GBT |
| Dimension (H*W*D) | 650*450*150mm |
| Display | LED 7″ |
| Installation | Wall-mount |
| Certification | CE |
| Ingress Protection | IP55,IK10 |
| Dynamic Load Balancing | Solar Charging |
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.

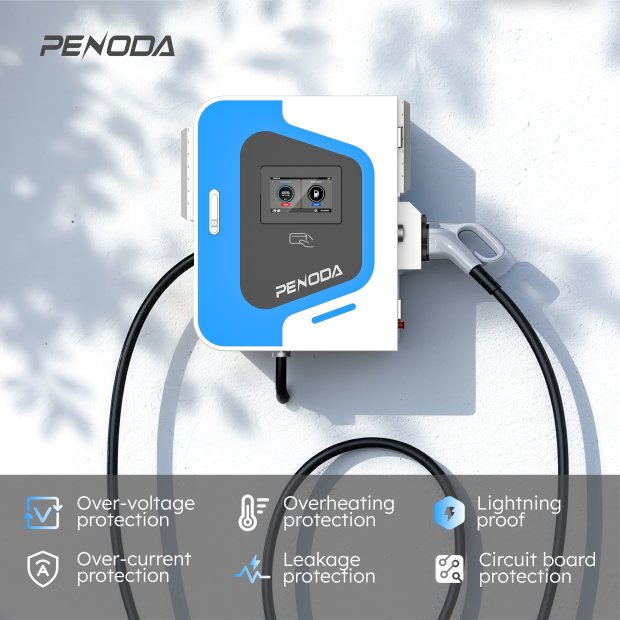

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Core Advantages & Technical Superiority
Ultra-Rugged Hard Shell & Durable Hardware: Built to survive extreme environments. Encased in an exceptionally hard and weather-resistant shell (IP55/IK10), the heavy-duty internal hardware is specifically engineered to withstand physical impacts, extreme temperatures, and the rigorous demands of industrial factories and high-traffic commercial zones.

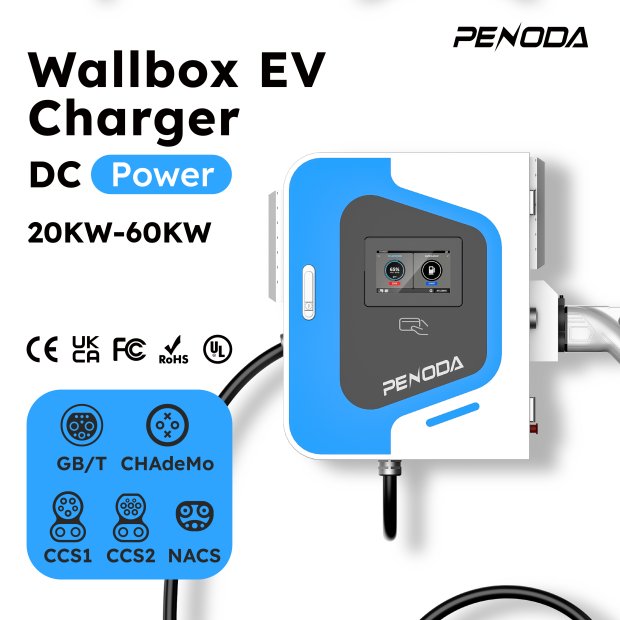

Universal Plug Standards: Never worry about vehicle compatibility. We provide comprehensive and customizable plug standards (including CCS1, CCS2, CHAdeMO, and GB/T). This guarantees that any EV brand visiting your property can connect and charge effortlessly.

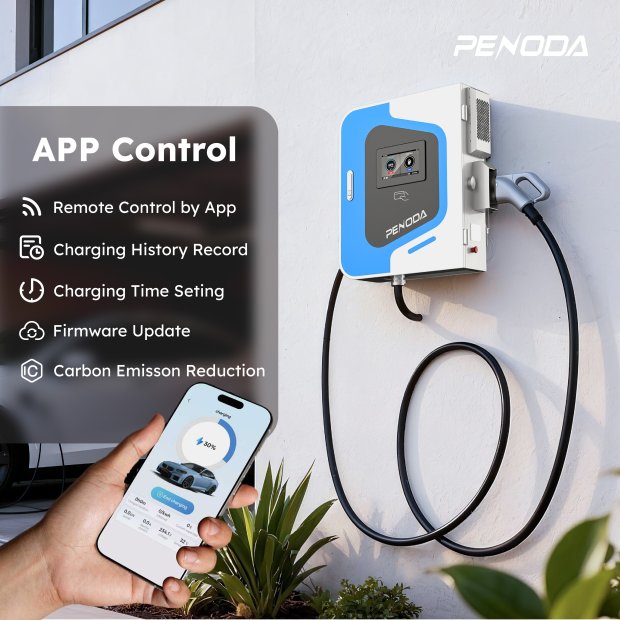

Intelligent Connectivity (WiFi, 4G & APP): Complete operational control is at your fingertips. Integrated with advanced WiFi, 4G, and Ethernet modules, facility managers can monitor real-time charging data, adjust pricing via the OCPP 1.6J backend, and offer users a frictionless, self-service payment experience through a dedicated smart App or RFID card.
Backed by Our Own R&D Team: We own the core technology. Designed and continuously optimized by our dedicated in-house R&D team, this charger benefits from superior software stability, dynamic power dispatching, and immediate over-the-air (OTA) updates—offering unmatched reliability compared to standard assembled models.
Comprehensive Safety & Low-Noise Operation: Inspired by top-tier industrial safety standards, the unit features advanced thermal management for silent, highly efficient heat dissipation. It is fully protected against voltage fluctuations, current leakage, and lightning surges.
Targeted Commercial Applications
Commercial Fleets: Empower your logistics and delivery operations with robust 30kW and 40kW options. Fleet managers benefit from precise App-based monitoring, while the durable hardware withstands the continuous, high-frequency charging cycles of commercial vehicles.
Hotels & Premium Hospitality: Provide a high-end charging amenity for your guests. The low-noise operation and universal plug standards ensure every visitor can plug in safely overnight, instantly elevating your property's value and guest satisfaction.
Factories & Industrial Hubs: Deploy a truly resilient power solution for workplace charging. The hardened exterior and durable internal components are purpose-built to survive the harsh realities and demanding conditions of industrial manufacturing zones.
Retail Plazas & Office Buildings: Generate passive income and attract high-value EV drivers with a seamless, App-controlled charging experience that integrates flawlessly into your existing parking infrastructure.
DC EV Charger (20kW / 30kW / 40kW)
Preparation & Current Capacity:
Verify the power supply supports 380VAC ± 15% (50/60Hz). Ensure the electrical infrastructure meets the following rated input current requirements:
20kW Model: Minimum 37A
30kW Model: Minimum 60A
40kW Model: Minimum 80A
Mounting:
Secure the charger to a load-bearing wall using the provided backplate or install it on a dedicated floor-mount pedestal.
Electrical Wiring:
With the main power OFF, connect the input cables (L1/L2/L3/N/PE). Ensure all terminals are tightened securely and the PE (Earth) wire is solidly grounded.
Network Configuration:
Connect the unit via WiFi, 4G, or Ethernet to enable OCPP 1.6J backend management and APP control features.
Commissioning:
Ensure the Emergency Stop button is released. Switch on the circuit breaker. Once the LED status indicates "Ready," initiate a test charge using an RFID card or the mobile APP.
WARNING: Installation must be performed by a certified electrician in accordance with local electrical codes and safety regulations.
We provide highly versatile 20kW, 30kW, 40kW, and 60kW DC fast charging options. These scalable capacities are perfectly engineered for steady overnight charging at fleet depots or rapid top-ups at premium hotel parking facilities.
Yes, it is fully protected by an ultra-rugged hard shell with IP55 and IK10 ratings. The heavy-duty, durable hardware inside is designed to withstand severe weather, temperature fluctuations, and the rigorous demands of industrial factories and open-air parking lots.
Absolutely. To guarantee maximum utility for your commercial property, we offer universal plug standards. You can configure the unit with CCS1, CCS2, CHAdeMO, and GB/T connectors, making it fully compatible with all modern EVs visiting your site.
The station features intelligent connectivity via integrated WiFi, 4G, and Ethernet modules. Utilizing the OCPP 1.6J backend, managers can track real-time data and adjust pricing remotely. Simultaneously, drivers enjoy a seamless, self-service experience through a dedicated smart APP or standard RFID cards.
This unit is entirely designed and optimized by our own in-house R&D team. This direct engineering oversight guarantees superior software stability, exceptionally low-noise operation, rapid over-the-air (OTA) updates, and direct technical support tailored to your commercial fleet or hospitality business.
